PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
EAU23251
Lubricating the rear
suspension
The pivoting points of the rear sus-
pension must be lubricated by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
EAUM1651
Lubricating the swingarm
pivots

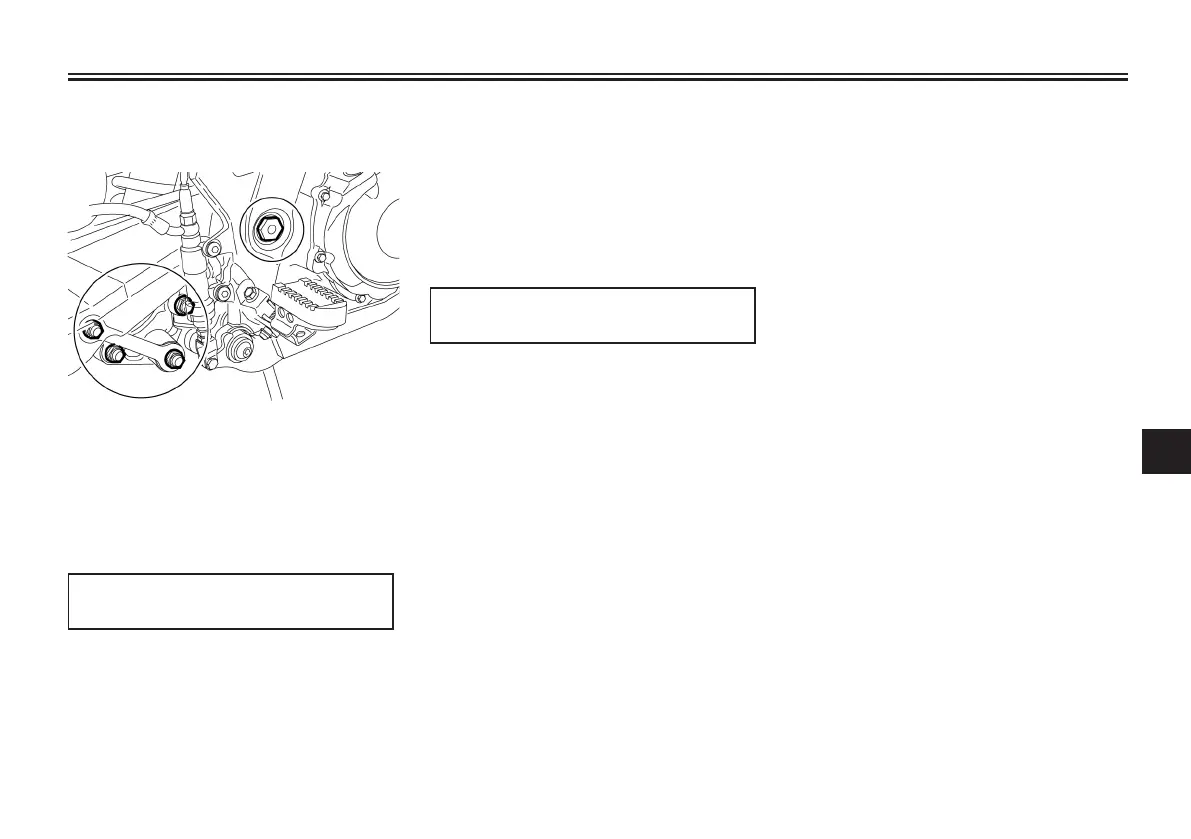

The swingarm pivots must be lubrica-
ted by a Yamaha dealer at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
EAU23272
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition
1. Check the inner tubes for scrat-
ches, damage and excessive oil
leakage.
To check the operation
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over. [EWA10751]
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
56P-F8199-E0 30/6/10 09:24 Página 73

Yamaha TENERE XT660Z Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Wet Weight	206 kg
Fuel Tank Capacity	23 liters
Lubrication System	Dry sump
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Wheel Base	1, 505 mm
Minimum Ground Clearance	260 mm
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
Front Suspension	Telescopic fork
Rear Suspension	link suspension
Front Brake	Dual disc
Rear Brake	Single disc
Maximum Power	35.0 kW (48PS) @ 6, 000 rpm
