SPEC

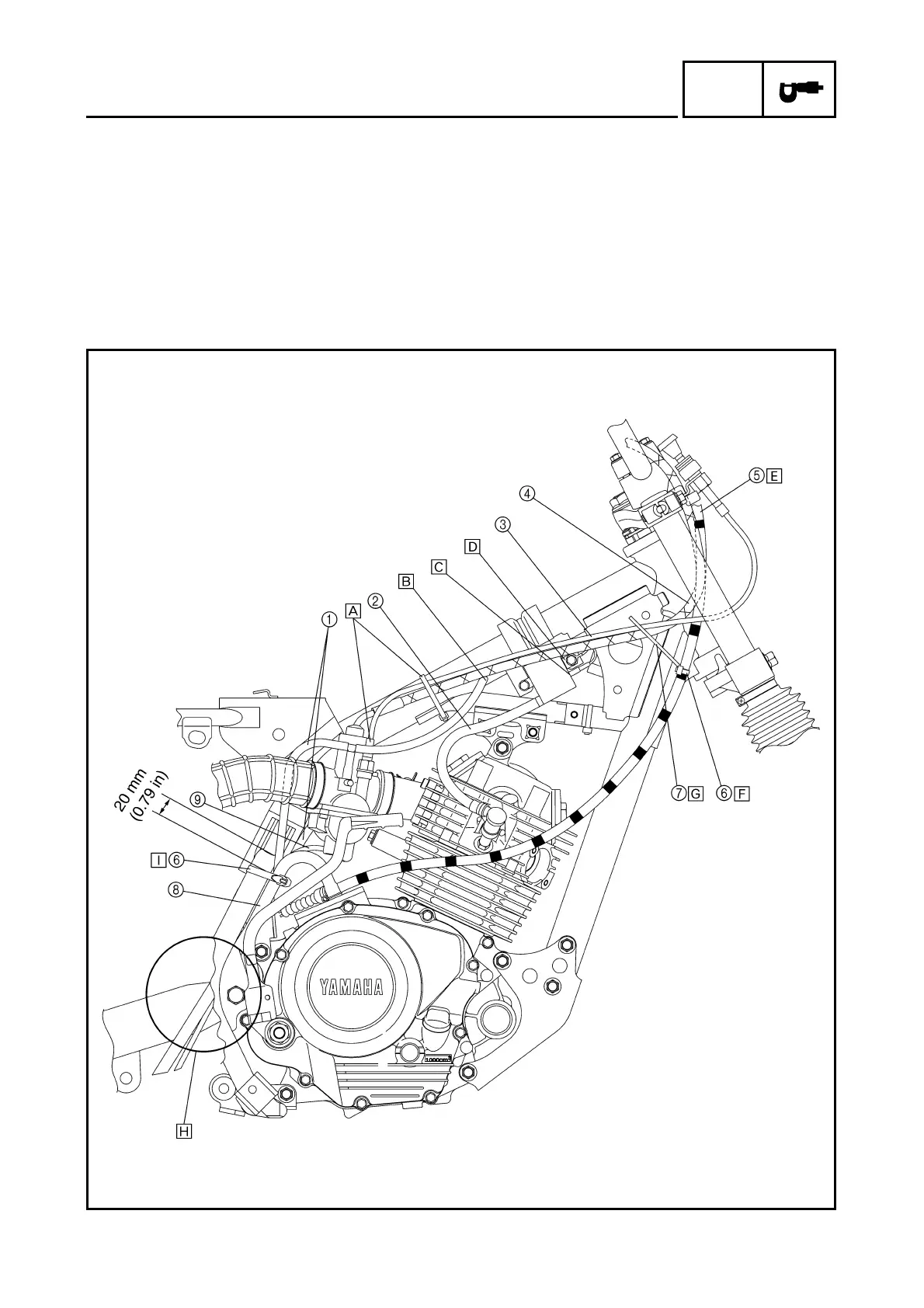

CABLE ROUTING DIAGRAM
1 Air vent hose
2 Spark plug lead
3 Starter cable
4 Throttle cable
5 Clutch cable
6 Clamp
7 Cable guide
8 Engine oil breather hose
9 Overflow hose
Å After clamping the starter cable, push it against the starter plunger.
ı Put the tip of the air vent hose into the main pipe.
Ç Install the primary coil terminal (orange) to the ignition coil.
Î Fasten the ground lead together with the ignition coil.
‰ Pass the clutch cable on the inside of the throttle and starter cable.
Ï Clamp the clutch cable with the paint in the cable guide bottom recess.
Ì Pass the throttle cable and starter cable into the cable guide.
Ó Pass the engine oil breather hose and overflow hose between the right
half of the swingarm and pillar tube.
È Clamp the engine oil breather hose, overflow hose and air vent hose to
2 clicks.
