5 - 62
CHAS

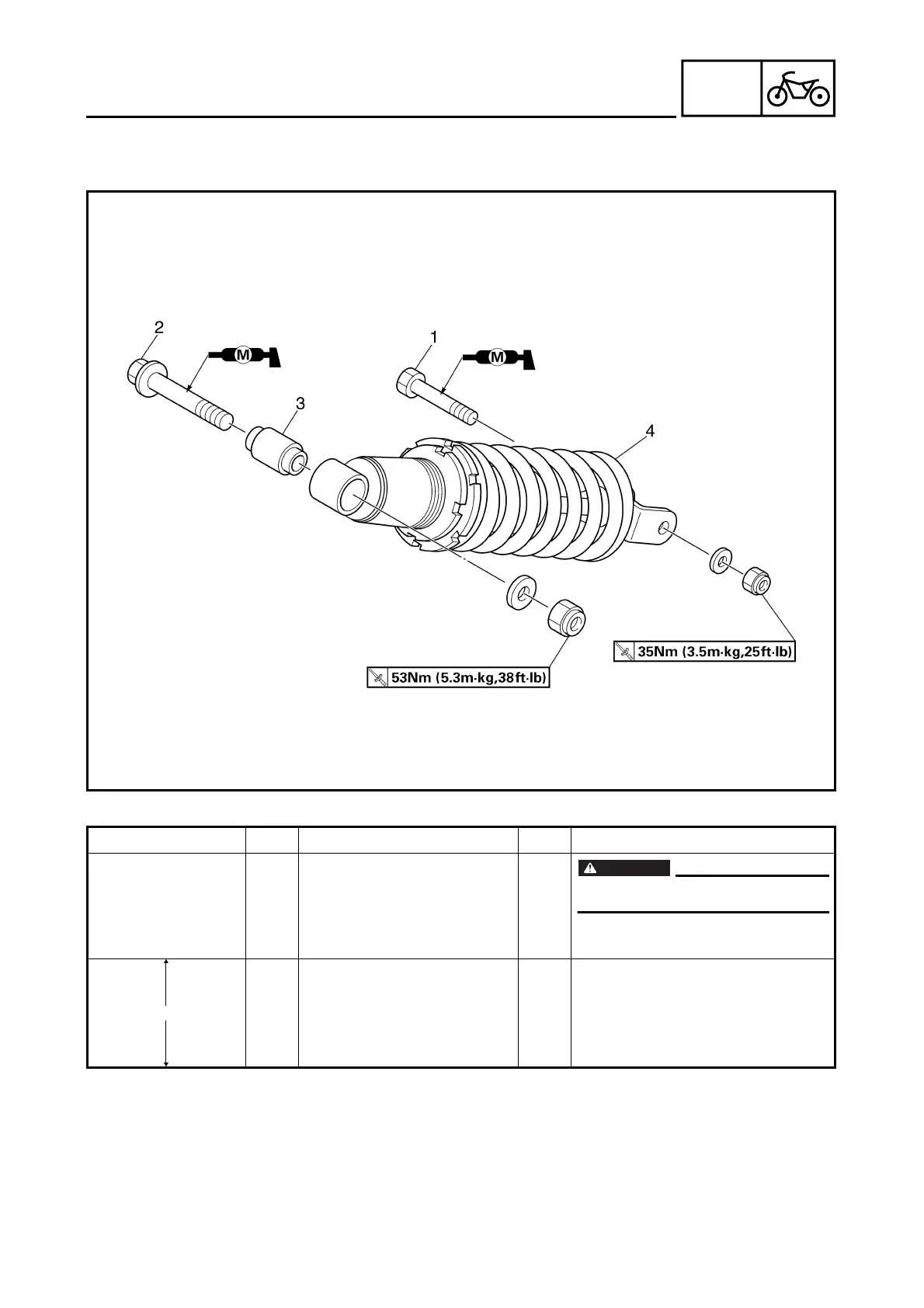

REAR SHOCK ABSORBER ASSEMBLY
EC580000
REAR SHOCK ABSORBER ASSEMBLY
Extent of removal: 1 Rear shock absorber assembly removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removal
REAR SHOCK ABSORBER
ASSEMBLY REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING
Support the machine securely so there is no
danger of it falling over.
Seat and side covers Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section.
1 Bolt (rear shock absorber assem-
bly-relay arm)
1 Hold the swingarm.
2 Bolt (rear shock absorber assem-
bly-frame)
1
3 Bushing 1 Refer to “REMOVAL POINTS”.
4 Rear shock absorber assembly 1
1
