4 - 32
ENG

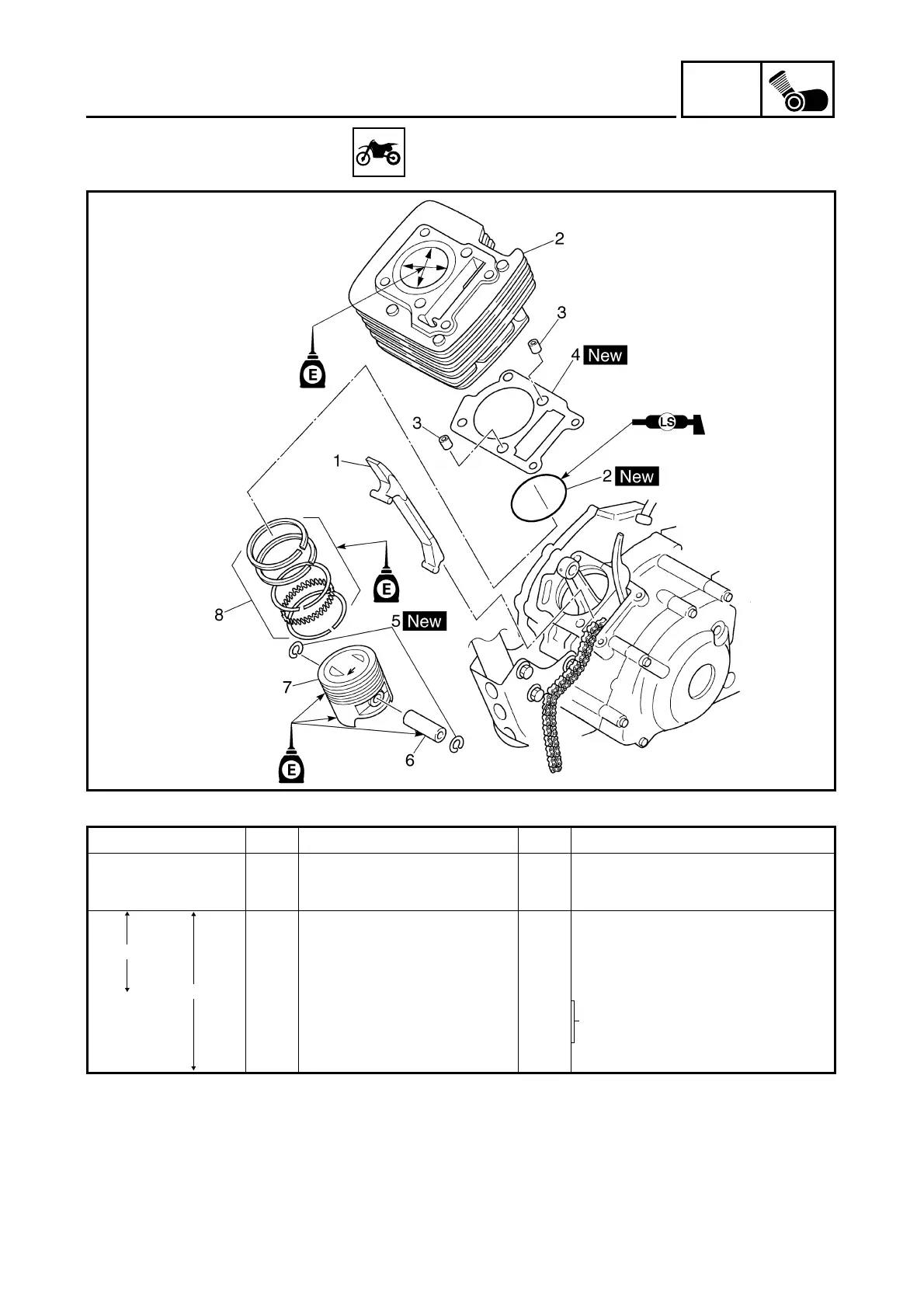

CYLINDER AND PISTON
CYLINDER AND PISTON
Extent of removal: 1 Cylinder removal 2 Piston removal
Extent of removal Order Part name Q’ty Remarks
CYLINDER AND PISTON
REMOVAL
Preparation for removal Cylinder head Refer to “CYLINDER HEAD” section.
1 Exhaust timing chain guide 1
2 Cylinder/O-ring 1/1
3 Dowel pin 2
4 Gasket 1
5 Piston pin clip 2
Refer to “REMOVAL POINTS”.6 Piston pin 1
7 Piston 1
8
Piston ring set
1
Refer to “REMOVAL POINTS”.
1
2
