Yamaha VF175 - Procedure for Tilting down

Operation
67
more detailed information, see page
71.
[ECM01642]
4. Once the outboard motor is supported
with the tilt support lever, push the “ ”
(down) side of the power trim and tilt
switch to retract the trim rods. NOTICE:
Make sure that the trim rods retract
completely during mooring. This pro-
tects the rods from marine growth and
corrosion, which could damage the
power trim and tilt mechanism.
[ECM00254]
EMU46200

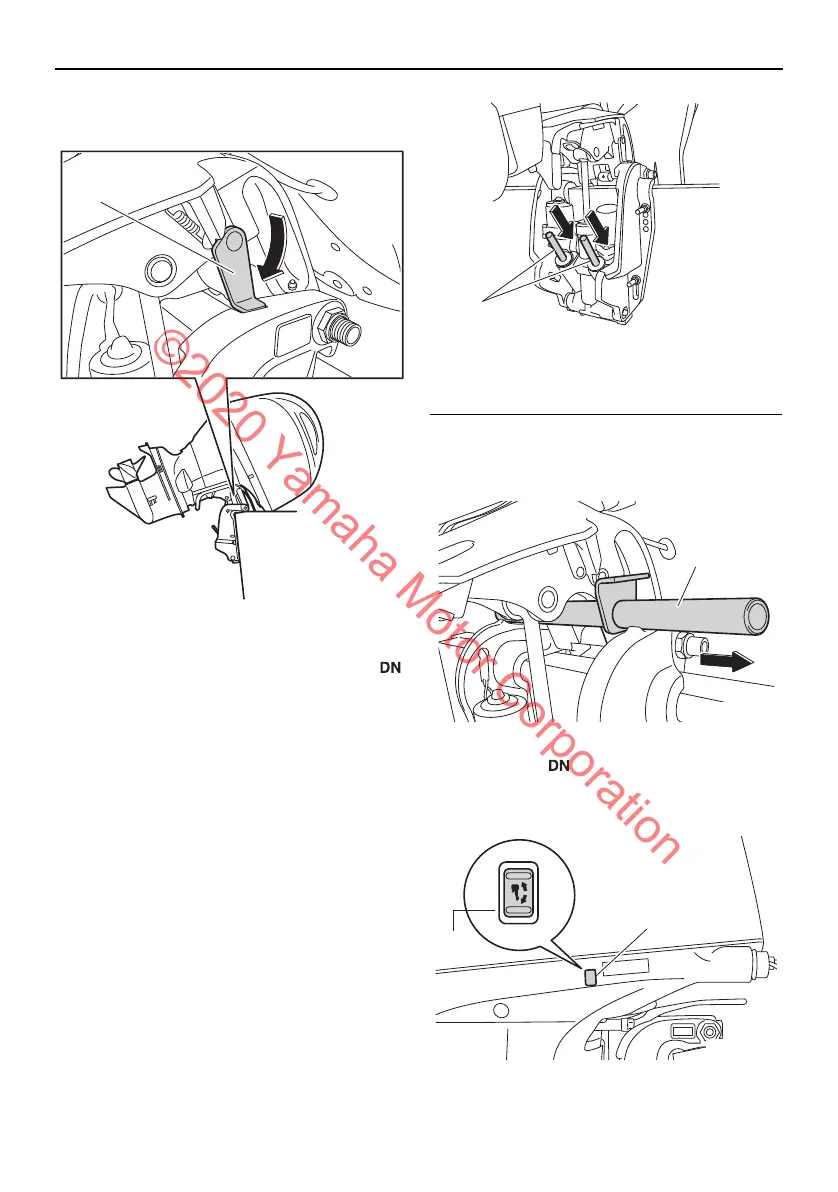

Procedure for tilting down
Tilting down when using the tilt support shaft
1. If using the tilt support shaft, fully tilt the
outboard motor up, and then remove the
tilt support shaft.
2. Push the “ ” (down) side of the power
trim and tilt switch to tilt the outboard
motor down.
1. Tilt support lever
1
ZMU07744
1. Trim rod
1. Tilt support shaft
1. Power trim and tilt switch
1
ZMU07764
1
ZMU08019
1
DN
ZMU07771
U6EH36E0.book Page 67 Monday, December 10, 2018 9:33 AM
