VF150LA, VF175LA
VF150XA, VF175XA
3. Remove the propeller, spacer (if
equipped), and thrust washer.
EMU46221
Installing propeller
NOTICE
ECM00502
Make sure to use a new cotter pin and
bend the ends over securely. Otherwise,
the propeller could come off during oper-
ation and be lost.
1. Apply Yamalube Marine Grease to the
propeller shaft.
2. Install the thrust washer, spacer (if
equipped), and propeller on the propeller
shaft. NOTICE: Make sure to install the
thrust washer before installing the
propeller. Otherwise, the lower case
and propeller boss could be damaged.
[ECM01882]
3. Install the spacer, washer, and propeller
nut. Tighten the propeller nut to the
specified torque.

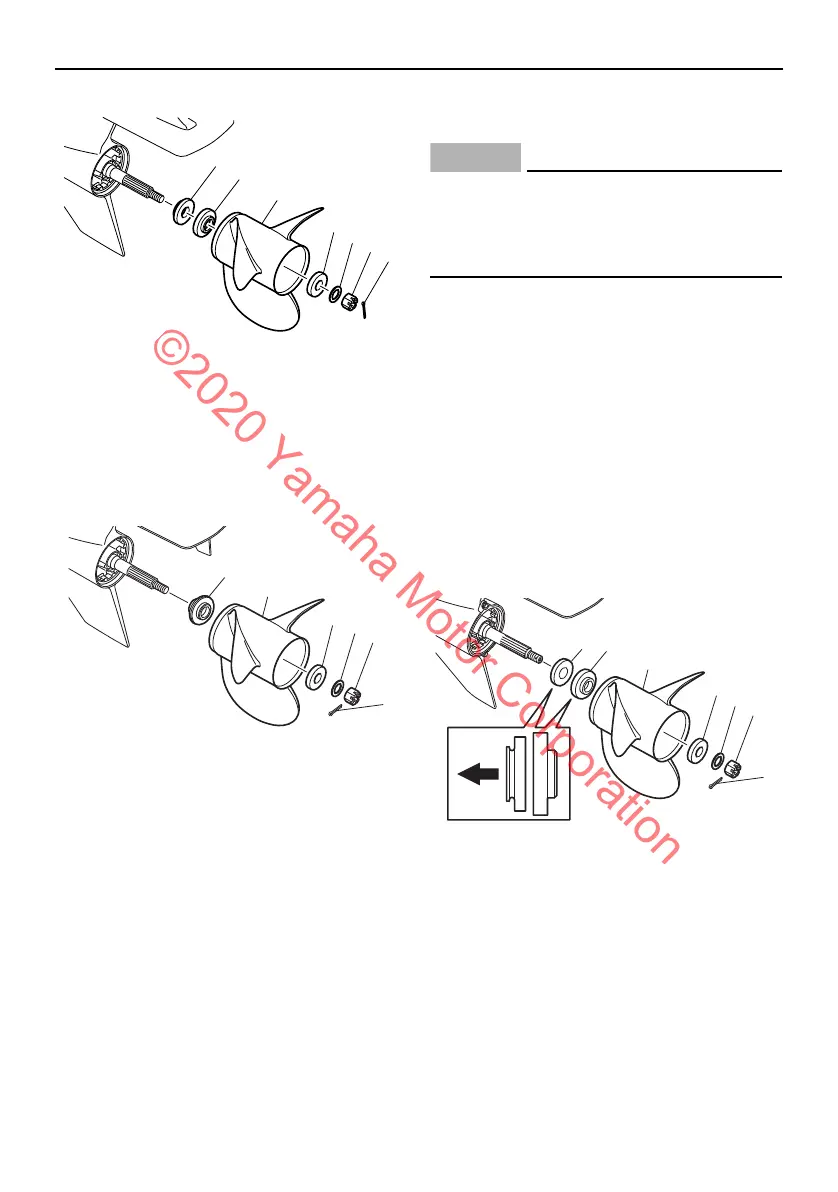

VF150LA, VF175LA
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Spacer
7. Thrust washer
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Thrust washer
7
6
5
4
3
2
1
ZMU06955
ZMU07900
4
3
2
1
5
6
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Spacer
7. Thrust washer
4
3
2
1
5
6
7
ZMU08189
