TIP:
 The free accelerator button can only be
pushed when the remote control lever is in
the neutral position.
 After the button is pushed, the throttle be-
gins to open after the remote control lever
is moved at least 35°.
 After using the free accelerator, return the
remote control lever to the neutral position.
The free accelerator button will return auto-
matically to its set position. The remote
control will then engage forward and re-
verse normally.
EMU40606
Throttle friction adjuster
The throttle friction adjuster can be used to
adjust the resistance to movement of the re-
mote control lever, and can be set according
to operator preference. Adjust the throttle
friction according to the following procedure.
1. Remove the cap.
2. To increase resistance, turn the adjuster
clockwise. To decrease resistance, turn
the adjuster counterclockwise.
WARNING! Do not overtighten the fric-
tion adjuster. If there is too much re-
sistance, it could be difficult to move
the remote control lever, which could
result in an accident.
[EWM02581]

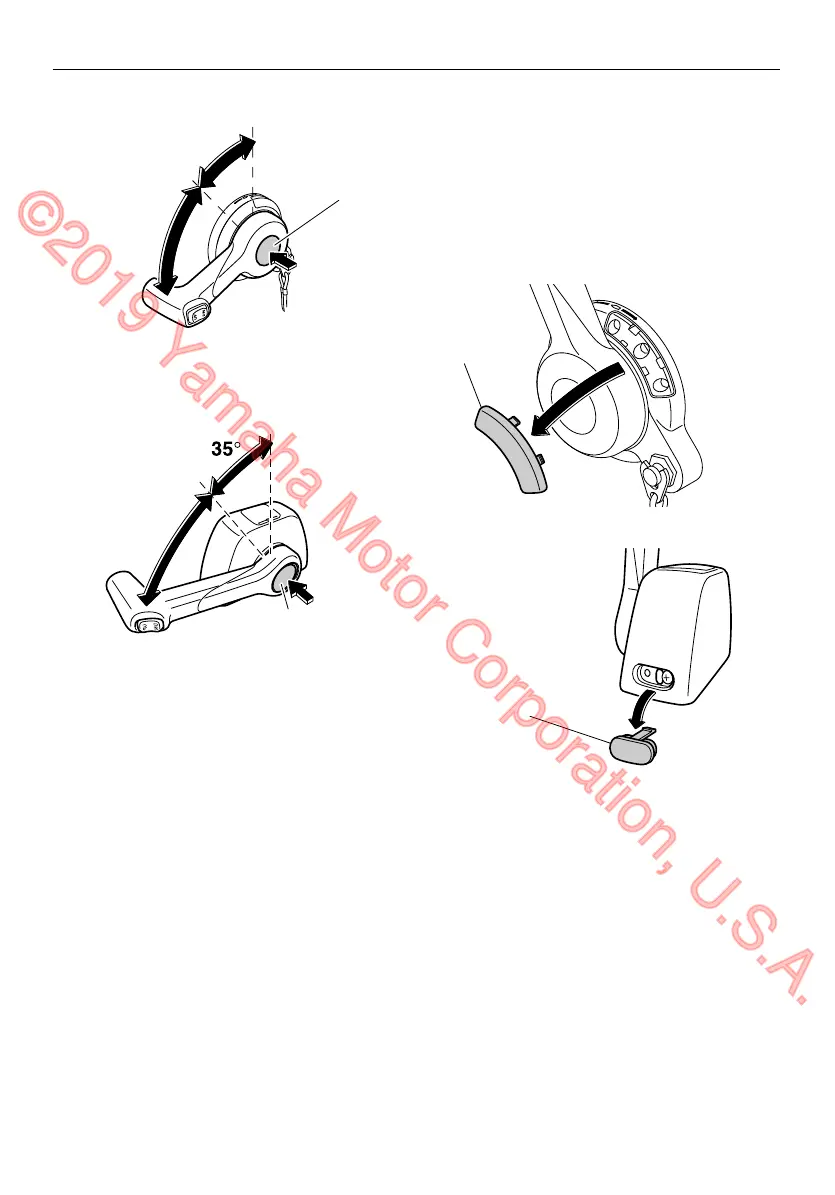

1. Free accelerator button
2. Fully closed
3. Fully open
1. Free accelerator button
2. Fully closed
3. Fully open
ZMU07028
1
N
2
3
35˚
ZMU06903
3
1
2
N
1. Cap
1. Cap
ZMU07025
1
ZMU06904
1
