Trouble Recovery
84
A. Have serviced by a Yamaha dealer.
Engine vibrates excessively.
Q. Is propeller damaged?
A. Have propeller repaired or replaced.
Q. Is propeller shaft damaged?
A. Have serviced by a Yamaha dealer.
Q. Are weeds or other foreign material tan-
gled on propeller?
A. Remove and clean propeller.
Q. Are outboard motor mounting bolts loose?
A. Tighten bolts or have serviced by a
Yamaha dealer.
Q. Is steering pivot loose or damaged?
A. Have serviced by a Yamaha dealer.
EMU29434
Temporary action in emergen-
cy
EMU29442

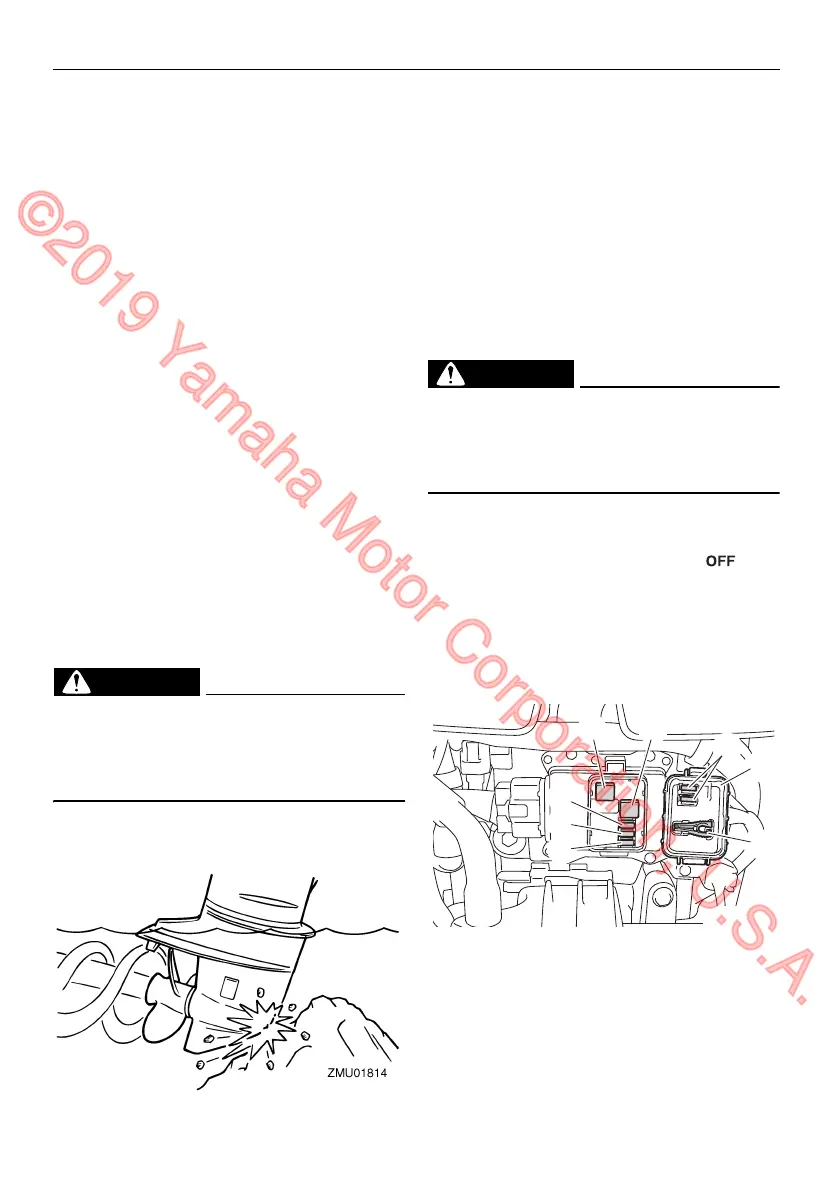

Impact damage
WARNING
EWM00871
The outboard motor can be seriously
damaged by a collision while operating or
trailering. Damage could make the out-
board motor unsafe to operate.
If the outboard motor hits an object in the wa-
ter, follow the procedure below.
1. Stop the engine immediately.
2. Check the control system and all compo-
nents for damage. Also, check the boat
for damage.
3. Whether damage is found or not, return
to the nearest harbor slowly and careful-
ly.
4. Have a Yamaha dealer check the out-
board motor before operating it again.
EMU46602
Replacing fuse
WARNING
EWM00632
Substituting an incorrect fuse or a piece of
wire could allow excessive current flow.
This could cause electric system damage
and a fire hazard.
If a fuse has blown, replace the fuse accord-
ing to the following procedure.
1. Turn the main switch to the “ ” (off)
position.
2. Remove the fuse box cover.
3. Remove the fuse with a fuse puller, and
then replace it with a spare one of the
proper amperage.
1. Fuse box cover
2. Fuse puller
3. Engine control unit / ignition coil / electric
fuel pump / fuel injector / vapor shut-off
valve fuse (20 A)
4. Main switch / PTT switch fuse (20 A)
5. Starter relay fuse (30 A)
1
76
5
4
3
8
2
ZMU08703
