B4M-F1696-01
WARNING
•
Improper tire pressure or overloading this vehicle may
cause severe injury or death from loss of control or
rollover.
•
Never set or allow tire pressure to be below the minimum.
Tire may dislodge from rim.
• VEHICLE LOAD of 0 lb (0 kg) ~ 441 lbs (200 kg)
Recommended: FRONT:
REAR:
Minimum: FRONT:
REAR:
14 psi
14 psi
13 psi
13 psi
(100 kPa)
(100 kPa)
(90 kPa)
(90 kPa)
*
Vehicle load is weight of operator, passenger,
accessories, cargo, and (if applicable) trailer tongue
weight. Do not exceed maximum vehicle load.
Gross Vehicle Weight Rating: 3174 lbs (1440 kg)
maximum including vehicle, weight of operator,
passengers, accessories, cargo, and (if applicable)
trailer tongue weight.
OPERATING TIRE PRESSURE: With tires cold, set as follows.
•
VEHICLE LOAD of 441 lbs (200 kg) ~ 1256 lbs (570 kg)
Recommended: FRONT:
REAR:
Minimum: FRONT:
REAR:
14 psi
32 psi
13 psi
30 psi
(100 kPa)
(220 kPa)
(90 kPa)
(210 kPa)
B4J-F1684-00

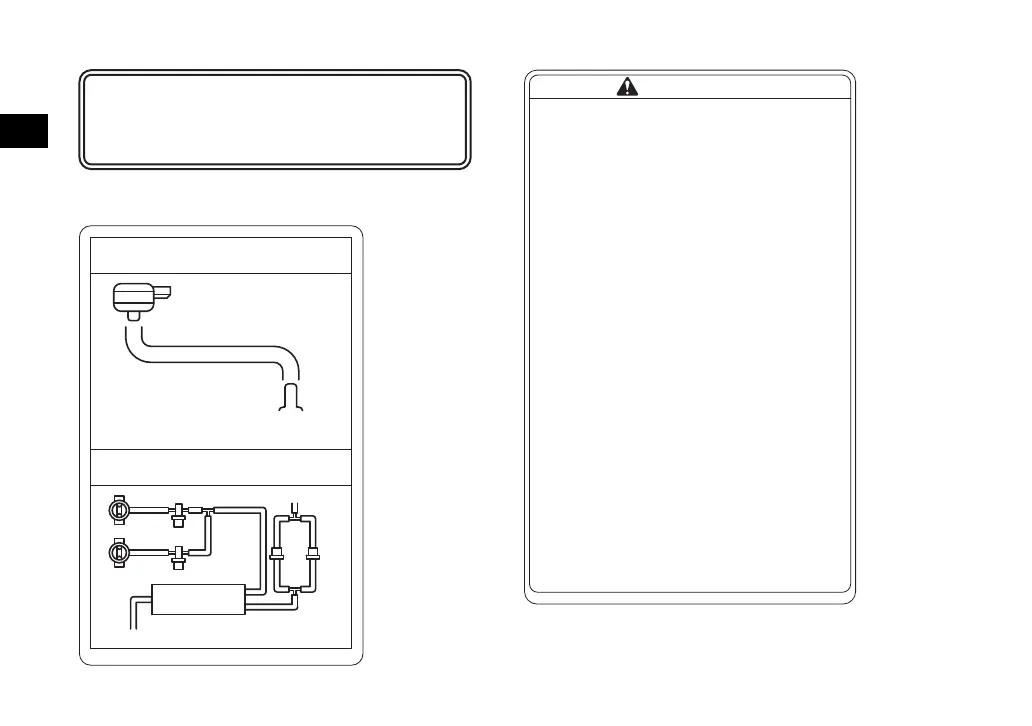

INTAKE MANIFOLD
#1
PRESS. SENSOR
THROTTLE BODY
SOLENOID VALVE
#1
#2
ROLL
OVER
VALVE
CANISTER
TO ATMOSPHERE
FROM FUEL TANK
VACUUM HOSE ROUTING
EMISSION HOSE ROUTING
7
YAMAHA MOTOR CORPORATION U.S.A. certifies this ROV
complies with the American National Standard for Recreational
Off-Highway Vehicles, ANSI/ROHVA-1-2016 Standard.
Date of manufacture **/**
B4J-F4163-00
8
9
