Yamaha XP500 2002 - Arrangement of the Electrical Components; And Couplers

–26–

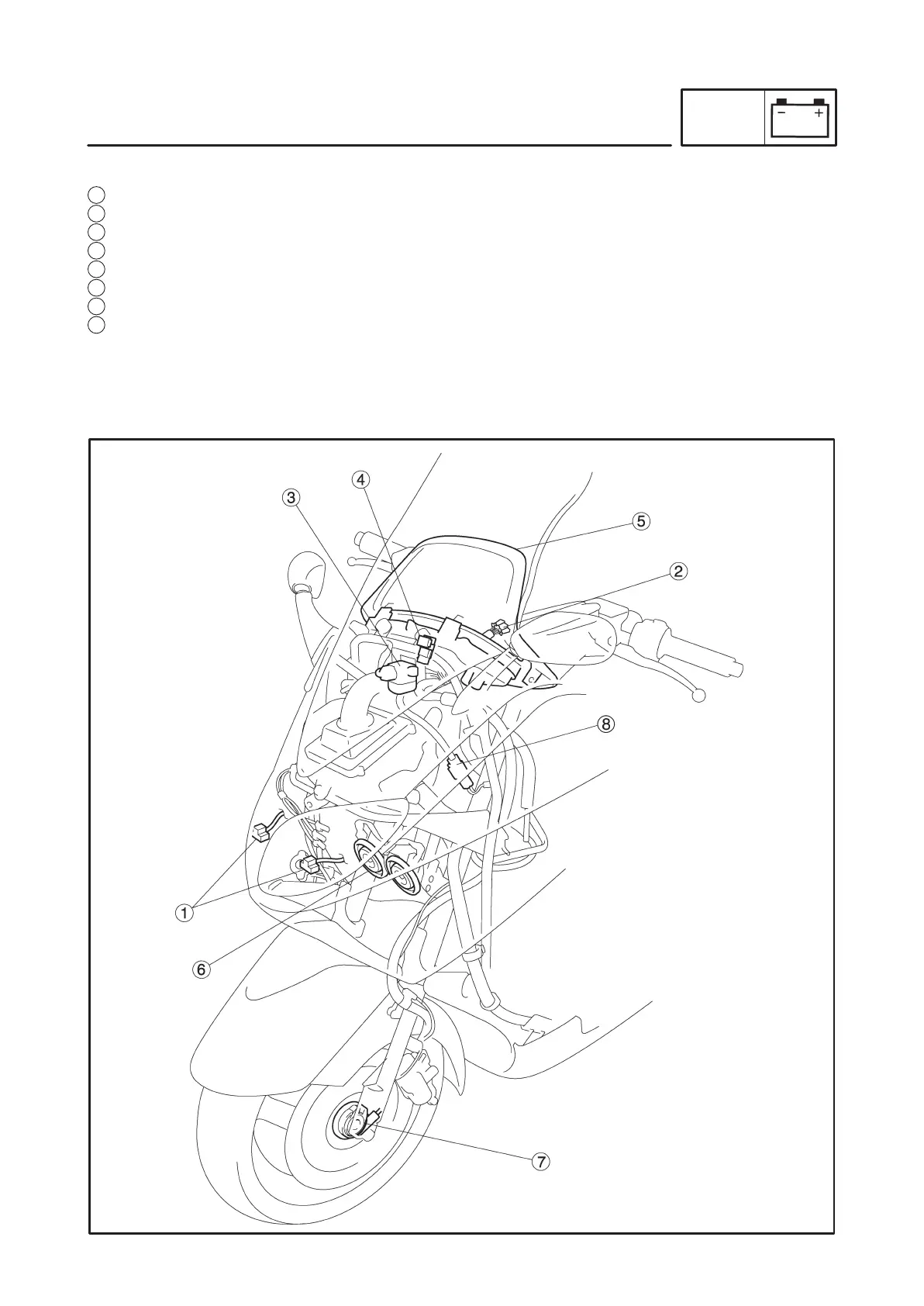

ARRANGEMENT OF THE ELECTRICAL
COMPONENTS AND COUPLERS
ELEC
1 Headlight couplers
2 Handlebar switch couplers
3 Lean angle cut-off switch
4 Hazard relay (for EUR)
5 Meter
6 Horns
7 Speed sensor
8 Speed sensor coupler
ARRANGEMENT OF THE ELECTRICAL COMPONENTS AND COUPLERS
