–27–

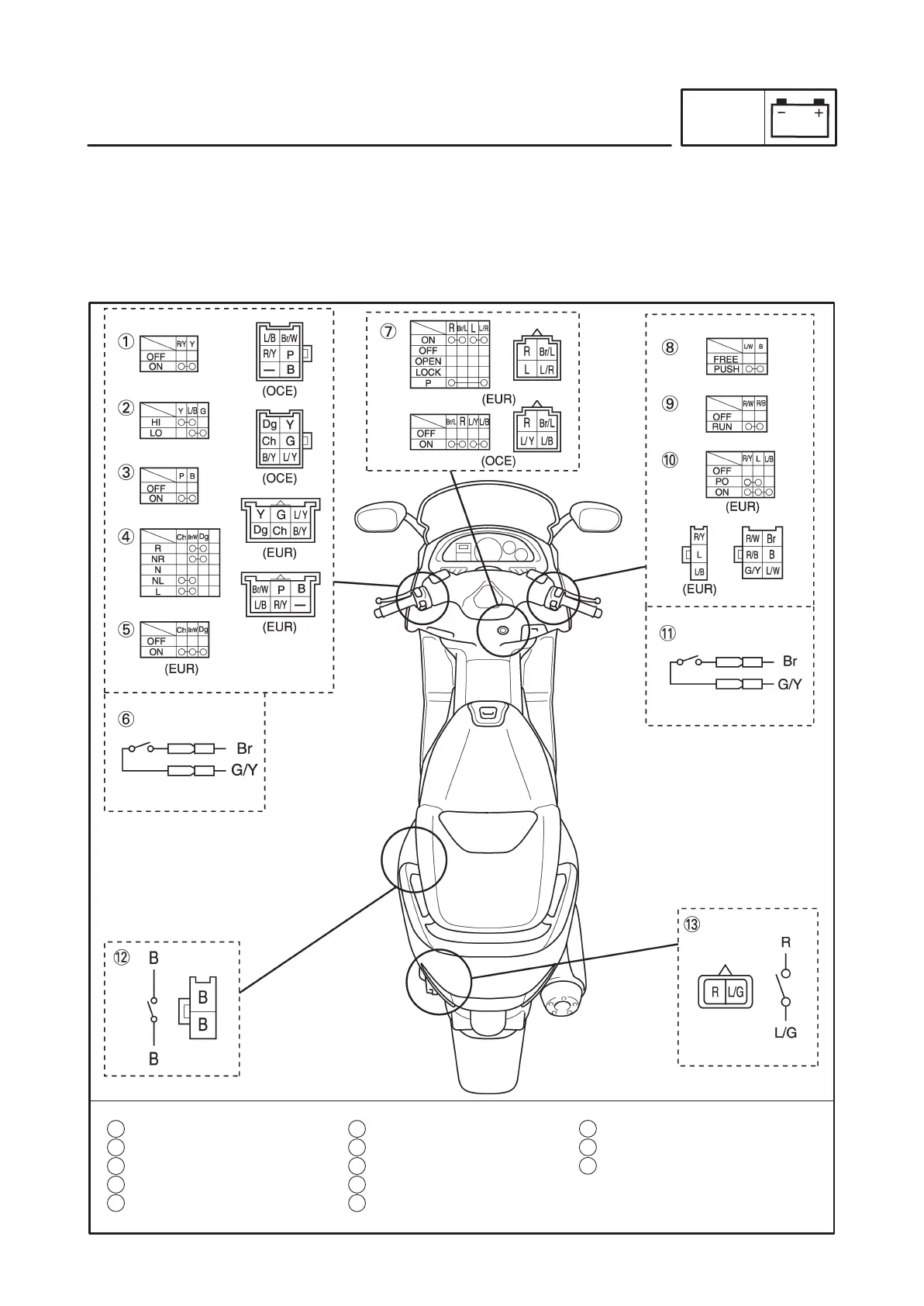

1 Pass switch
2 Dimmer switch
3 Horn switch
4 Turn signal switch
5 Hazard switch (for EUR)
6 Rear brake light switch
7 Main switch
8 Start switch
9 Engine stop switch
10 Light switch (for EUR)
11 Front brake light switch
12 Sidestand switch
13 Box light switch
CHECKING THE SWITCHES
ELEC
EAS00731
CHECKING THE SWITCHES
Check each switch for damage or wear, proper connections, and also for continuity between the termi-
nals. Refer to “CHECKING SWITCH CONTINUITY”. (Manual No.: 5GJ1-AE1)
Damage/wear ! Repair or replace the switch.
Improperly connected ! Properly connect.
Incorrect continuity reading ! Replace the switch.
