Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove cowling A. (See
page 6-9.)
2. Remove the headlight unit by re-
moving the bolts.
3. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
4. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down.
5. Place a new bulb into position, and
then secure it with the bulb holder.
CAUTION:
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
1. Headlight unit
2. Bolt
1
2

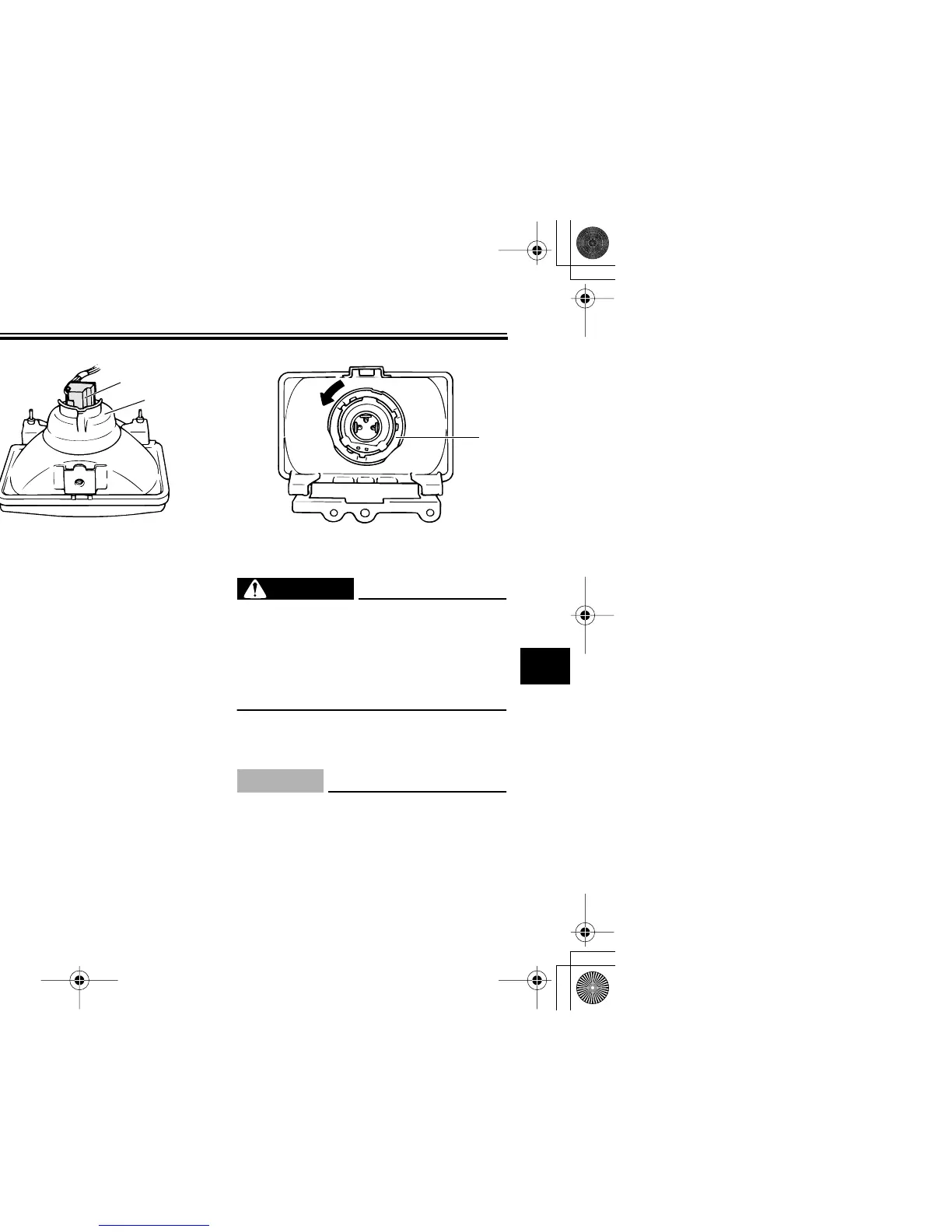

1. Headlight coupler
2. Headlight bulb cover
1
2
1. Headlight bulb holder
1
