PERIODIC MAINTENANCE AND MINOR REPAIR
6-38
1
2
3
4
5
6
7
8
9
frame in front of the rear wheel or under
each side of the swingarm.
EAU24360
Front wheel
EAU24690
To remove the front wheel
WARNING
EWA10820
●
It is advisable to have a Yamaha
dealer service the wheel.
●
Securely support the motorcy-
cle so that there is no danger of
it falling over.
1. Remove the engine guard by re-
moving the bolt.
2. Remove the brake disc cover by
removing the screws.
3. Remove the speedometer cable
holder by removing the screw.
4. Disconnect the speedometer ca-
ble from the front wheel.
5. Remove the axle nut.
6. Lift the front wheel off the ground
according to the procedure on
page 6-37.
7. Pull the wheel axle out, and then
remove the wheel.
CAUTION:
ECA11070
Do not apply the brake after the

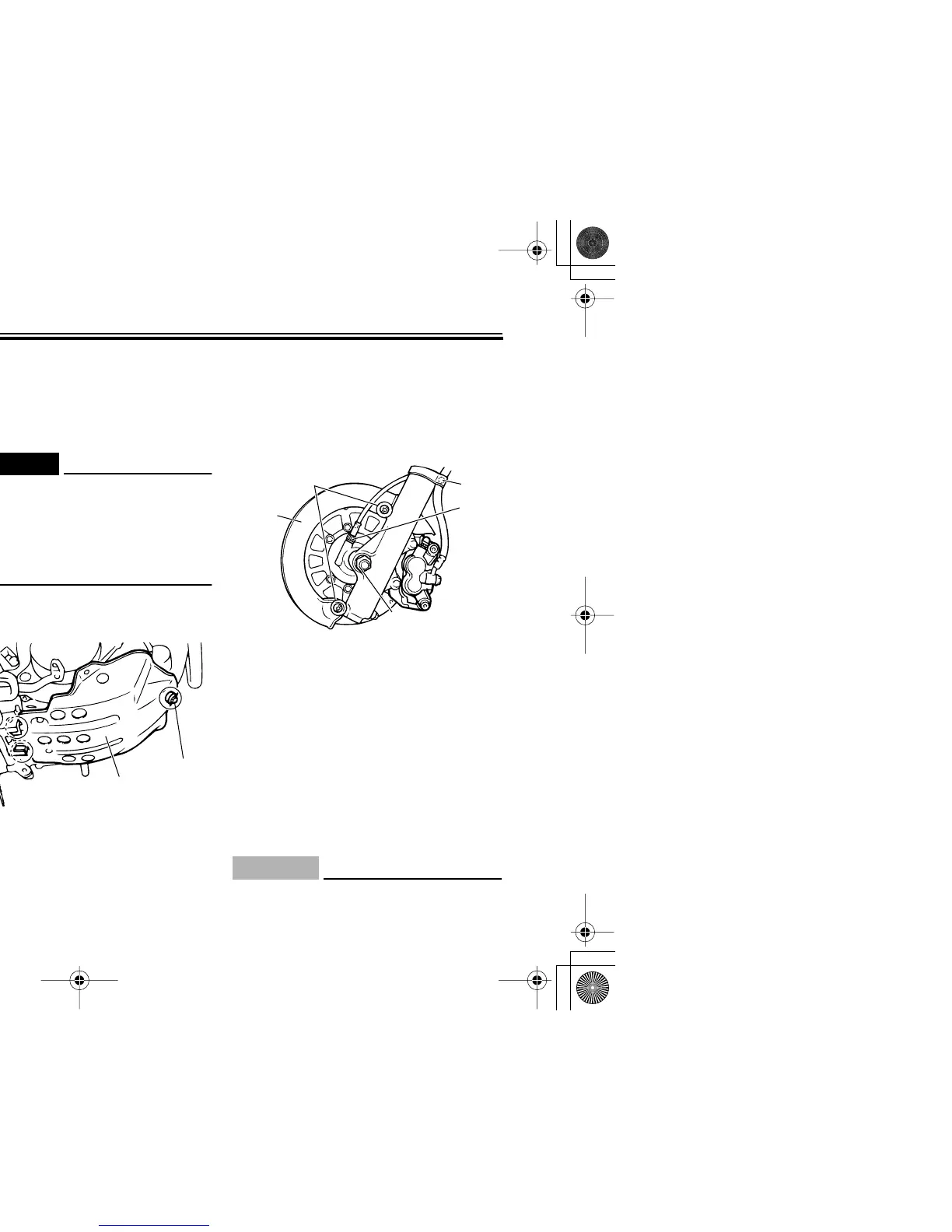

1. Engine guard
2. Bolt
2
1
1. Brake disc cover
2. Screw
3. Speedometer cable holder
4. Speedometer cable
5. Axle nut
