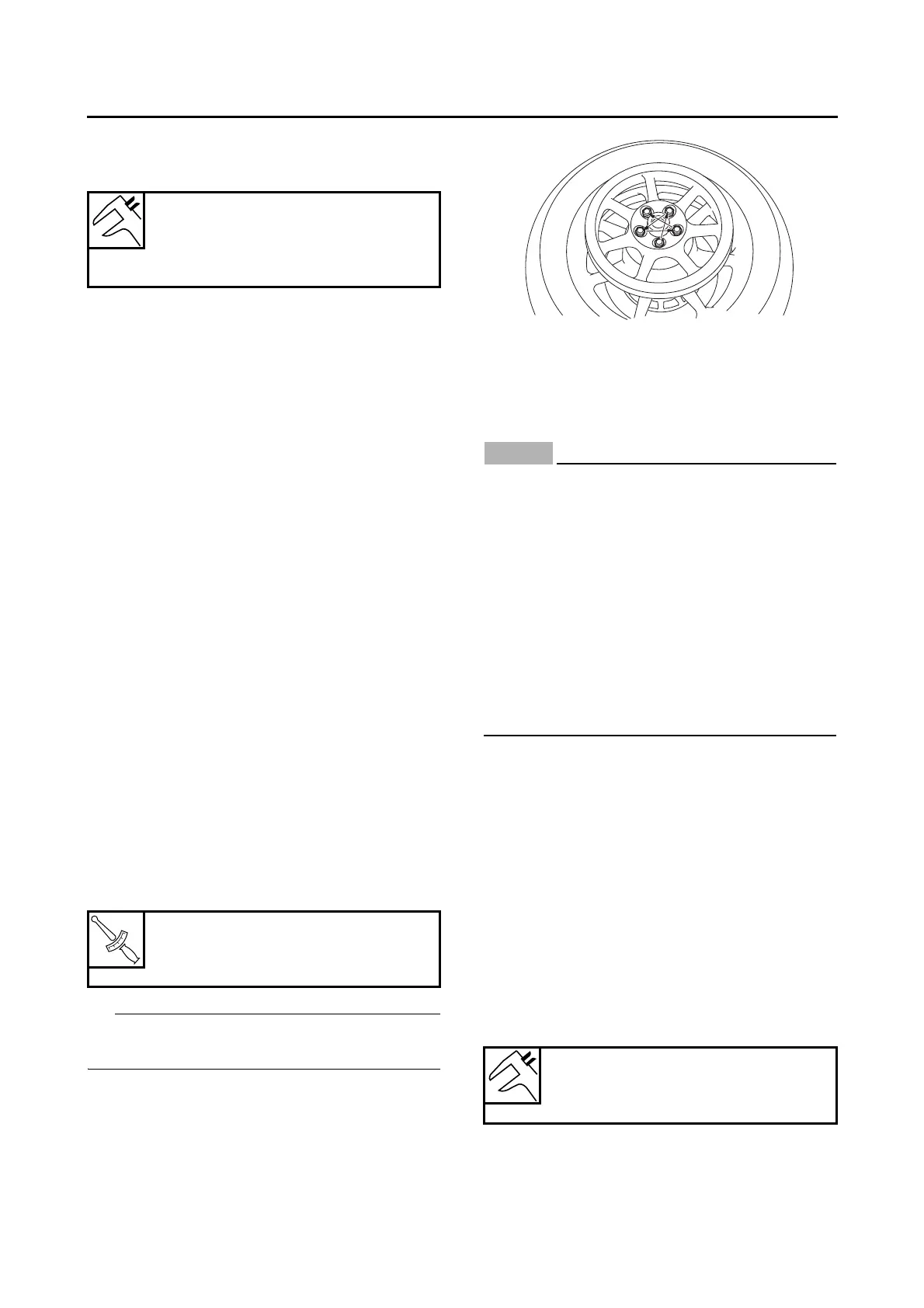

REAR WHEEL
4-26
• Lateral wheel runout
Refer to “CHECKING THE FRONT WHEEL”
on page 4-13.
EAS1TP1014
CHECKING THE REAR BRAKE CALIPER
BRACKET
1. Check:
• Rear brake caliper bracket
Cracks/damage → Replace.
EAS22110
CHECKING THE REAR WHEEL DRIVE HUB
1. Check:
• Rear wheel drive hub
Cracks/damage → Replace.
• Rear wheel drive hub dampers
Damage/wear → Replace.
EAS22130
CHECKING AND REPLACING THE REAR
WHEEL PULLEY
1. Check:
• Rear wheel pulley
Surface plating has come off → Replace the
rear wheel pulley.
Bent teeth → Replace the rear wheel pulley.
2. Replace:
• Rear wheel pulley
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Remove the self-locking nuts and the rear
wheel pulley.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces that contact the
pulley.
c. Install the new rear wheel pulley.
TIP
Tighten the self-locking nuts in stages and in a
crisscross pattern.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS1XC1035
MAINTENANCE OF THE REAR WHEEL
SENSOR AND SENSOR ROTOR (for ABS
models)
NOTICE
ECA1XC1012
• Handle the ABS components with care
since they have been accurately adjusted.
Keep them away from dirt and do not sub-
ject them to shocks.
• The rear wheel sensor cannot be disassem-
bled. Do not attempt to disassemble it. If
faulty, replace with a new one.
• Keep any type of magnets (including mag-
netic pick-up tools, magnetic screwdrivers,
etc.) away from the rear wheel sensor or
rear wheel sensor rotor.
• Do not drop or shock the wheel sensor or
the wheel sensor rotor.
1. Check:
• Rear wheel sensor
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR
(for ABS models)” on page 4-14.
2. Check:
• Rear wheel sensor rotor
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR
(for ABS models)” on page 4-14.
3. Measure:
• Wheel sensor rotor deflection
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR
(for ABS models)” on page 4-14.
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
T
R
.
.
Rear wheel pulley self-locking
nut
95 Nm (9.5 m·kgf, 69 ft·lbf)
Wheel sensor rotor deflection
limit
0.25 mm (0.0098 in)
