Yamaha XVS950CU 2014 - CRANKSHAFT

CRANKSHAFT
5-75
EAS25960
CRANKSHAFT

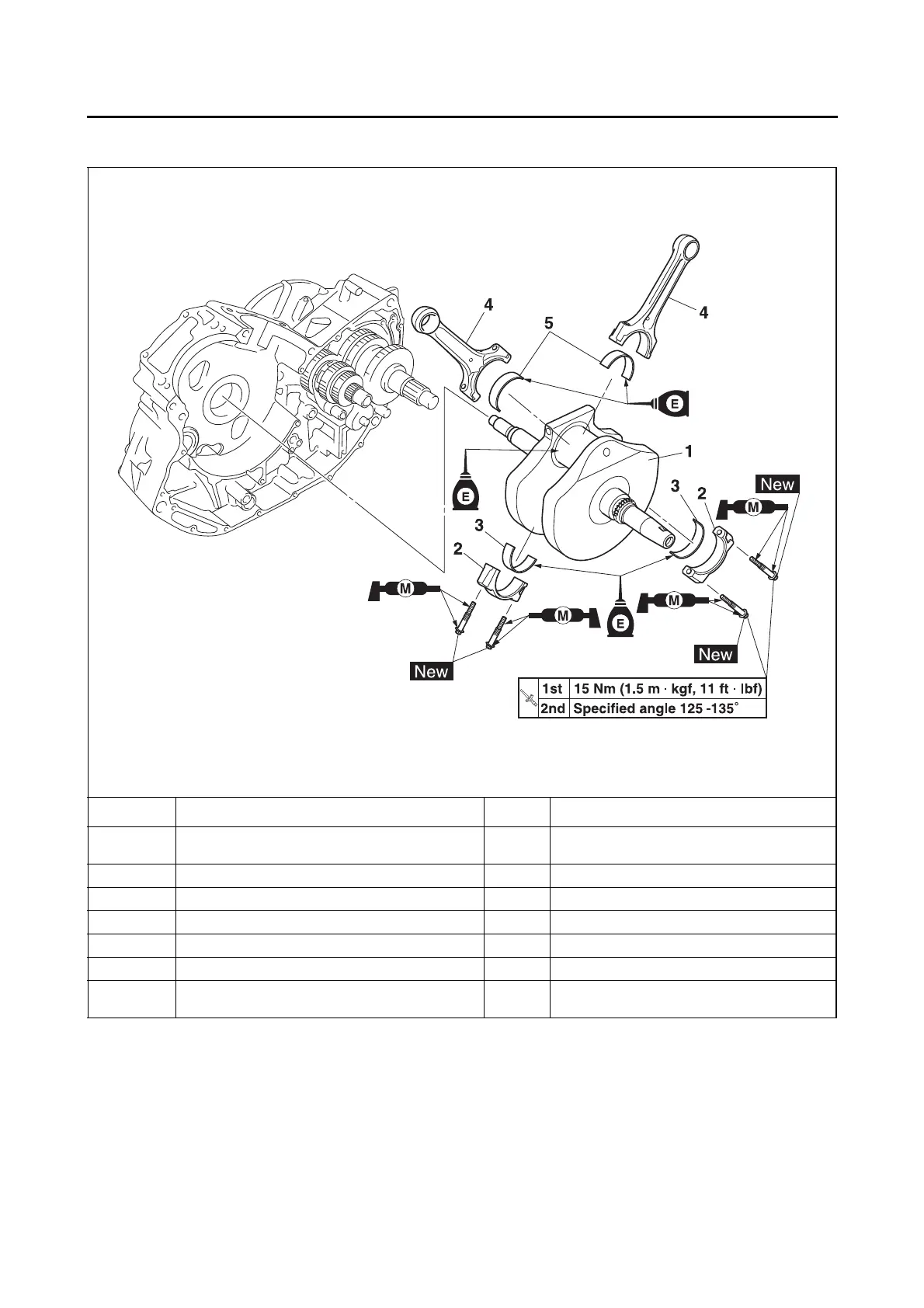

Removing the crankshaft
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-65.
1 Crankshaft 1
2 Connecting rod cap 2
3 Big end lower bearing 2
4 Connecting rod 2
5 Big end upper bearing 2
For installation, reverse the removal proce-
dure.
