OIL PUMP
5-72
EAS24910
OIL PUMP

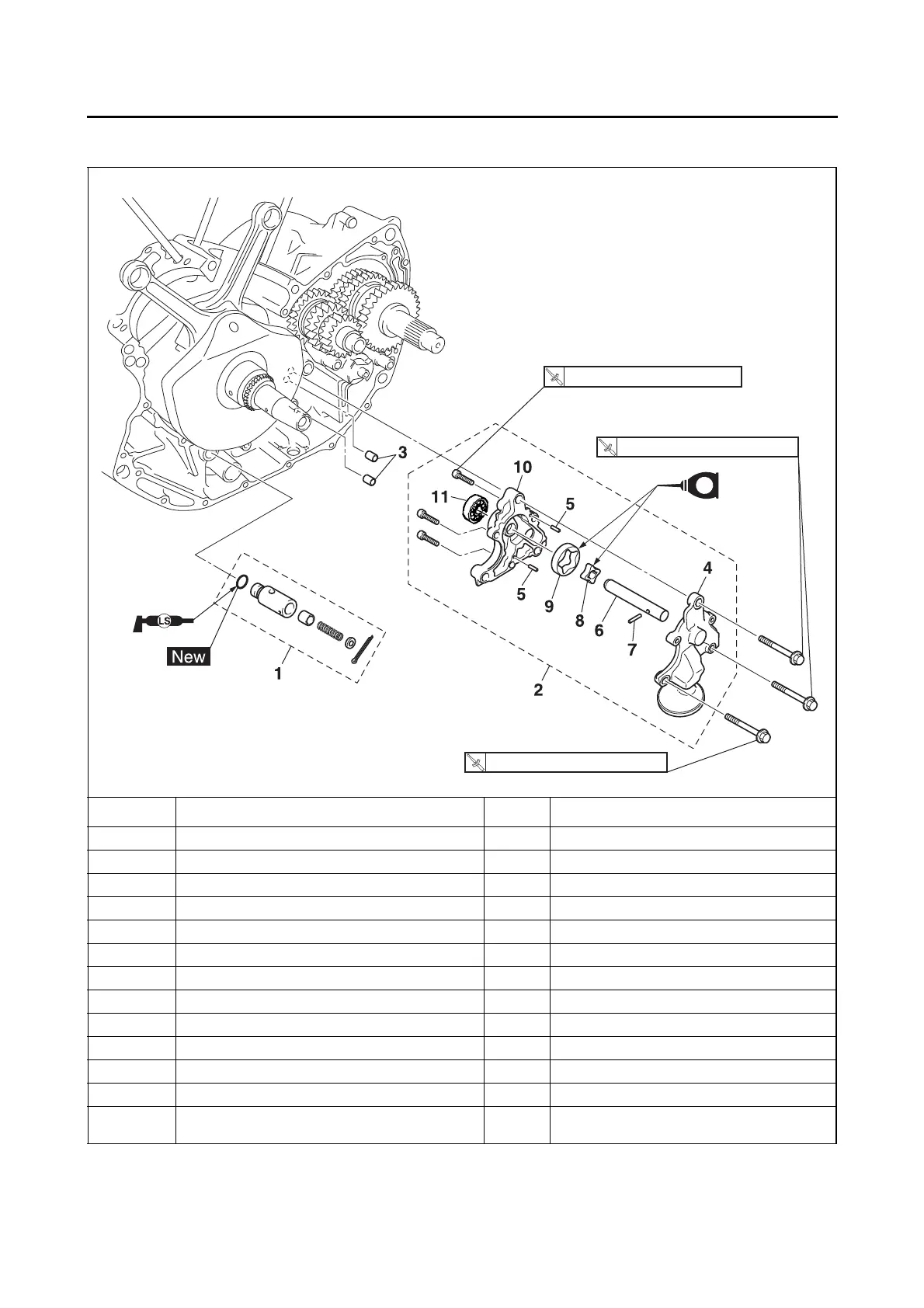

Removing the oil pump assembly
Order Job/Parts to remove Q’ty Remarks
Crankcase Refer to “CRANKCASE” on page 5-65.
1 Relief valve assembly 1
2 Oil pump assembly 1
3 Dowel pin 2
4 Oil pump housing 1
5 Dowel pin 2
6 Impeller shaft 1
7Pin 1
8 Oil pump inner rotor 1
9 Oil pump outer rotor 1
10 Oil pump housing cover 1
11 Bearing 1
For installation, reverse the removal proce-
dure.
E
8 Nm (0.8 m
•
kgf, 5.8 ft
•
Ibf)
T
.R
.
24 Nm (2.4 m
•
kgf, 17 ft
•
Ibf)
T
.R.
24 Nm (2.4 m
•
kgf, 17 ft
•
Ibf)
T
.R
.
