Yamaha YTF2 - Fuse Replacement Procedure; Warning: Incorrect Fuse Usage Hazard

Fuse Replacement
Be sure to use the specified fuse.
Using a wrong fuse can cause
electrical system damage and
create a fire hazard. Death or
serious personal injury can result
from failing to comply with the
warning labels in this manual.
When replacing a fuse, be sure the
main switch is turned off to pre-
vent accidental short-circuiting
and electrical system damage.

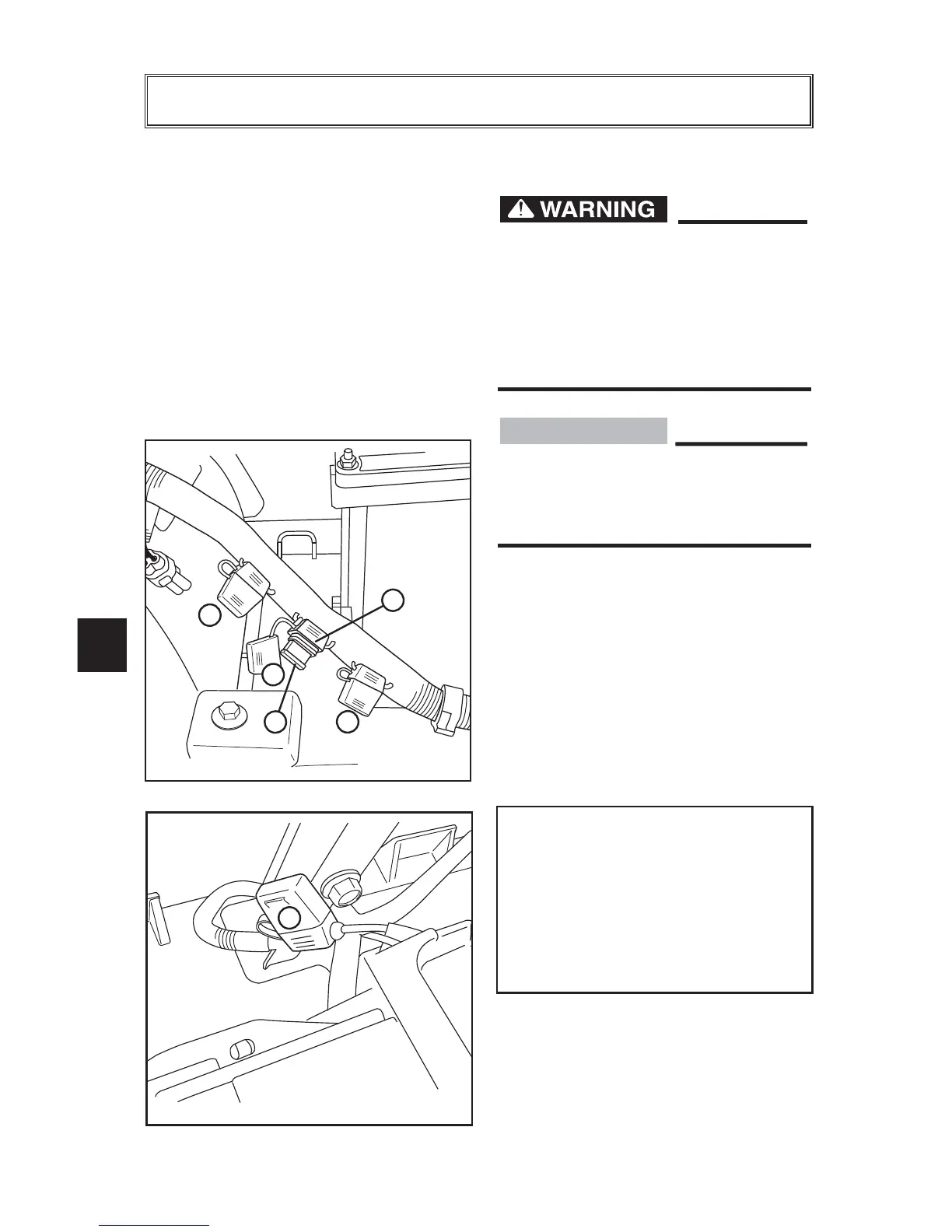

1. Locate the in-line fuse holder on
the main wire harness adjacent
to the tow switch.
2. Pull fuse holder cover off.
3. Pull fuse out, inspect and replace
if necessary.
å Fuse holder
∫ Fuse
Fuse Type:
1 DC Outlet Fuse (10A),
Blade Style
2 Light Fuse (15A), Blade Style
3 Fuse (10A), Blade Style
4 25 Amp, Blade Style (MAIN)
Fuse location off of negative
battery terminal @ 15 cm (6 in.)
