4-30
WATER PUMP
WATER PUMP

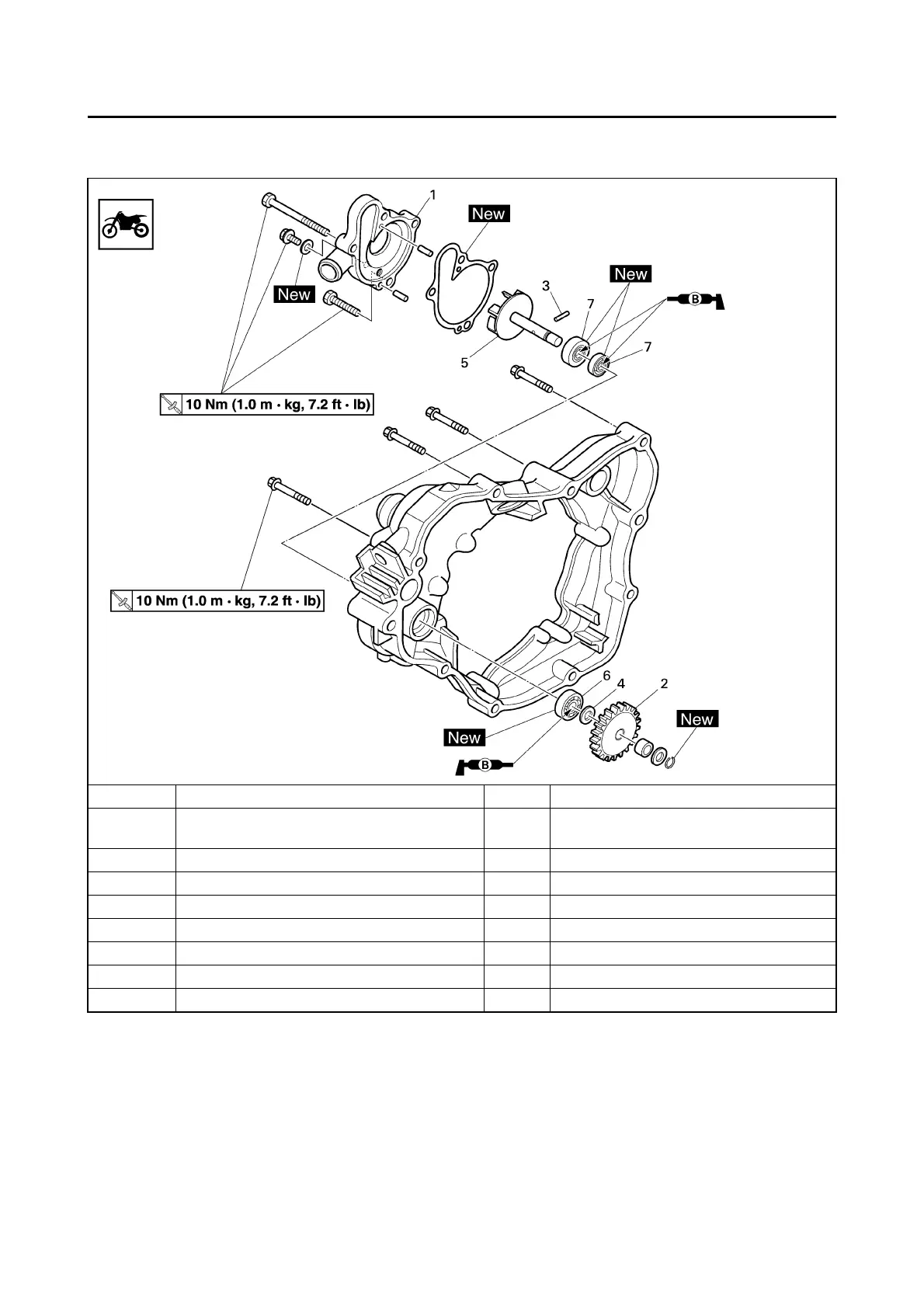

DISASSEMBLING THE WATER PUMP
Order Part name Q'ty Remarks
Crankcase cover (right)
Refer to "KICK SHAFT AND SHIFT SHAFT"
section.
1 Water pump housing cover 1
2 Impeller shaft gear 1
3 Dowel pin 1
4Plain washer 1
5 Impeller shaft assembly 1
6 Bearing 1 Refer to removal section.
7 Oil seal 2 Refer to removal section.
