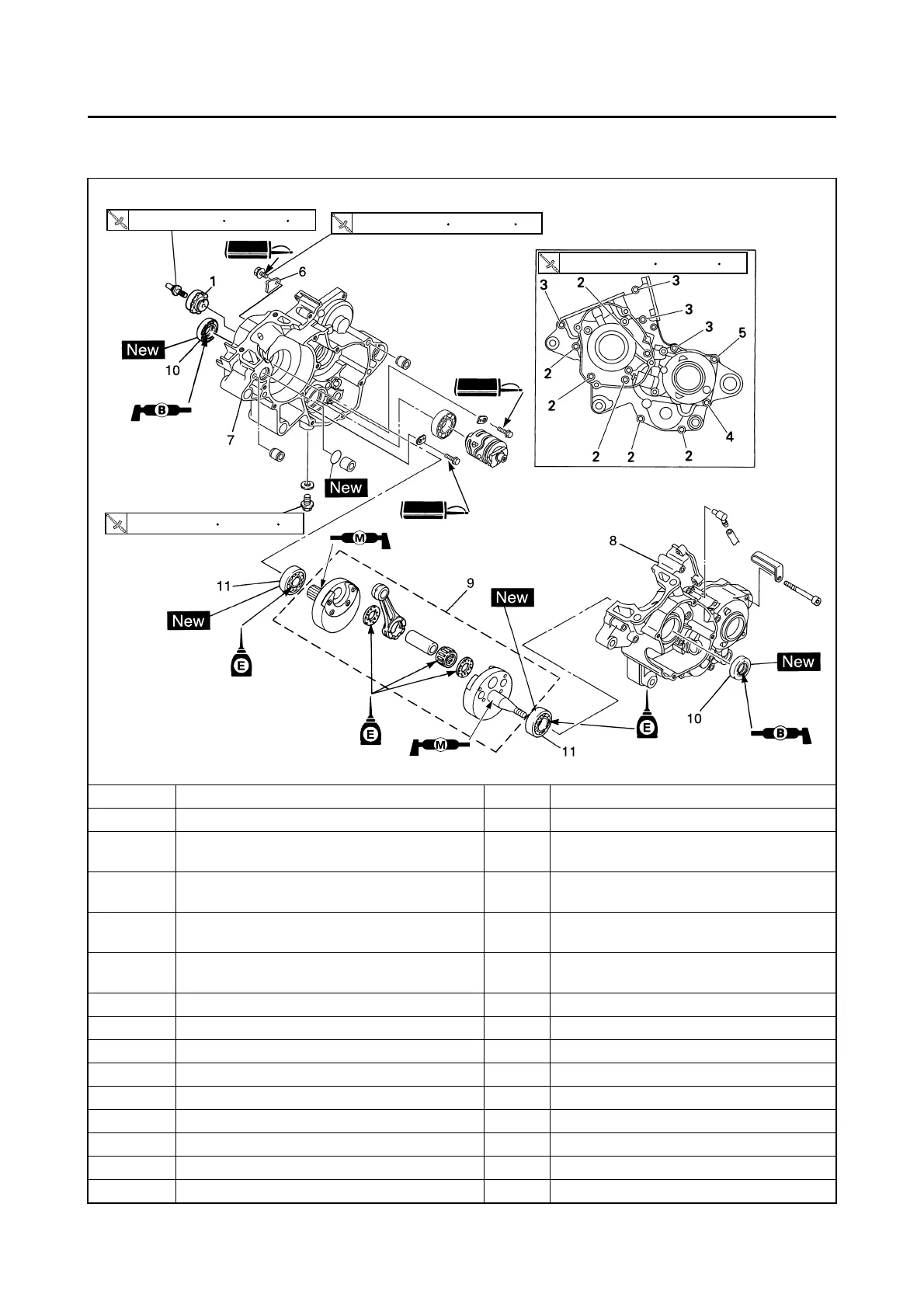

CRANKCASE AND CRANKSHAFT

REMOVING THE CRANKSHAFT

Order Part name Q'ty Remarks

Engine Refer to "ENGINE REMOVAL" section.

Piston

Refer to "CYLINDER HEAD, CYLINDER

AND PISTON" section.

Primary drive gear

Refer to "KICK SHAFT AND SHIFT SHAFT"

section.

Kick idle gear

Refer to "KICK SHAFT AND SHIFT SHAFT"

section.

Stopper lever

Refer to "KICK SHAFT AND SHIFT SHAFT"

section.

Rotor and stator Refer to "CDI MAGNETO" section.

1 Segment 1 Refer to removal section.

2 Bolt [L=45 mm (1.77 in)] 6

3 Bolt [L=55 mm (2.17 in)] 4

4 Bolt [L=65 mm (2.56 in)] 1

5 Bolt [L=75 mm (2.95 in)] 1

6Holder 1

7 Crankcase (right) 1 Refer to removal section.

8 Crankcase (left) 1 Refer to removal section.

30 Nm (3.0 m kg, 22 ft lb)

10 Nm (1.0 m kg, 7.2 ft lb)

20 Nm (2.0 m kg, 14 ft lb)

14 Nm (1.4 m kg, 10 ft lb)
