Yamaha yz250 2015 User Manual

4-1
SEAT, FUEL TANK AND SIDE COVERS
ENGINE
This section is intended for those who have basic knowledge and skill concerning the servicing of Yamaha motorcycles
(e.g., Yamaha dealers, service engineers, etc.). Those who have little knowledge and skill concerning servicing are request-
ed not to undertake inspection, adjustment, disassembly, or reassembly only by reference to this manual. It may lead to
servicing trouble and mechanical damage.
SEAT, FUEL TANK AND SIDE COVERS

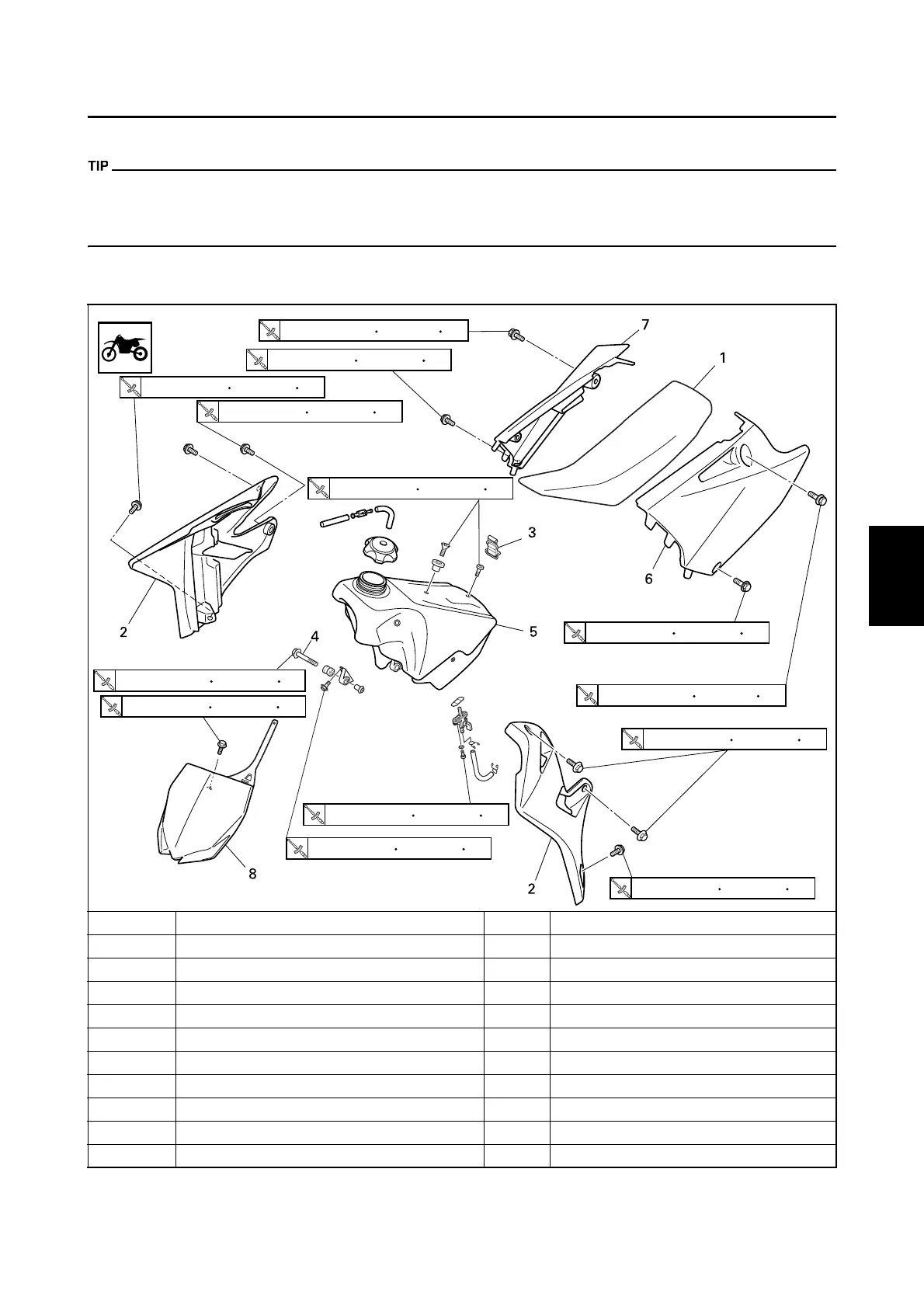

REMOVING THE SEAT, FUEL TANK AND SIDE COVERS
Order Part name Q'ty Remarks
Turn the fuel cock to "OFF".
Disconnect the fuel hose.
1Seat 1
2 Air scoop (left and right) 2
3 Fitting band 1 Remove on fuel tank side.
4 Bolt (fuel tank) 2
5 Fuel tank 1
6 Left side cover 1 Refer to removal section.
7 Right side cover 1 Refer to removal section.
8 Number plate 1 Refer to removal section.
6 Nm (0.6 m kg, 4.3 ft lb)
6 Nm (0.6 m kg, 4.3 ft lb)
7 Nm (0.7 m kg, 5.1 ft lb)
7 Nm (0.7 m kg, 5.1 ft lb)
7 Nm (0.7 m kg, 5.1 ft lb)
7 Nm (0.7 m kg, 5.1 ft lb)
7 Nm (0.7 m kg, 5.1 ft lb)
7 Nm (0.7 m kg, 5.1 ft lb)
7 Nm (0.7 m kg, 5.1 ft lb)
19 Nm (1.9 m kg, 13 ft lb)
19 Nm (1.9 m kg, 13 ft lb)
10 Nm (1.0 m kg, 7.2 ft lb)
4 Nm (0.4 m kg, 2.9 ft lb)
4

Yamaha yz250 2015 Specifications

General

Displacement	249cc
Bore x Stroke	66.4mm x 72.0mm
Compression Ratio	8.9~10.6:1
Ignition	CDI
Transmission	5-speed; multiplate wet clutch
Final Drive	Chain
Front Tire	80/100-21
Rear Tire	110/90-19
Wheelbase	58.3 in
Seat Height	39.1 in
Ground Clearance	14.2 in
Fuel Capacity	2.1 gal
Wet Weight	227 lbs
Engine Type	2-stroke
Fuel System	Keihin PWK38S
Front Suspension	KYB Speed-Sensitive System inverted fork; fully adjustable
Rear Suspension	12.4-in travel
Front Brake	Single disc, 250mm
Rear Brake	Hydraulic single disc brake, 245mm
Width	32.5 inches
