KICK SHAFT AND SHIFT SHAFT
KICK SHAFT AND SHIFT SHAFT

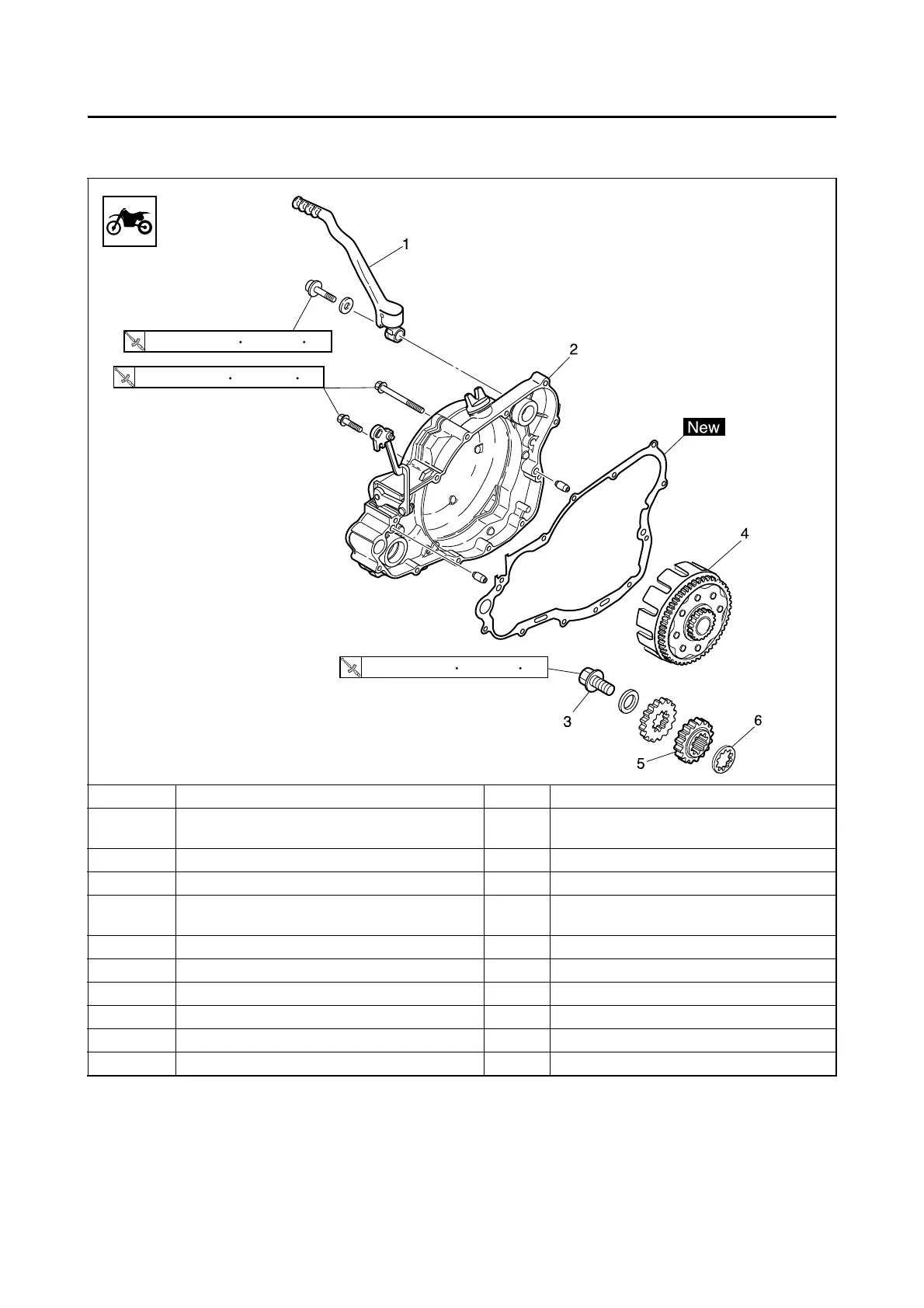

REMOVING THE PRIMARY DRIVE GEAR
Order Part name Q'ty Remarks
Drain the transmission oil.
Refer to "CHANGING THE TRANSMISSION
OIL" section in the CHAPTER 3.
Bolt (brake pedal) Shift the brake pedal downward.
Radiator hose 4 Disconnect at water pump side.
Bolt (push rod)
Refer to "CYLINDER HEAD, CYLINDER
AND PISTON" section.
1 Kickstarter lever 1
2 Crankcase cover (right) 1
3 Bolt (Primary drive gear) 1 Only loosening. Refer to removal section.
4 Primary driven gear 1 Refer to "CLUTCH" section.
5 Primary drive gear 1
6 Thrust plate 1
10 Nm (1.0 m kg, 7.2 ft lb)
30 Nm (3.0 m kg, 22 ft lb)
55 Nm (5.5 m kg, 40 ft lb)

Yamaha yz250 2015 Specifications

General

Displacement	249cc
Bore x Stroke	66.4mm x 72.0mm
Compression Ratio	8.9~10.6:1
Ignition	CDI
Transmission	5-speed; multiplate wet clutch
Final Drive	Chain
Front Tire	80/100-21
Rear Tire	110/90-19
Wheelbase	58.3 in
Seat Height	39.1 in
Ground Clearance	14.2 in
Fuel Capacity	2.1 gal
Wet Weight	227 lbs
Engine Type	2-stroke
Fuel System	Keihin PWK38S
Front Suspension	KYB Speed-Sensitive System inverted fork; fully adjustable
Rear Suspension	12.4-in travel
Front Brake	Single disc, 250mm
Rear Brake	Hydraulic single disc brake, 245mm
Width	32.5 inches
