Yamatake SDC21 Series User Manual

Digital Controller SIO Driver
GP-Pro EX Device/PLC Connection Manual
14

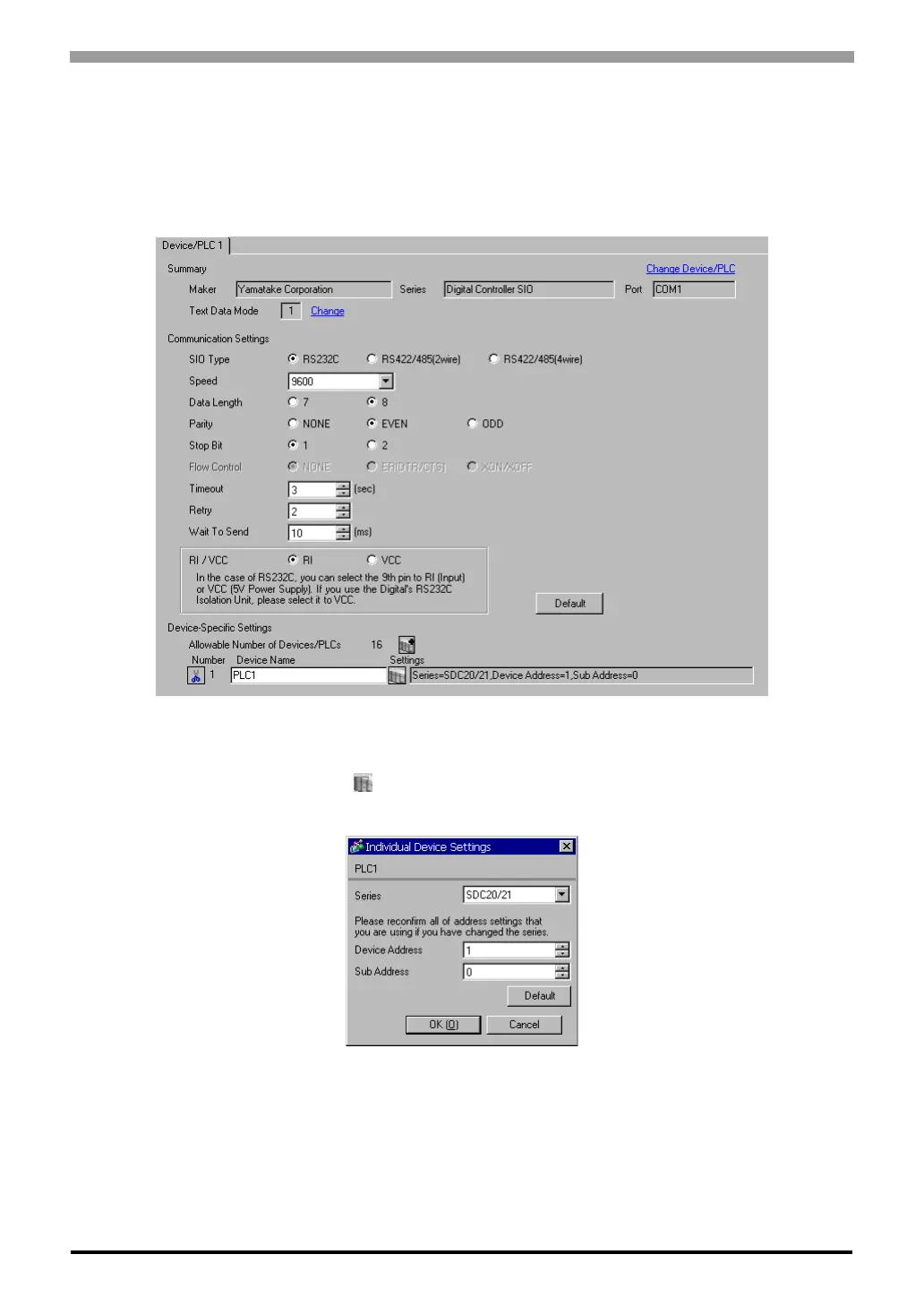

3.3 Setting Example 3
 Setting of GP-Pro EX
 Communication Settings
To display the setting screen, select [Device/PLC Settings] from [System setting window] in the workspace.
 Device Setting
To display the setting screen, click ([Setting]) of the External Device you want to set from [Device-Specific
Settings] of [Device/PLC Settings].

Yamatake SDC21 Series Specifications

General

Input Type	Thermocouple, RTD, DC voltage, DC current
Output Type	Relay, Voltage, Current
Power Supply	100-240V AC, 24V AC/DC
Control Output	Relay, Voltage, Current
Control Algorithm	PID
Communication	RS-485
