Yanmar 1GM10C User Manual

PRODUCT OVERVIEW
GM Series Operation Manual 11
12/05
COMPONENT IDENTIFICATION
Service Side - 1GM10 with KM2P

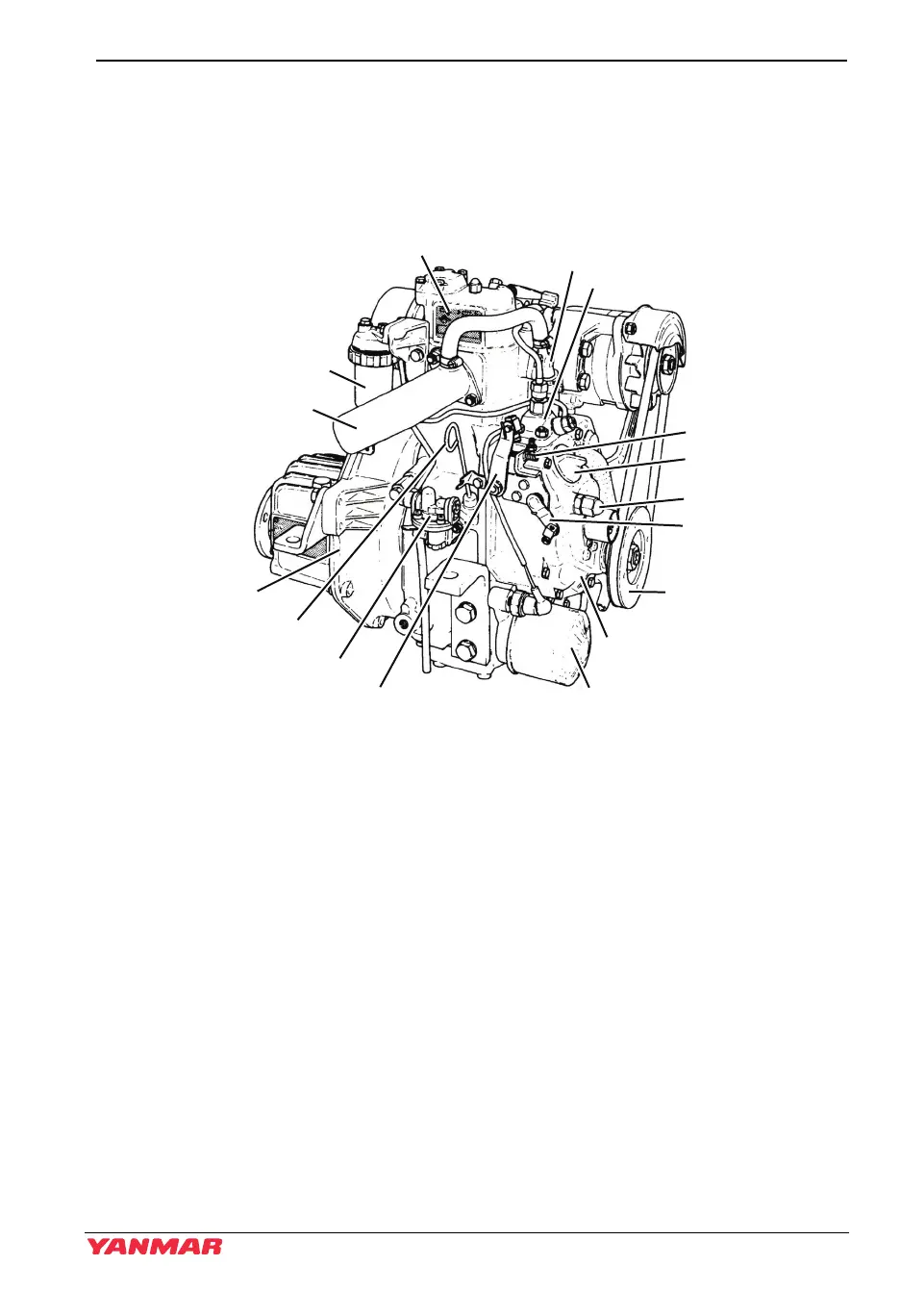

Figure 1 and Figure 2 illustrate a typical version of a 1GM10 engine. Your engine may
have different equipment from that illustrated.
Figure 1
Figure 1
1–Nameplate
2 – Thermostat Cover
3 – Fuel Injection Pump
4 – Idle Adjuster
5 – Oil Filler Cap
6 – Fuel Injection Limiter
7 – Engine Stop Lever
8 – Crankshaft V-Pulley
9 – Seawater Pump
10 – Engine Oil Filter
11 – Regulator Handle
12 – Fuel Feed Pump
13 – Engine Oil Dipstick
14 – Mounting Flange
15 – Mixing Elbow
16 – Fuel Filter
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
0005850
