PRODUCT OVERVIEW
GM Series Operation Manual 15
12/05
CONTROL EQUIPMENT
The control equipment at the helm makes remote control operation possible. It consists of
the instrument panel, which is connected to the engine by a wire harness, and the throttle
and shift console, which is connected by control cables to the engine control lever and
marine gear.
Instrument Panel (Optional)
Equipment and Functions
The instrument panel is located at the helm and is available in two options. The following
controls and indicators enable you to start, stop and monitor the condition of the engine
during operation.

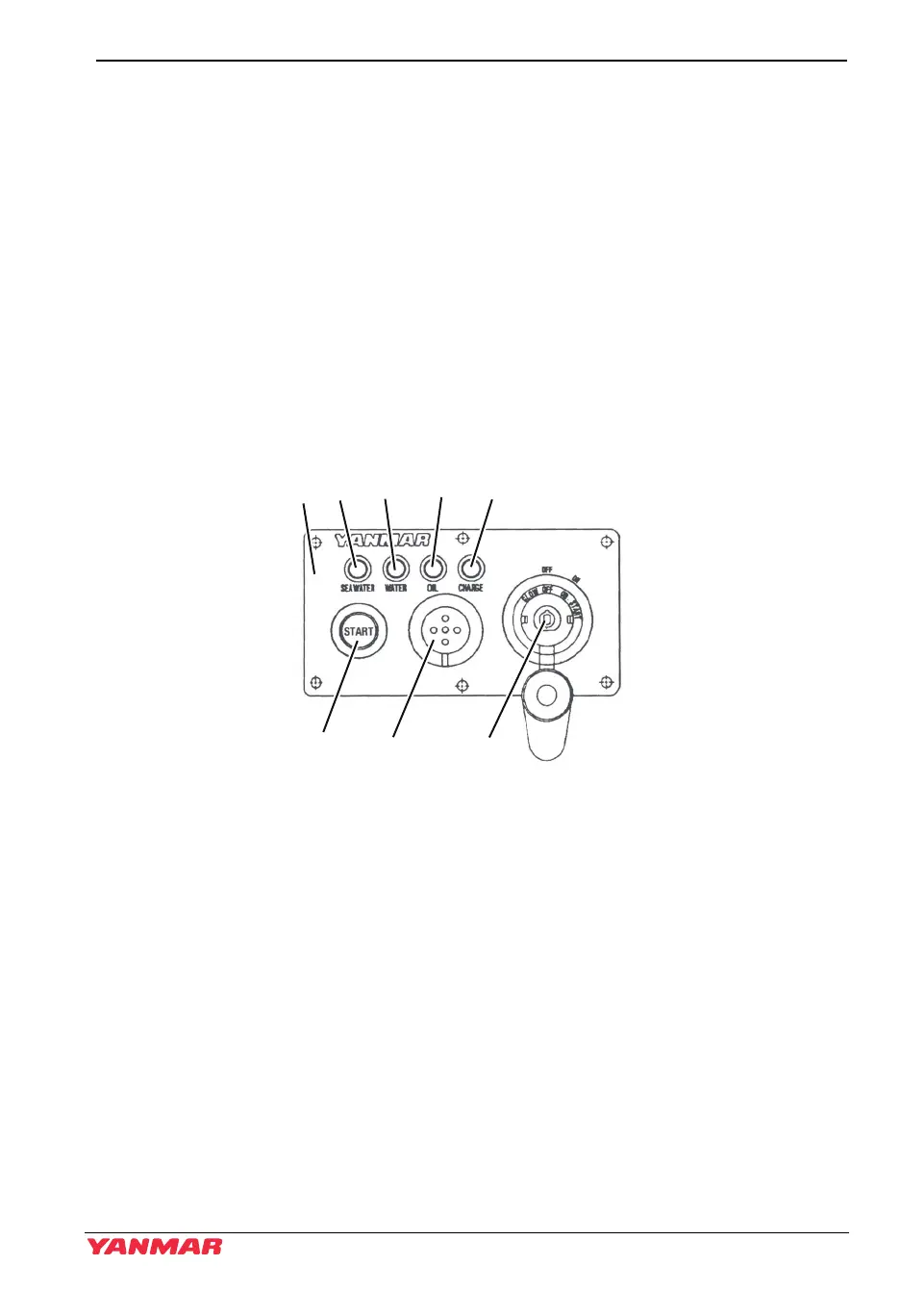

A-Type
Figure 5
Instrument Panel Options and Components
Figure 6
1–“A” instrument panel
2–Seawater in sail drive alarm lamp (Optional)
3–Cooling water temperature alarm Lamp
4–Engine oil low pressure alarm lamp
5–Battery low charge alarm lamp
6–Key switch
7–Alarm buzzer
8–Start switch (Push button)
(2)
(3)
(4)
(5)
(8)
(7)
(6)
(1)
0005848
