154

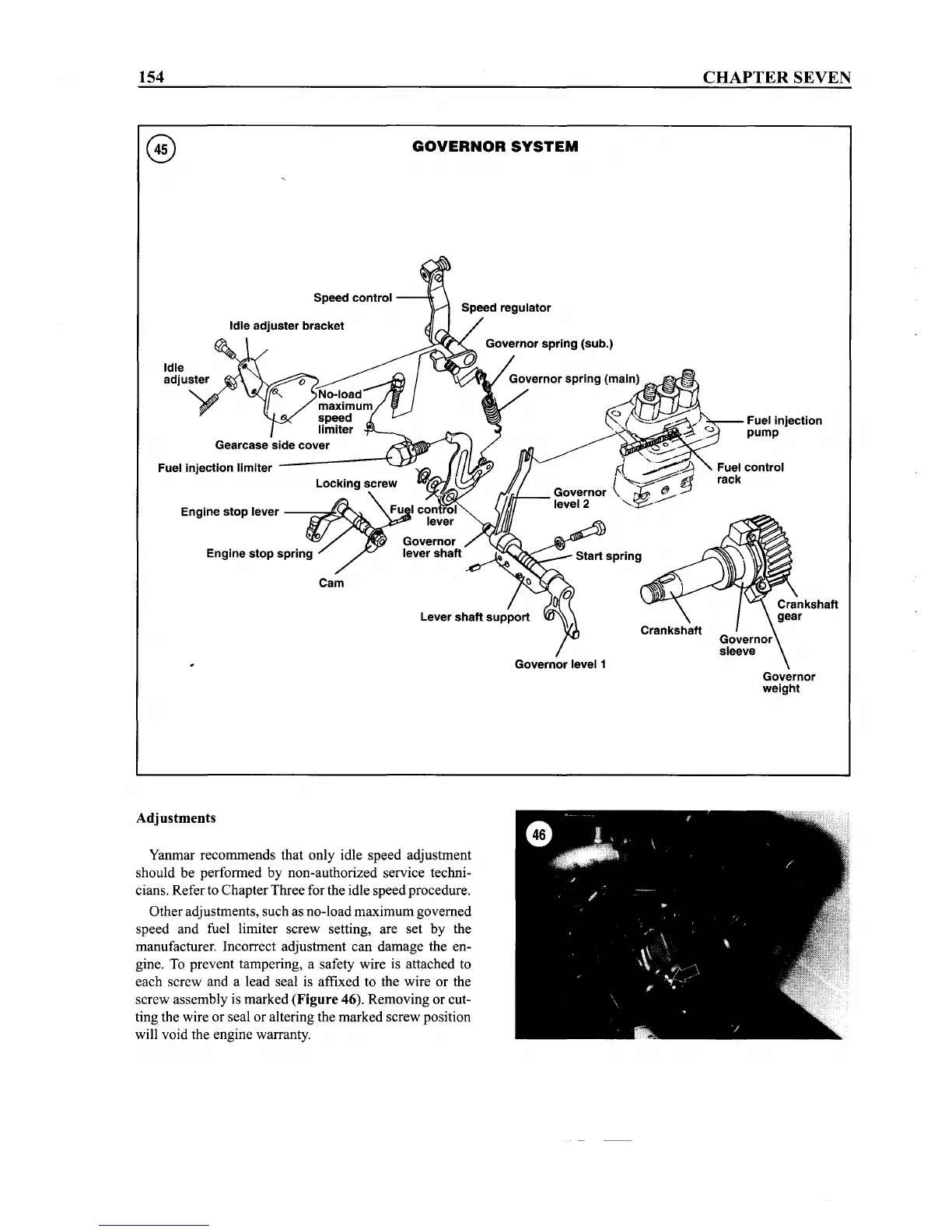

CHAPTER SEVEN
GOVERNOR
SYSTEM
Governor
weight
Fuel control
rack
Governor level 1
Governor
lever shaftEngine stop spring
Cam
Engine stop lever
-----:....."."=-,,"'"
Locking screw
Fuel injection limiter
Adjustments
Yanmar recommends that only idle speed adjustment
should be performed by non-authorized service techni-
cians. Refer to Chapter Three for the idle speedprocedure.
Other adjustments, such as no-load maximum governed
speed and fuel limiter screw setting, are set by the
manufacturer. Incorrect adjustment can damage the en-
gine. To prevent tampering, a safety wire is attached to
each screw and a lead seal is affixed to the wire or the
screw assembly is marked
(Figure 46). Removing or cut-
ting the wire or seal or altering the marked screw position
will void the engine warranty.
