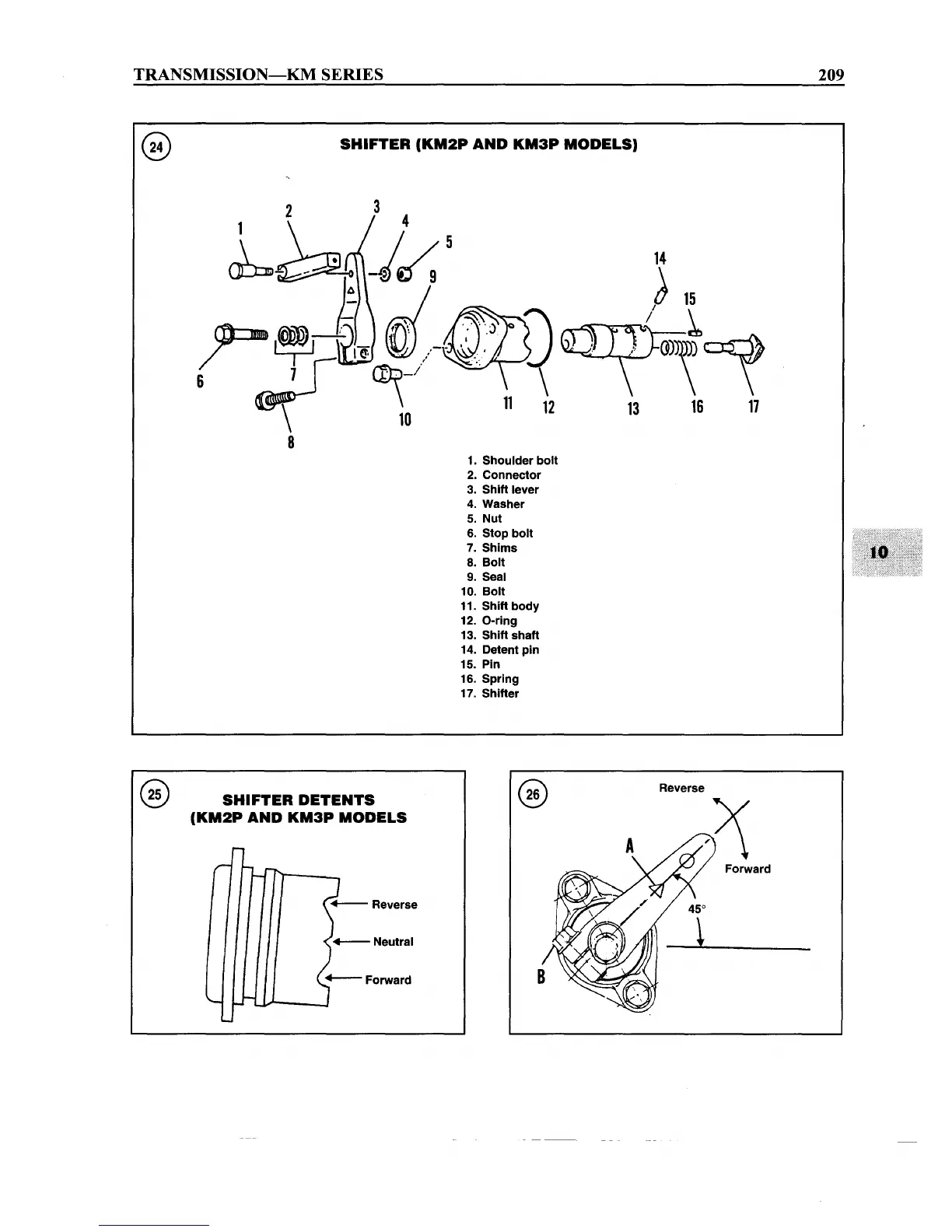

TRANSMISSION-KM SERIES
SHIFTER (KM2P AND KM3P MODELS)
14
I~ 15
/ ~
\~
13 16 17
1. Shoulder bolt
2. Connector
3. Shift lever
4. Washer
5. Nut
6. Stop bolt
7. Shims
8. Bolt
9. Seal
10. Bolt
11. Shift body
12. O-ring
13. Shift shaft
14. Detent pin
15. Pin
16. Spring
17. Shifter
209
Reverse
SHIFTER DETENTS
(KM2P AND KM3P MODELS
