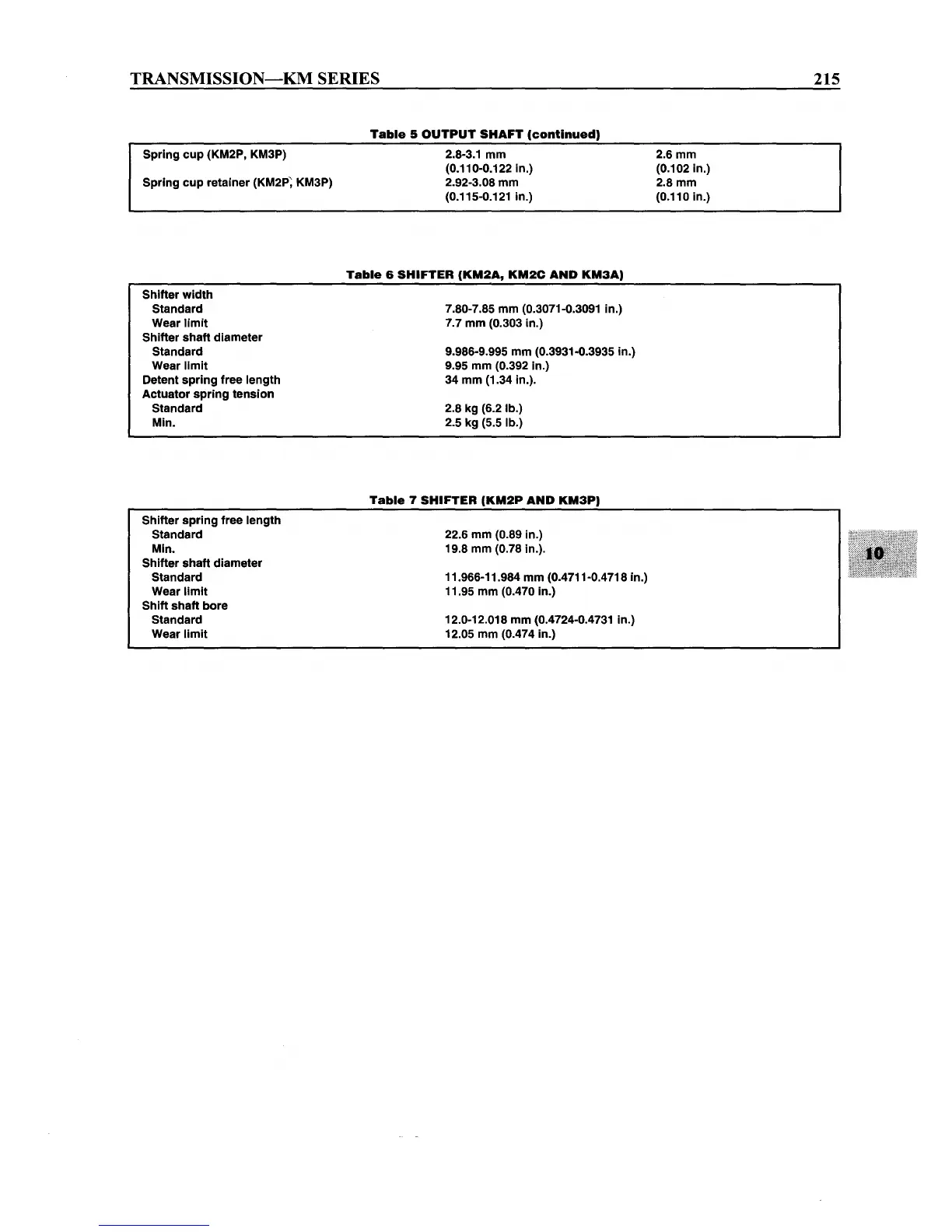

TRANSMISSION-KM SERIES
Table 5 OUTPUT SHAFT (continued)
215
Spring cup (KM2P, KM3P)
Spring cup retainer (KM2P~ KM3P)
Shifter width
Standard
Wear limit
Shifter shaft diameter
Standard
Wear limit
Detent spring free length
Actuator spring tension
Standard
Min.
Shifter spring free length
Standard
Min.
Shifter shaft diameter
Standard
Wear limit
Shift shaft bore
Standard
Wear limit
2.8-3.1 mm
(0.110-0.122 in.)
2.92-3.08 mm
(0.115-0.121 in.)
Table 6 SHIFTER (KM2A, KM2C AND KM3A)
7.80-7.85 mm (0.3071-0.3091 ln.)
7.7 mm (0.303 ln.)
9.986-9.995 mm (0.3931-0.3935 in.)
9.95 mm (0.392 in.)
34 mm (1.34 ln.),
2.8 kg (6.2 lb.)
2.5 kg (5.5 lb.)
Table 7 SHIFTER (KM2P AND KM3P)
22.6 mm (0.89 ln.)
19.8 mm (0.78 in.).
11.966-11.984 mm (0.4711-0.4718 in.)
11.95 mm (0.470 In.)
12.0-12.018 mm (0.4724-0.4731 ln.)
12.05 mm (0.474 In.)
2.6mm
(0.102 in.)
2.8mm
(0.110 in.)
