24 JH Series Operation Manual
LCD control
(hour meter, coolant temperature, display brightness, oil pressure, battery
voltage, alarms)
You can switch (scroll) between displays
by pressing the buttons on the bottom as
the default setting.
• Switching screens by pressing the
right button (Pressing the left button
switches the screens in the opposite
direction.)
Press the power switch.
• After 4 seconds, the LCD shows the
hour meter.
Pressing the right button on the bottom of
the LCD shows the temperature display.
Select between Metric units (°C) and
Imperial units (°F) at the "System Units
screen" on page 26.
Pressing the right button again shows the
LCD brightness settings.
To set the brightness of the backlight:
Press the left button continuously and
the digits of the LCD start flashing.
In this condition, press the left button
to increase the brightness.
Press the right button to decrease the
brightness. (The brightness changes in
6 steps of 20%.)
To set the desired brightness, do not touch
the buttons for 3 seconds.
Note: Continuously pressing means
holding the button for approx. 2
seconds.
Next, press the right button to show the
pressure display. Select between Metric
units (BAR) and Imperial units (PSI) at the
"System Units screen" on page 26.
Press again to show the battery voltage.

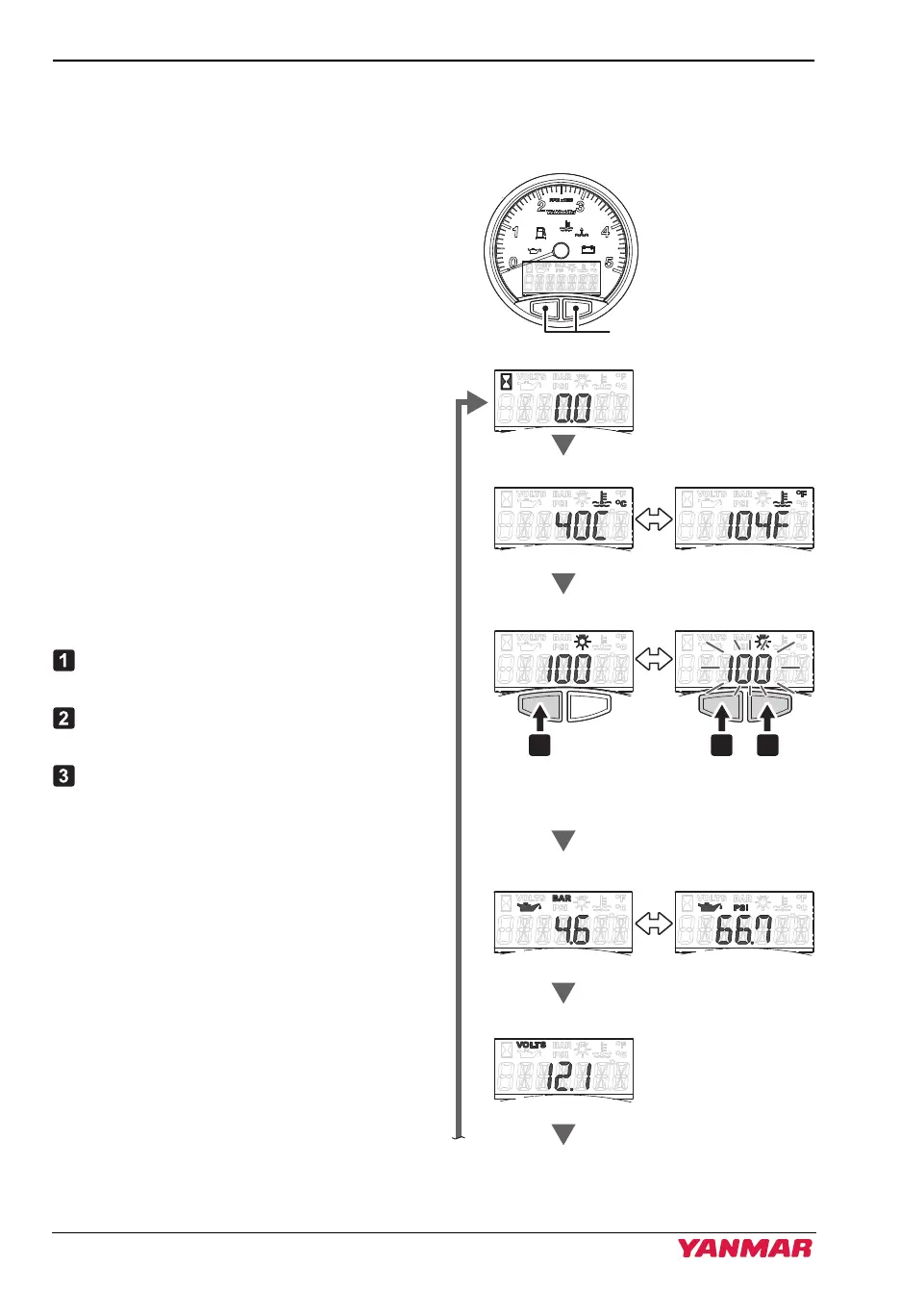

Figure 3
Figure 13
Scroll
Push and hold
(display will blink when
ready)
Scroll
100, 80, 60, 40, 20, 0
(value will be set after
3 seconds)
Imperial unitsMetric
Imperial unitsMetric
055130-00EN02
1 2 3
Engine hour ( >300 min
-1
)
Coolant temperature
Backlighting Brightness
Oil pressure
Battery voltage
