PRODUCT OVERVIEW

30 JH Series Operation Manual

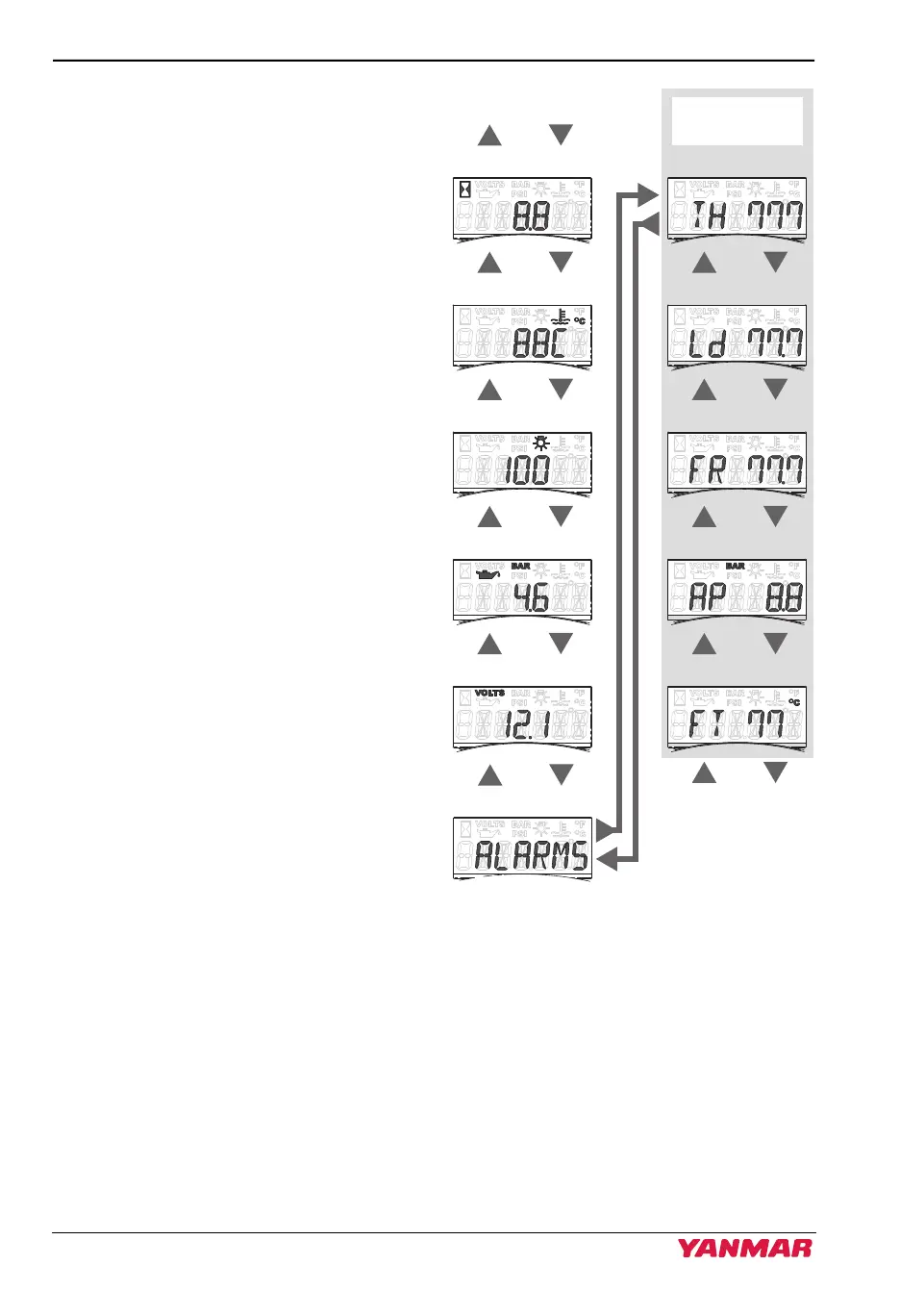

Scroll the LCD screen with the buttons.

Figure 20

057189-02EN00

Fuel temperature

Hour meter

Water temperature

Backlight

Engine oil pressure

Battery voltage

Hour meter

Throttle position

Engine load

Fuel flow rate

Intake air pressure

Fuel temperature

These parameters are

indicated if the display

setting is set to "ON".

Alarms

Water temperature

Engine oil pressure

3JH40_4JH45_4JH57_4JH80_4JH110_EN_OPM.book 30 ページ２０２２年９月２２日　木曜日　午後６時１７分
