ALTERNATOR
12-12
TNV DI Service Manual
Alternator
ALTERNATOR

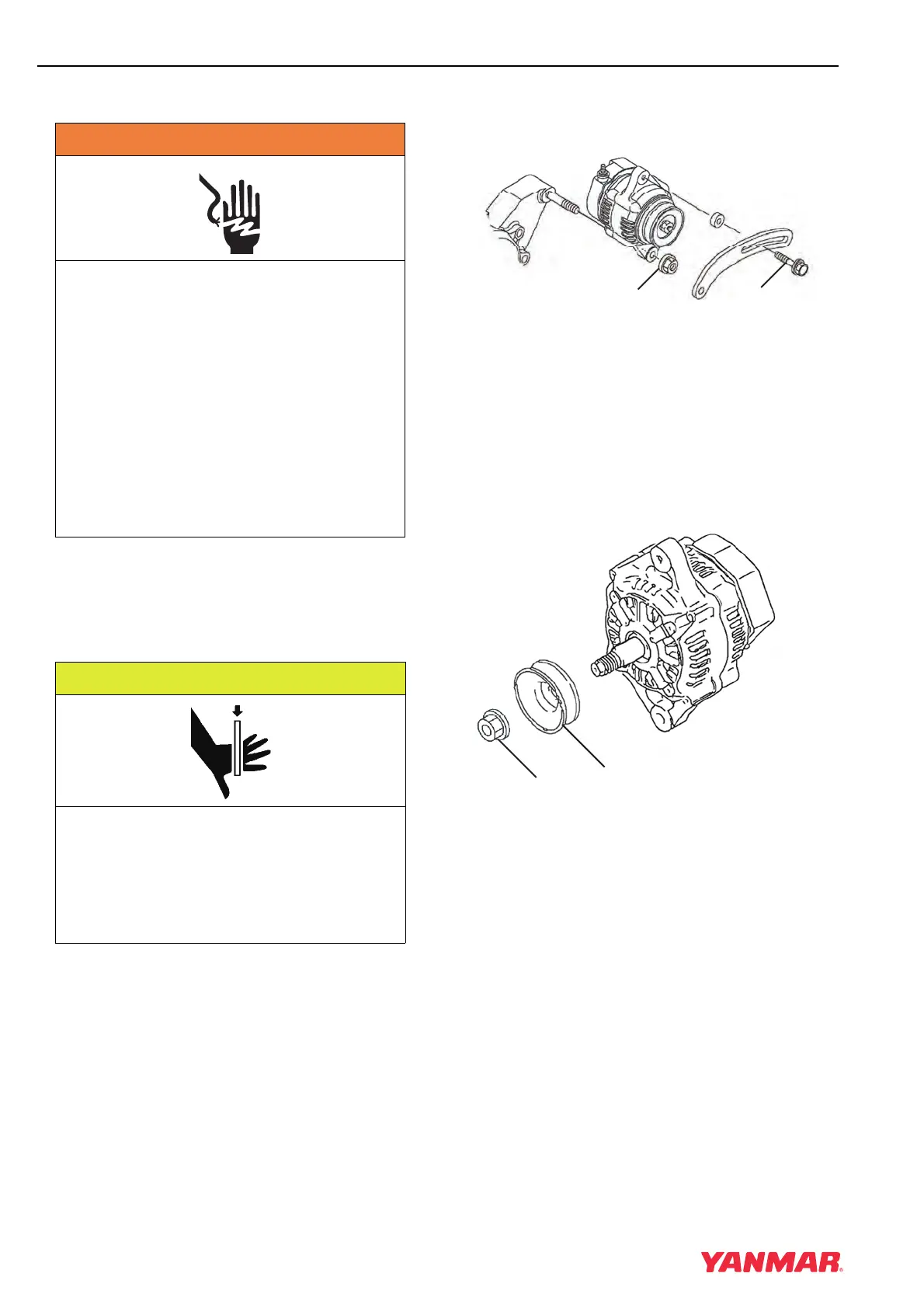

Removal of Alternator
1. Disconnect the electrical wires from the
alternator.
2. Loosen the V-belt.
3. Remove the V-belt adjuster from the alternator
bolt (Figure 12-4, (1)).
4. Remove the nut (Figure 12-4, (2)) from the
gear case stud. Remove the alternator.
Figure 12-4
Disassembly of Alternator
1. Remove the nut (Figure 12-5, (1)) from the
shaft of the rotor assembly. Remove the pulley
(Figure 12-5, (2)).
Figure 12-5
A WARNING
SHOCK HAZARD!
• Turn off the battery switch (if
equipped) or disconnect the negative
battery cable before servicing the
electrical system.
• Check the electrical harnesses for
cracks, abrasions, and damaged or
corroded connectors. ALWAYS keep
the connectors and terminals clean.
• Failure to comply could result in death
or serious injury.
0000009en
A CAUTION
PINCH HAZARD!
Carefully rotate the alternator toward the
cylinder block while loosening the
V-belt. Failure to comply may result in
minor or moderate injury.
0000014en
1
2
0000264
