Yanmar 3TNV88C - Disassembly of Dynamo; Reassembly of Dynamo

ALTERNATOR
TNV Tier 4 Service Manual
12-19
Dynamo
Disassembly of Dynamo

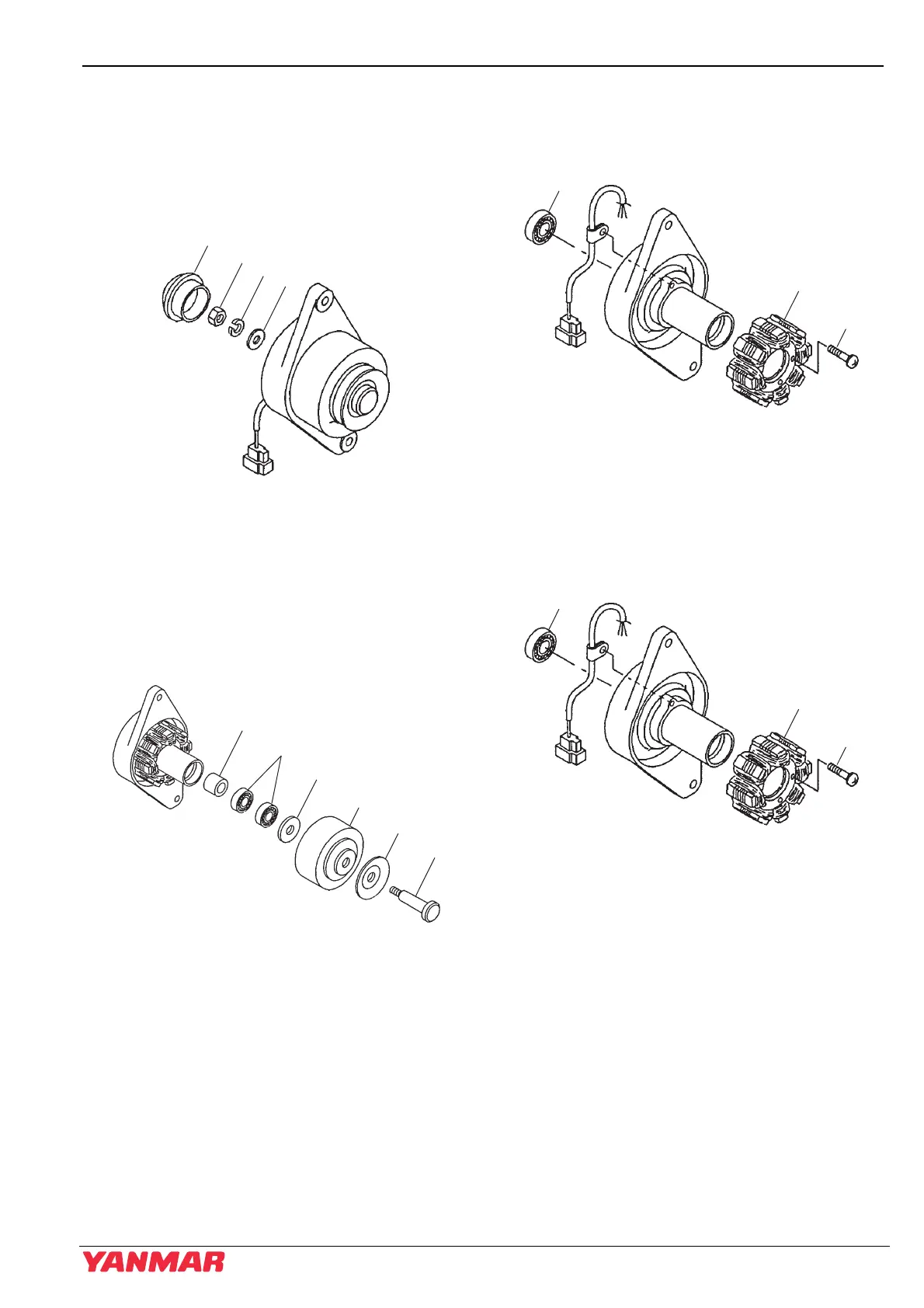

1. Remove the rear cover (Figure 12-24, (1)).
2. Remove the nut (Figure 12-24, (2)), lock
washer (Figure 12-24, (3)), and flat washer
(Figure 12-24, (4)).
Figure 12-24
3. Remove the through bolt (Figure 12-25, (1)),
pulley half (Figure 12-25, (2)), flywheel
(Figure 12-25, (3)), flat washer
(Figure 12-25, (4)), bearings
(Figure 12-25, (5)), and spacer
(Figure 12-25, (6)).
Figure 12-25
4. Remove the screws (Figure 12-26, (1)) and the
stator assembly (Figure 12-26, (2)).
5. Remove the rear bearing (Figure 12-26, (3)).
Figure 12-26
Reassembly of Dynamo
1. Reinstall the rear bearing (Figure 12-27, (3)).
2. Reinstall the stator (Figure 12-27, (2)) and
screws.
Figure 12-27
K0002143X
1
2
3
4
K0002144X
6
5
4
3
2
1
K0002145X
3
2
1
K0002145X
3
2
1
