Yanmar 4JH5E - Page 81

PERIODIC MAINTENANCE
JH Series Operation Manual 75
12/05
1. To adjust, loosen the adjustment screw
(Figure 5, (4)) or cable fitting
(Figure 6, (3)) for the remote control
cable on the engine side and adjust.
2. Adjust the high-speed stop
(Figure 5, (5)) or (Figure 6, (6))
position first and then adjust the
low-speed stop (Figure 5, (3)) or
(Figure 6, (4)), with the adjustment
screw on the remote control lever
(Figure 5, (1)) or (Figure 6, (5)).

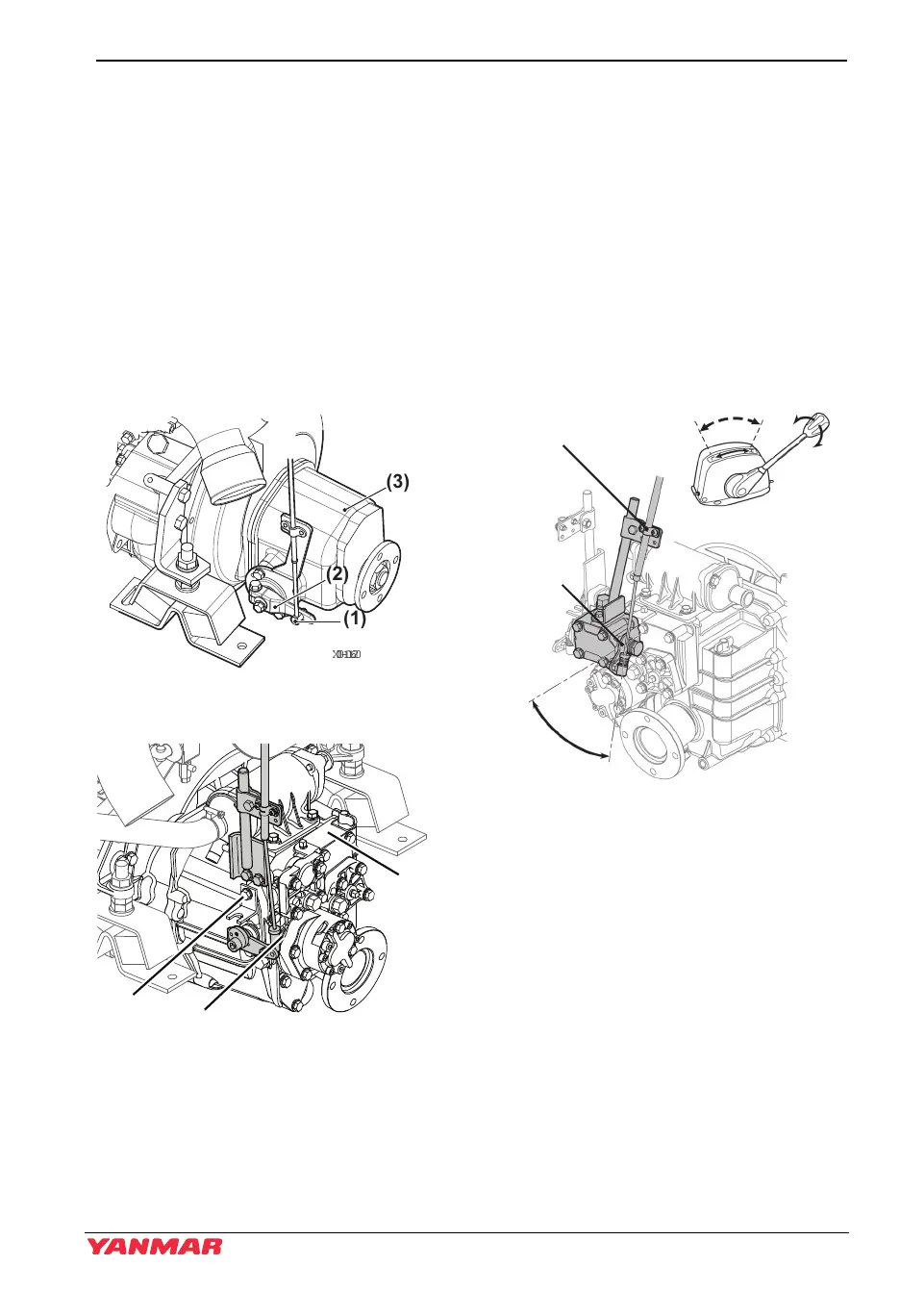

Adjusting Clutch Remote Control Cable
3JH5E / 4JH5E
Figure 7
4JH4-TE / 4JH4-HTE1 / 4JH4-HTE
Figure 8
1. Ensure that the remote control lever
(Figure 7, (2)) or (Figure 8, (1)) moves
to the correct position when the remote
control handle is in the NEUTRAL,
FORWARD and REVERSE positions.
Use the NEUTRAL position as the
standard for adjustment.
2. To adjust, loosen and retighten the
cable fitting (Figure 7, (1)) or
(Figure 8, (2)).
Adjusting Trolling Remote Control
Handle - If Equipped
Figure 9
1–Cable Fitting
2 – Trolling Lever
3 – Low Speed (trolling)
4 – High Speed
5 – Loosen
6 – Tighten
7 – Normal Operation (high speed)
8 – Trolling (low speed)
Note: KMH4A marine gear shown.
026101-00X
(1)
(2)
(3)
0004563
(1)
(2)
(3)
(1)
(2)
(
3)
(4)
(5)
(6)
(7)
(8)
0004498
