Yanmar 4LHA-STP User Manual

Chapter 1 General

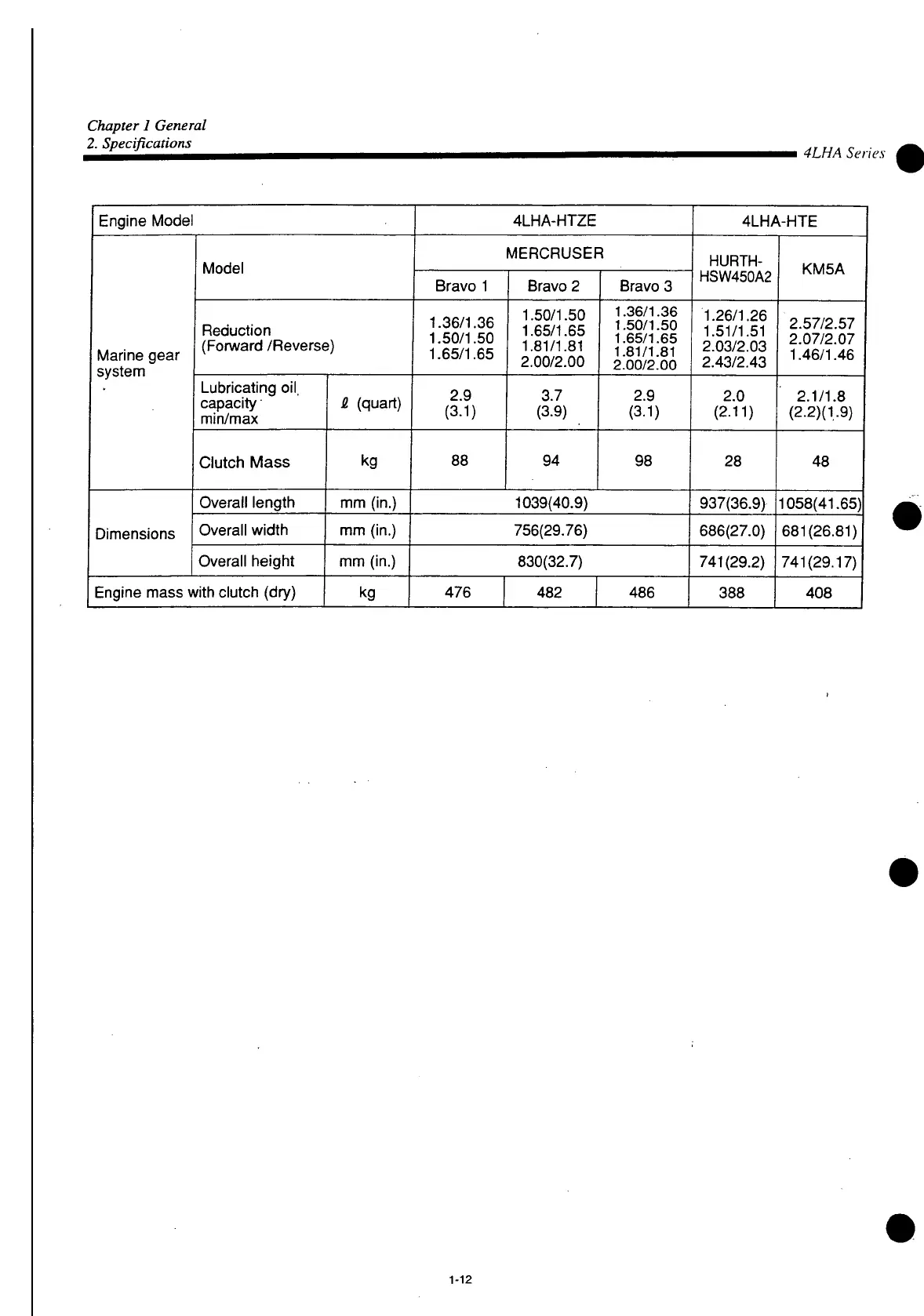

2. Specifications
4LHA Series
Engine Model
4LHA-HTZE
4LHA-HTE
Marine gear
system
Model
MERCRUSER
HURTH-
HSW450A2
KM5A
Marine gear
system
Model
Bravo 1 Bravo 2 Bravo 3
HURTH-
HSW450A2
KM5A
Marine gear
system
Reduction
(Forward /Reverse)
1.36/1.36
1.50/1.50
1.65/1.65
1.50/1.50
1.65/1.65
1.81/1.81
2.00/2.00
1.36/1.36
1.50/1.50
1.65/1.65
1.81/1.81
2.00/2.00
1.26/1.26
1.51/1.51
2.03/2.03
2.43/2.43
2.57/2.57
2.07/2.07
1.46/1.46
Marine gear
system
Lubricating oil,
capacity
min/max
£ (quart)
2.9
(3.1)
3.7
(3.9)
2.9
(3.1)
2.0
(2.11)
2.1/1.8
(2.2)(1,9)
Marine gear
system
Clutch Mass kg
88 94
98
28
48
Dimensions
Overall length
mm (in.)
1039(40.9)
937(36.9)
1058(41.65)
Dimensions
Overall width
mm (in.)
756(29.76)
686(27.0) 681(26.81)
Dimensions
Overall height mm (in.)
830(32.7)
741(29.2) 741(29.17)
Engine mass with clutch (dry)
kg
476 482 486
388 408
1-12

Yanmar 4LHA-STP Specifications

General

Number of Cylinders	4
Fuel System	Direct Injection
Engine Type	4-Stroke Vertical Water-Cooled Diesel Engine
Displacement	3.455 L
Bore x Stroke	100 mm x 110 mm
Aspiration	Turbocharged
