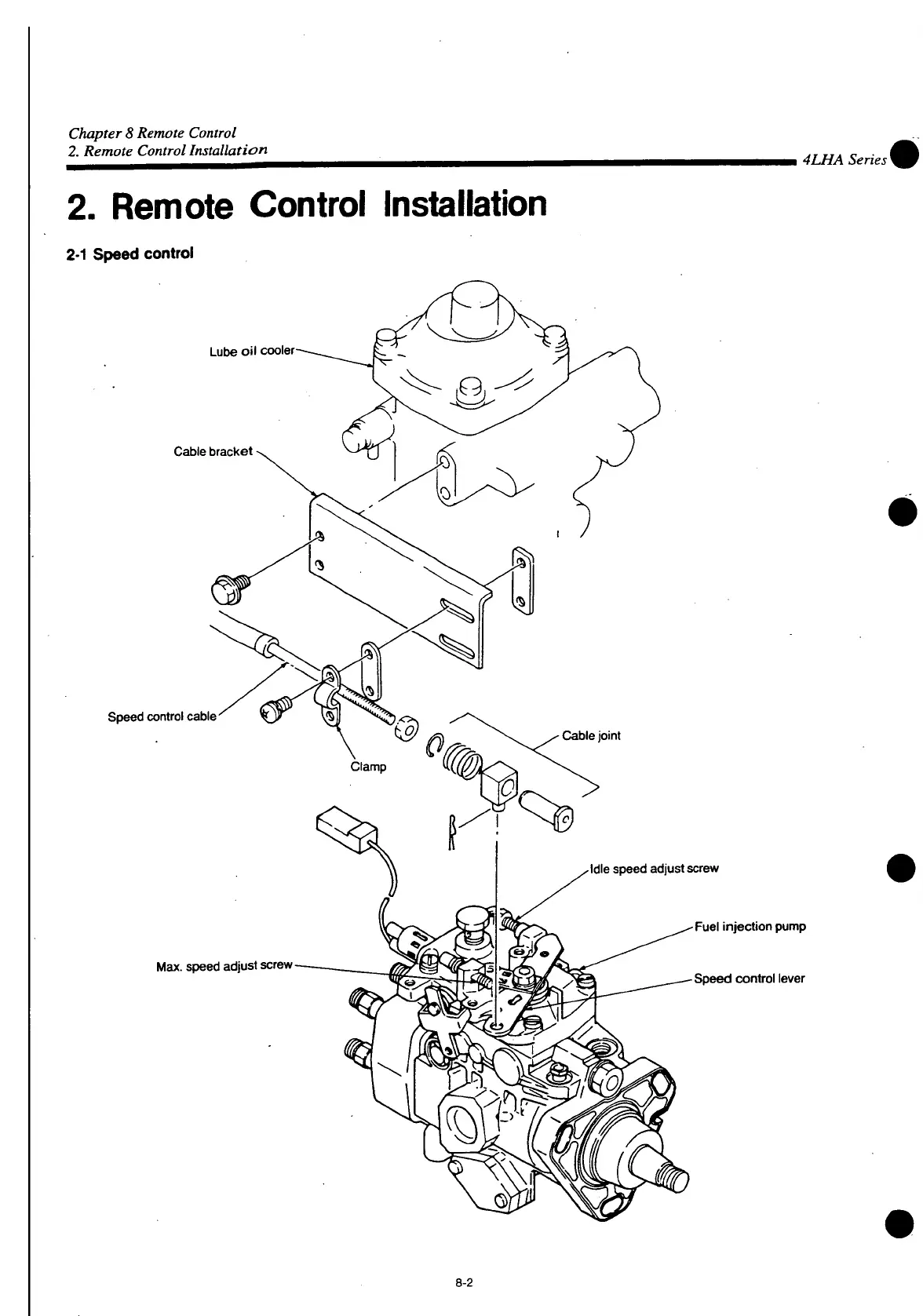

Chapter 8 Remote Control
2. Remote Control Installation
2.
Remote
Control
Installation
2-1 Speed
control
Lube
oil cooler
Cable
bracket
Speed
control cable
4LHA Series!
Idle
speed adjust screw
Max.
speed adjust screw
Fuel
injection pump
Speed
control lever
8-2

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yanmar 4LHA-STP and is the answer not in the manual?

Yanmar 4LHA-STP Specifications

General IconGeneral
Number of Cylinders4
Fuel SystemDirect Injection
Engine Type4-Stroke Vertical Water-Cooled Diesel Engine
Displacement3.455 L
Bore x Stroke100 mm x 110 mm
AspirationTurbocharged
