Y00R4782
1 */Vy97Qy<?
Fig.
I

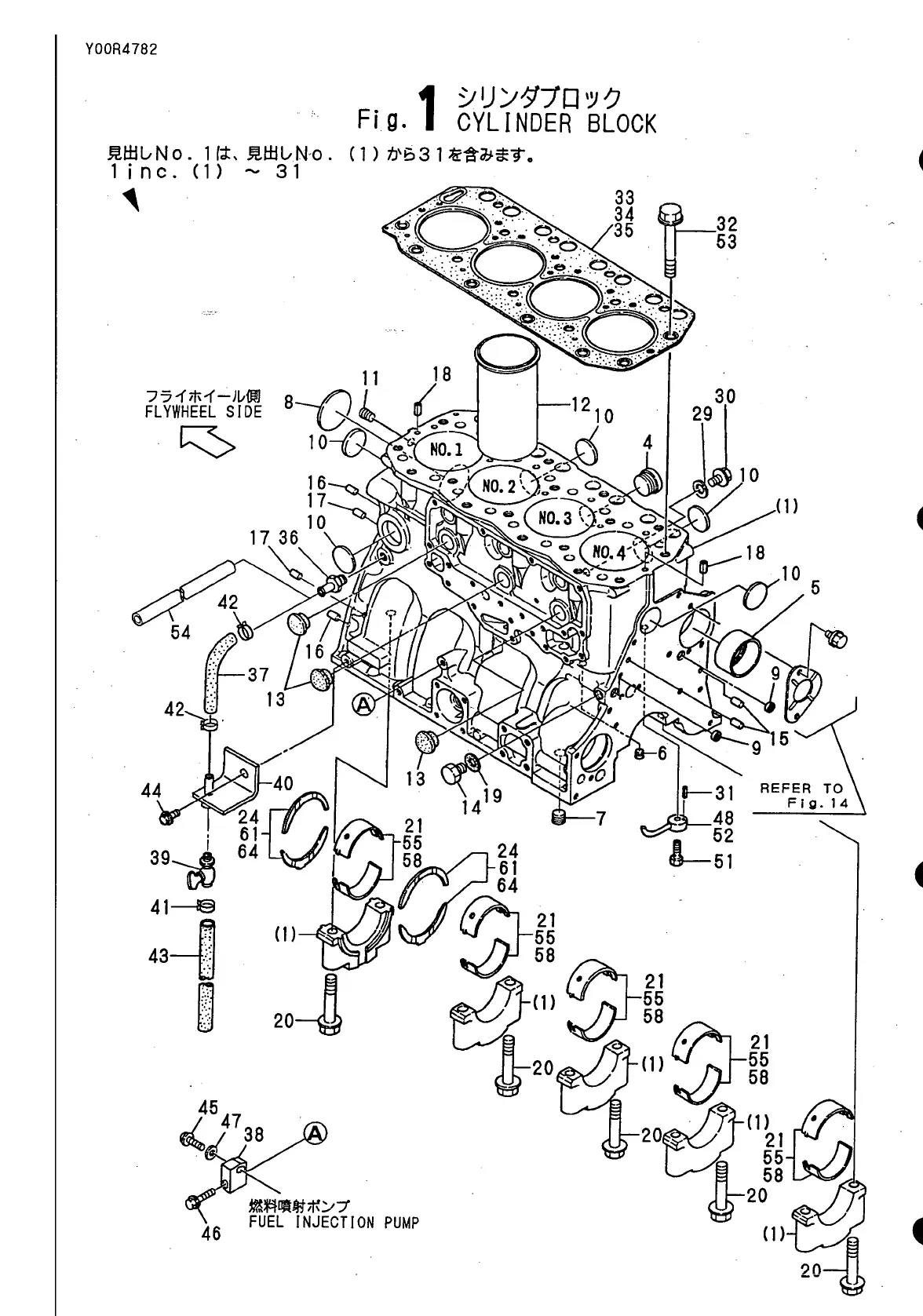

CYLINDER BLOCK
1 i n c . (1) ~ 3 1
FLYWHEEL
SIDE
1(1)^^1-55
55
58
46
FUEL
INJECTION
PUMP
20-

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yanmar 4LHA-STP and is the answer not in the manual?

Yanmar 4LHA-STP Specifications

General IconGeneral
Number of Cylinders4
Fuel SystemDirect Injection
Engine Type4-Stroke Vertical Water-Cooled Diesel Engine
Displacement3.455 L
Bore x Stroke100 mm x 110 mm
AspirationTurbocharged
