Yanmar 4LHA-STP User Manual

Y00R4782
5
7^>T-f>^7-S (4LHA-HT (Z) E (P) )

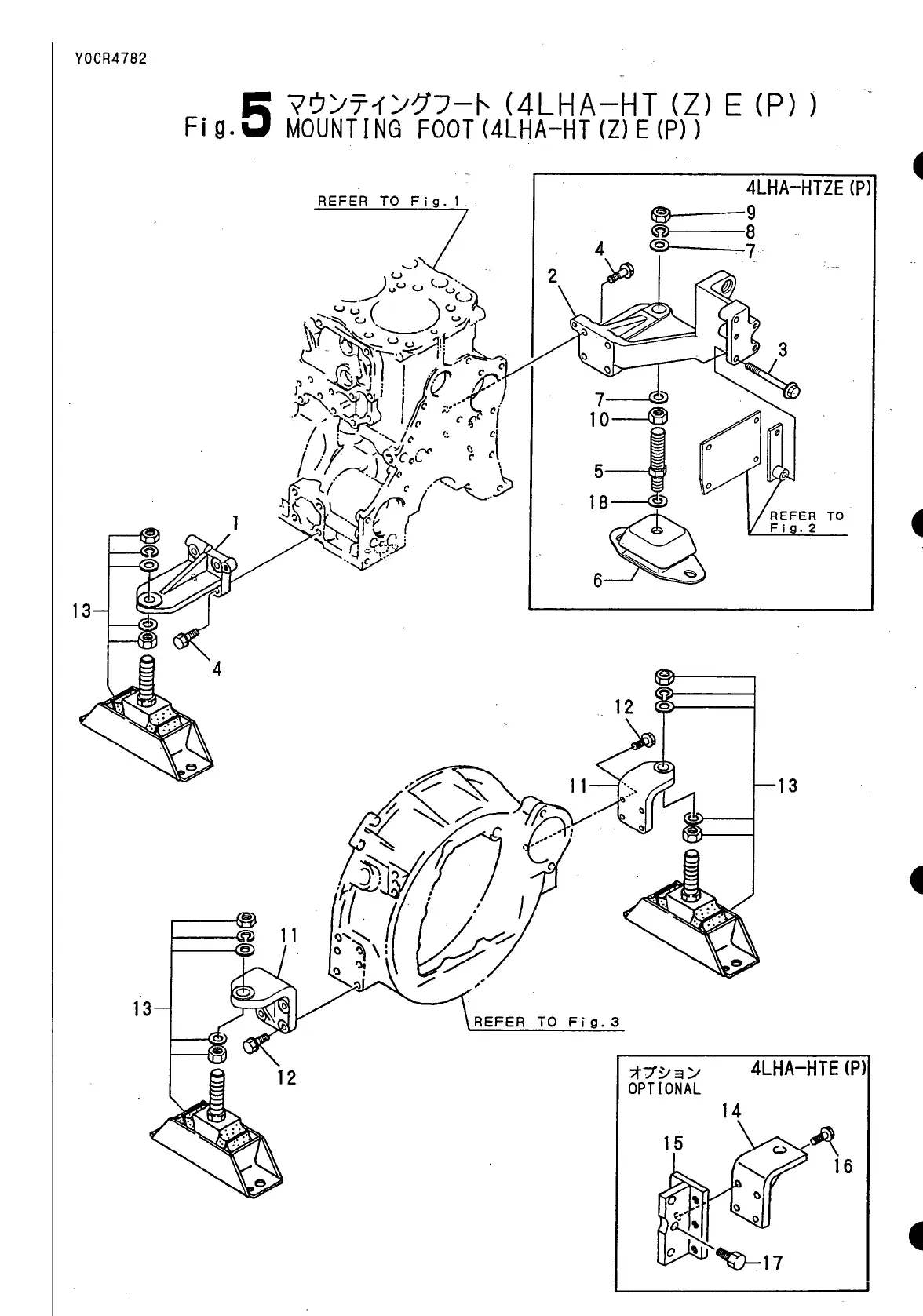

MOUNTING FOOT (4LHA-HT (Z) E (P))
REFER TO Fig.1
13-
13-
I <7A^
CeCC
/REFER TO
/ F i g • 2
•13
OPTIONAL
4LHA-HTE (P)
11^^17

Yanmar 4LHA-STP Specifications

General

Number of Cylinders	4
Fuel System	Direct Injection
Engine Type	4-Stroke Vertical Water-Cooled Diesel Engine
Displacement	3.455 L
Bore x Stroke	100 mm x 110 mm
Aspiration	Turbocharged
