Chapter 4 Intake and Exhaust System
1. Intake and Exhaust System
,4LHASeri6
C'

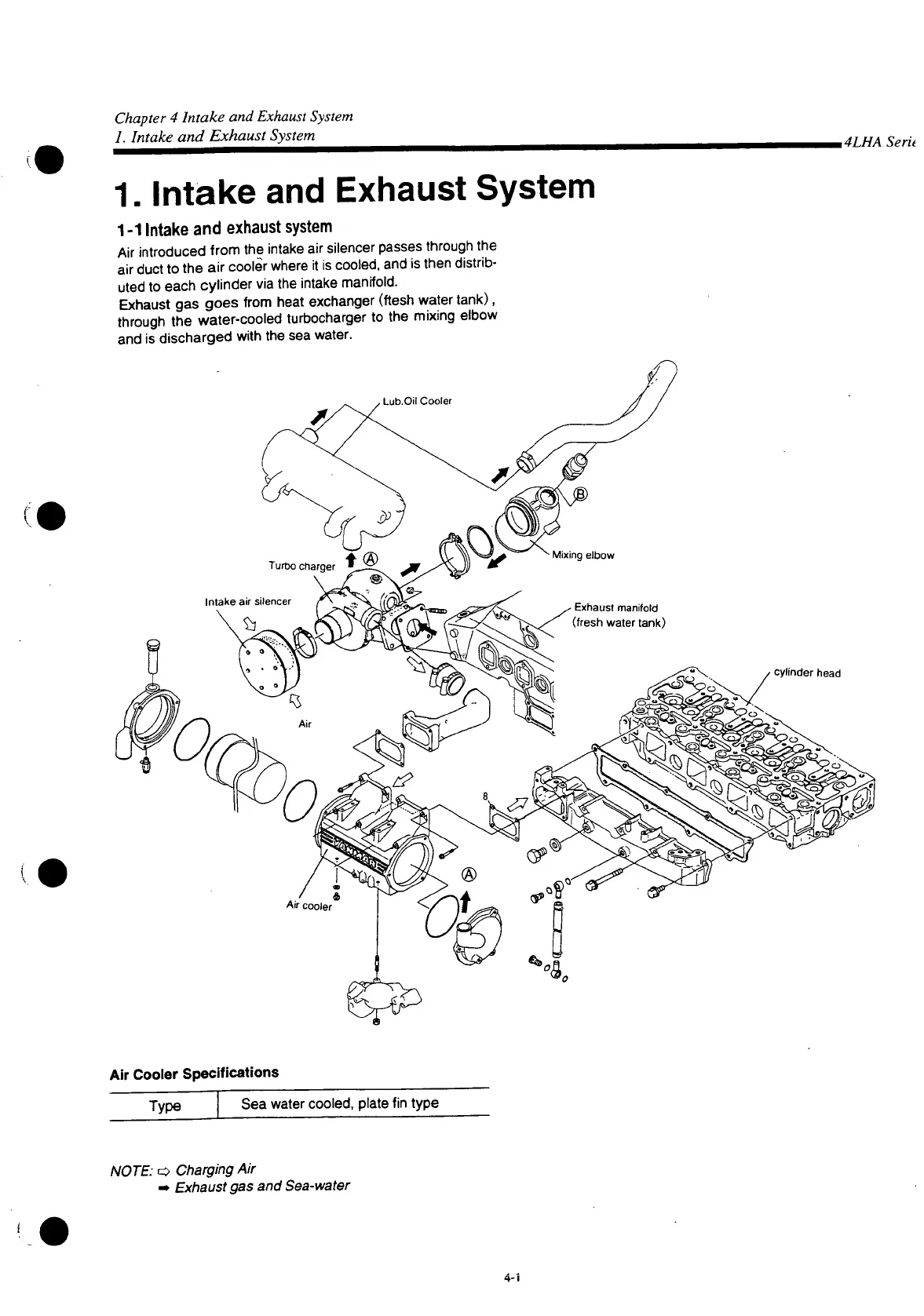

1. Intake and Exhaust System
1 -1 Intake and exhaust system
Air introduced from the intake air silencer passes through the
air duct to the air cooler where it is cooled, and is then distrib-
uted to each cylinder via the intake manifold.
Exhaust gas goes from heat exchanger (ftesh water tank),
through the water-cooled turbocharger to the mixing elbow
and is discharged with the sea water.
Air Cooler Specifications
Type
Sea water cooled, plate fin type
NOTE: o Charging Air
• Exhaust gas and Sea-water
4-i

Yanmar 4LHA-STP Specifications

General

Number of Cylinders	4
Fuel System	Direct Injection
Engine Type	4-Stroke Vertical Water-Cooled Diesel Engine
Displacement	3.455 L
Bore x Stroke	100 mm x 110 mm
Aspiration	Turbocharged
