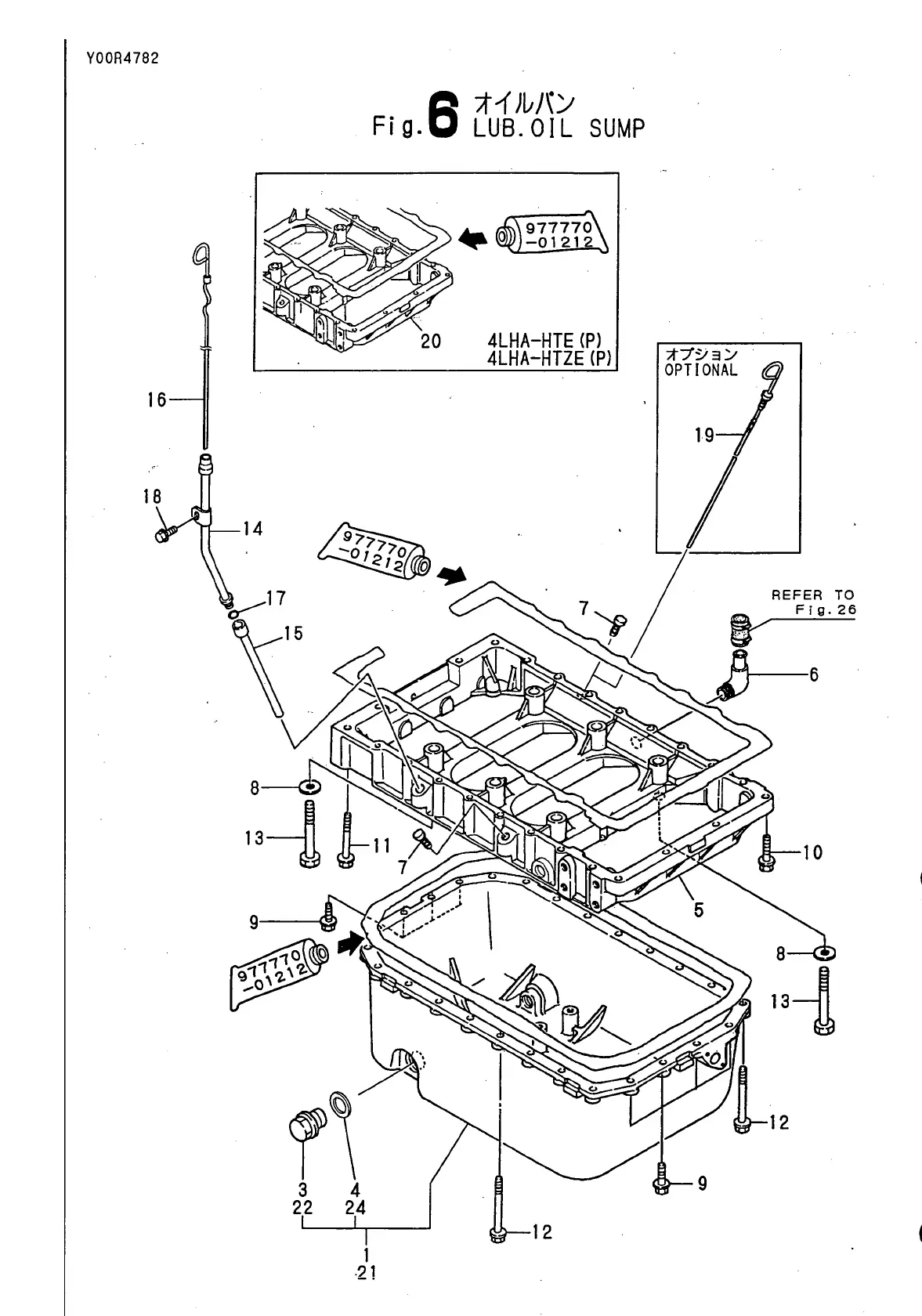

Y00R4782
LUB.OIL
SUMP
^97777o\
^1-01 21 2 N,
4LHA-HTE
(P)
4LHA-HTZE
(P)
OPTIONAL
^—12

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yanmar 4LHA-STP and is the answer not in the manual?

Yanmar 4LHA-STP Specifications

General IconGeneral
Number of Cylinders4
Fuel SystemDirect Injection
Engine Type4-Stroke Vertical Water-Cooled Diesel Engine
Displacement3.455 L
Bore x Stroke100 mm x 110 mm
AspirationTurbocharged
