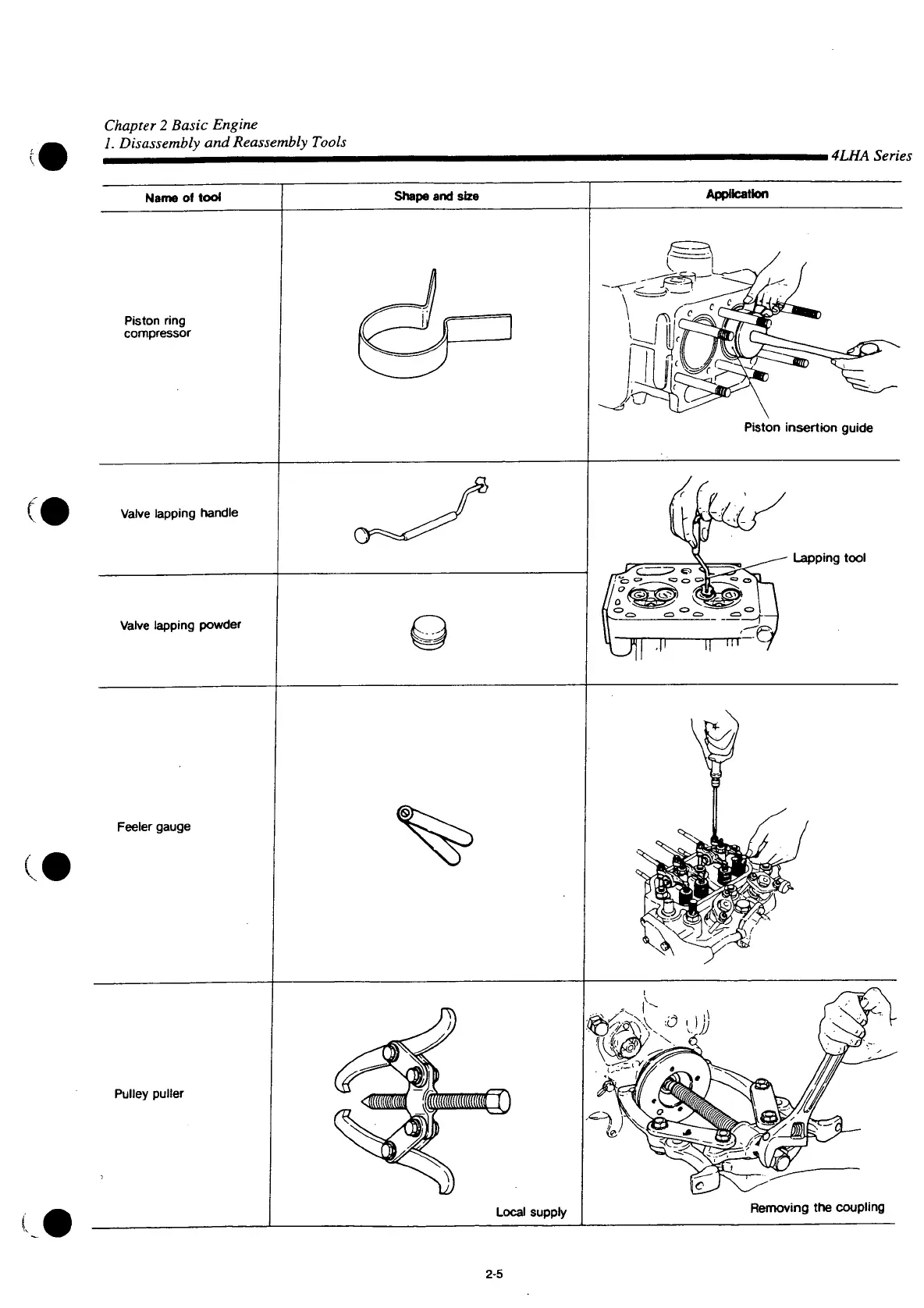

Chapter 2 Basic Engine
1. Disassembly and Reassembly Tools
.4LHA Series
Name
of
tool
Shape
and size
Application
Piston
ring
compressor
Valve
lapping handle
Valve
lapping powder
Piston
insertion guide
Lapping
tool
C'
Feeler
gauge
Pulley
puller
Local
supply
Removing
the coupling
2-5
