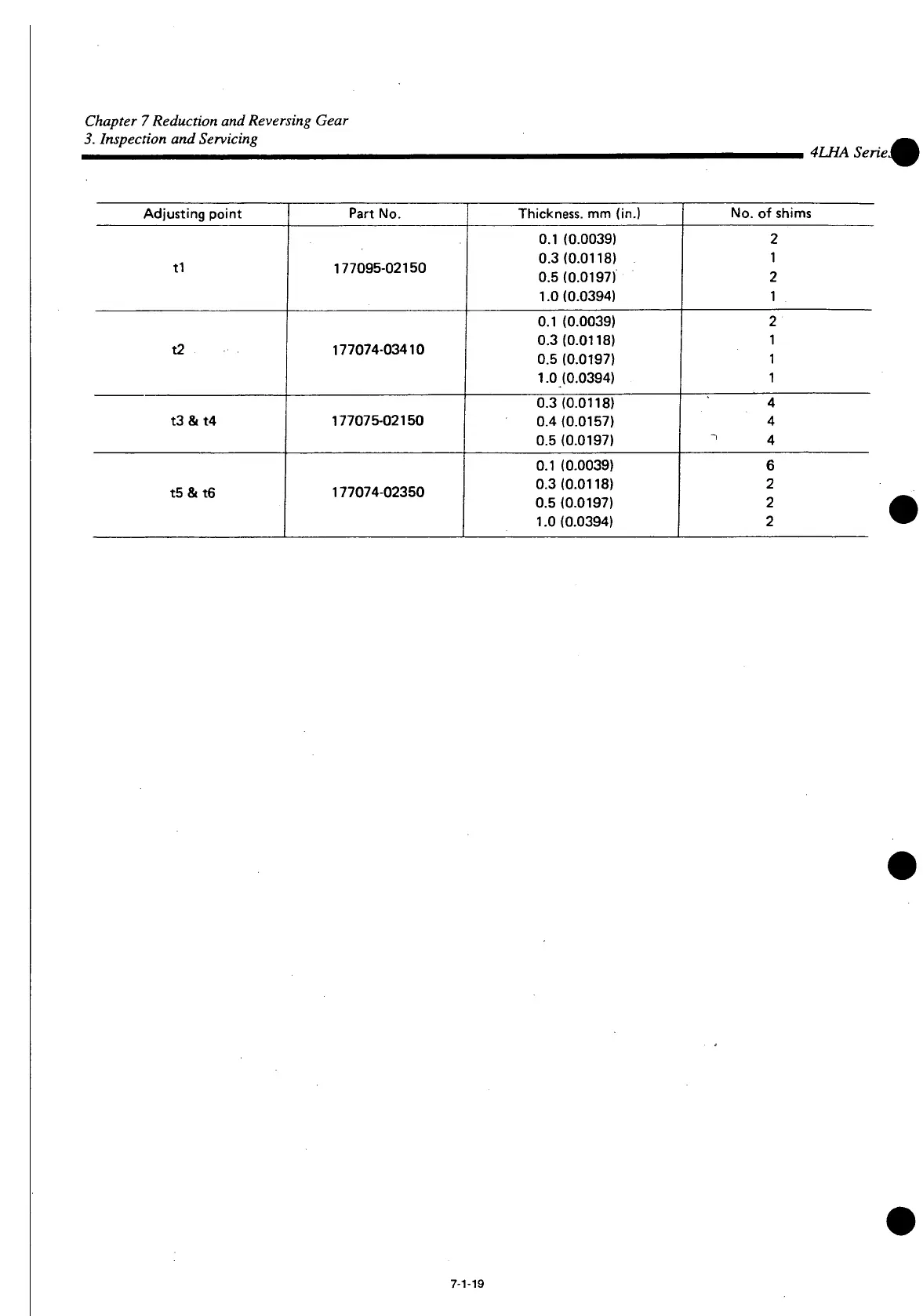

Chapter 7 Reduction and Reversing Gear
3. Inspection and Servicing
4LHA Seriei
Adjusting point Part No. Thickness, mm (in.)
No. of shims
tl
177095-02150
0.1 (0.0039)
0.3(0.0118)
0.5 (0.0197)
1.0 (0.0394)
2
1
2
1
t2 177074-03410
0.1 (0.0039)
0.3 (0.0118)
0.5 (0.0197)
1.0 (0.0394)
2
1
1
1
t3&t4 177075-02150
0.3 (0.0118)
0.4(0.0157)
0.5 (0.0197)
4
4
n
4
t5&t6
177074-02350
0.1 (0.0039)
0.3 (0.0118)
0.5 (0.0197)
1.0(0.0394)
6
2
2
2
7-1-19

Yanmar 4LHA-STP Specifications

General

Number of Cylinders	4
Fuel System	Direct Injection
Engine Type	4-Stroke Vertical Water-Cooled Diesel Engine
Displacement	3.455 L
Bore x Stroke	100 mm x 110 mm
Aspiration	Turbocharged
