Yanmar 4LHA-STP User Manual

Chapter 7 Reduction and Reversing Gear
5. Reassembly
4LHA Series

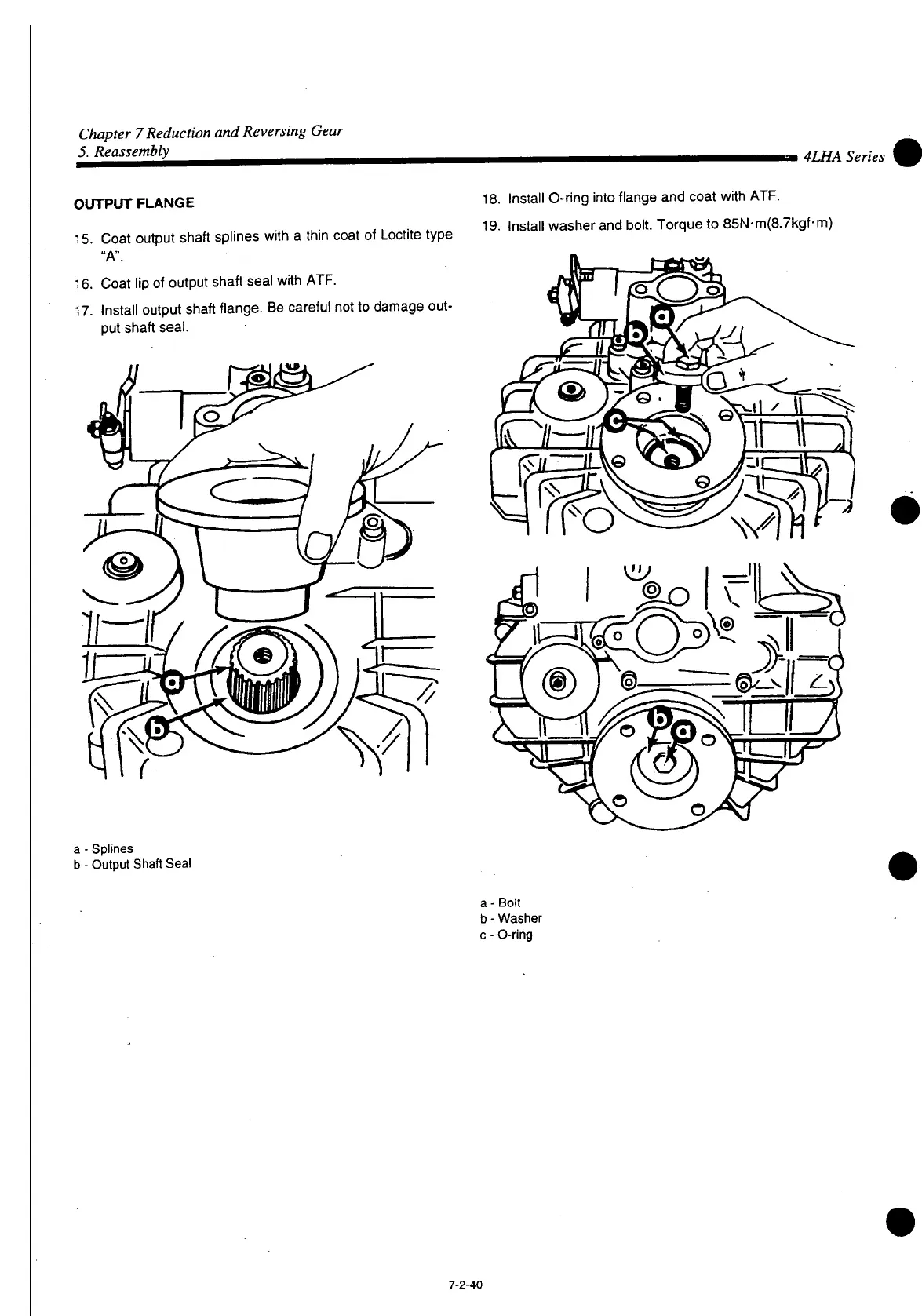

OUTPUT FLANGE
15. Coat output shaft splines with a thin coat of Loctite type
"A".
16. Coat lip of output shaft seal with ATF.
17. Install output shaft flange. Be careful not to damage out-
put shaft seal.
18. Install O-ring into flange and coat with ATF.
19. Install washer and bolt. Torque to 85N-m(8.7kgf-m)
a - Splines
b - Output Shaft Seal
a - Bolt
b - Washer
c - O-ring
7-2-40

Yanmar 4LHA-STP Specifications

General

Number of Cylinders	4
Fuel System	Direct Injection
Engine Type	4-Stroke Vertical Water-Cooled Diesel Engine
Displacement	3.455 L
Bore x Stroke	100 mm x 110 mm
Aspiration	Turbocharged
