Location of Labels
LOCATION OF LABELS
Figure 4-3 shows the location of regulatory and safety labels on Yanmar TNV series engines.

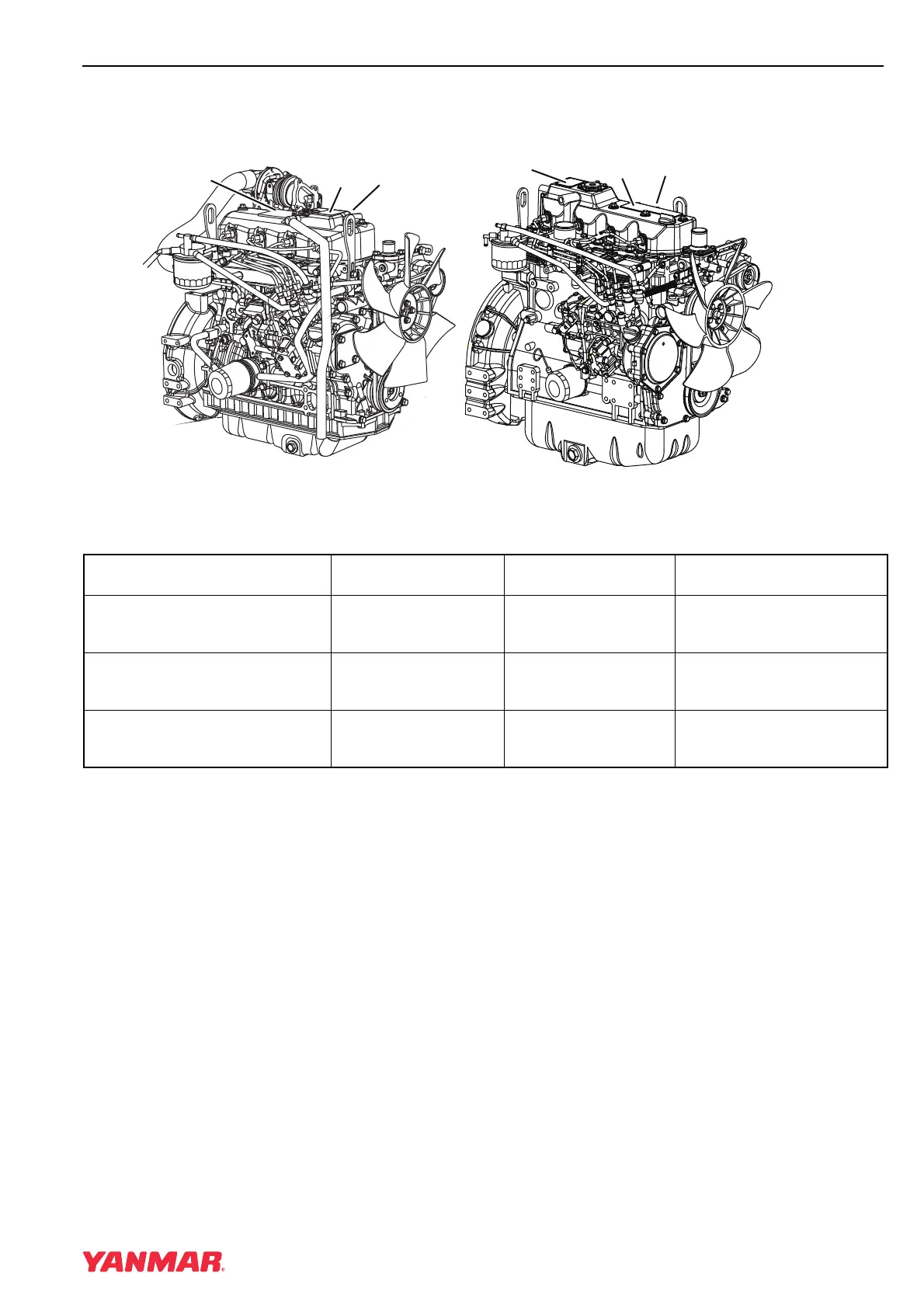

Figure 4-3
Location of labels/nameplates on direct injection model engines
Model Engine Nameplate
EPA/ARB Certification
Label
97/68/EC Emission Control
Label
3TNV82A,3TNV84,3TNV84T,3TNV88
3TNV82A-B,3TNV88-B,3TNV88-U
3TNV84T-B
On the top of the locker
arm cover(cooling fan end)
Figure 4-3 left, (4)
On the top of the locker
arm cover (flywheel end)
Figure 4-3 left, (1)
On the exhaust side of the locker
arm cover(near the flywheel)
Figure 4-3 left, (2)
4TNV84,4TNV88,4TNV84T
4TNV88-B,4TNV88-U,4TNV84T-Z
On the top of the locker
arm cover(cooling fan end)
Figure 4-3 left, (4)
On the top of the locker
arm cover(flywheel end)
Figure 4-3 left, (1)
On the exhaust side of the locker
arm cover(near the flywheel)
Figure 4-3 left, (1)
4TNV94L,4TNV98,4TNV98T
4TNV106,4TNV106T
4TNV98-Z,4TNV98-E,4TNV98T-Z
On the top of the locker
arm cover(flywheel end)
Figure 4-3 right, (4)
On the top of the locker
arm cover(center)
Figure 4-3 right, (1)
On the top of the locker arm
cover(fan end)
Figure 4-3 right, (3)
0000019A-01
(3)
(1)
(4)
(2)
(4)
(1)
