15. SERVICE THE ELECTRICAL SYSTEM
15-6
SA221/324/424 Operation Manual
■ Replace the Work Lights Bulb (Option)
1. Replace the Work Lights Bulb.
• For details, see "7. Safe Practices for Parking the
Tractor" on page 1-7.
2. Shut off the engine.
3. Chock all the tires safely and securely.
4. Allow the engine to cool down for several
minutes.
5. Remove the key.
6. Remove the four screws from the rear side of the
work lights case.
7. Remove the screw from the behind side of work
lights bulb and take off the cable.
8. Pull out the work lights bulb from the mirror case.
9. Disconnect the connector of work lights bulb.
10.Connect the new work lights bulb to the
connector.
11.Insert the work lights bulb into the mirror case.
12.Tighten the screw with the cable.
13.Set the mirror case on the work lights case.
14.Tighten the four screws on the work lights case.
15.Make sure the switch at backside of work lights is
turned on.
16.Turn the starter key switch to ON position.
17.Make sure the work light bulbs are functioning.

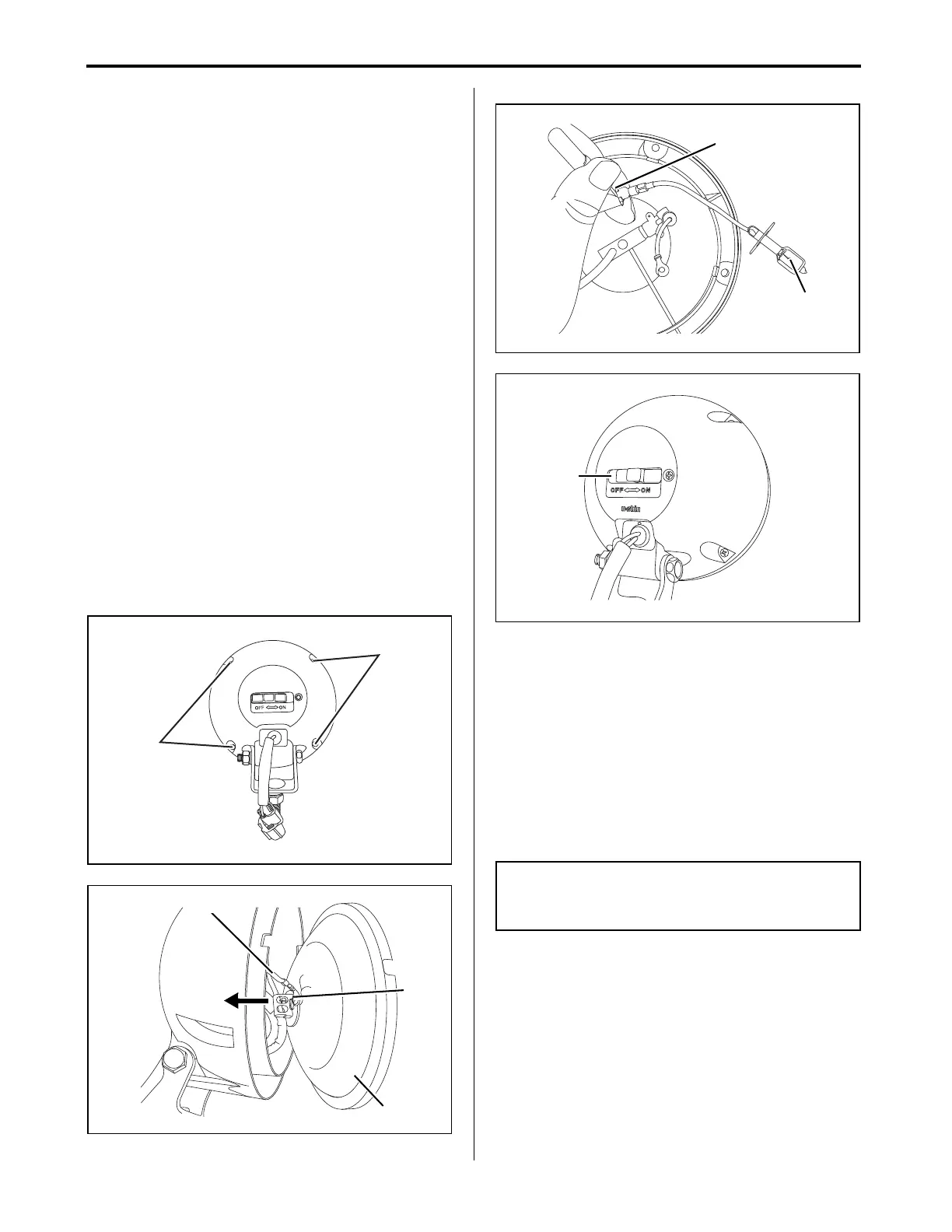

(A) Work lights assembly four screws
(B) Screw
(C) Cable
(D) Mirror case
(E) Connector
(F) Work lights bulb
(G) Work lights switch
■ Replace the Tail Lights Bulb
1. Park the tractor safely and securely.
• For details, see "7. Safe Practices for Parking the
Tractor" on page 1-7.
2. Shut off the engine.
3. Chock all the tires safely and securely.
4. Allow the engine to cool down for several
minutes.
5. Remove the key.
(A)
(A)
(D)
(C)
(B)
NOTE
●The tail lights can be serviced after removing the
rear lens assembly.
(F)
(E)
(G)
