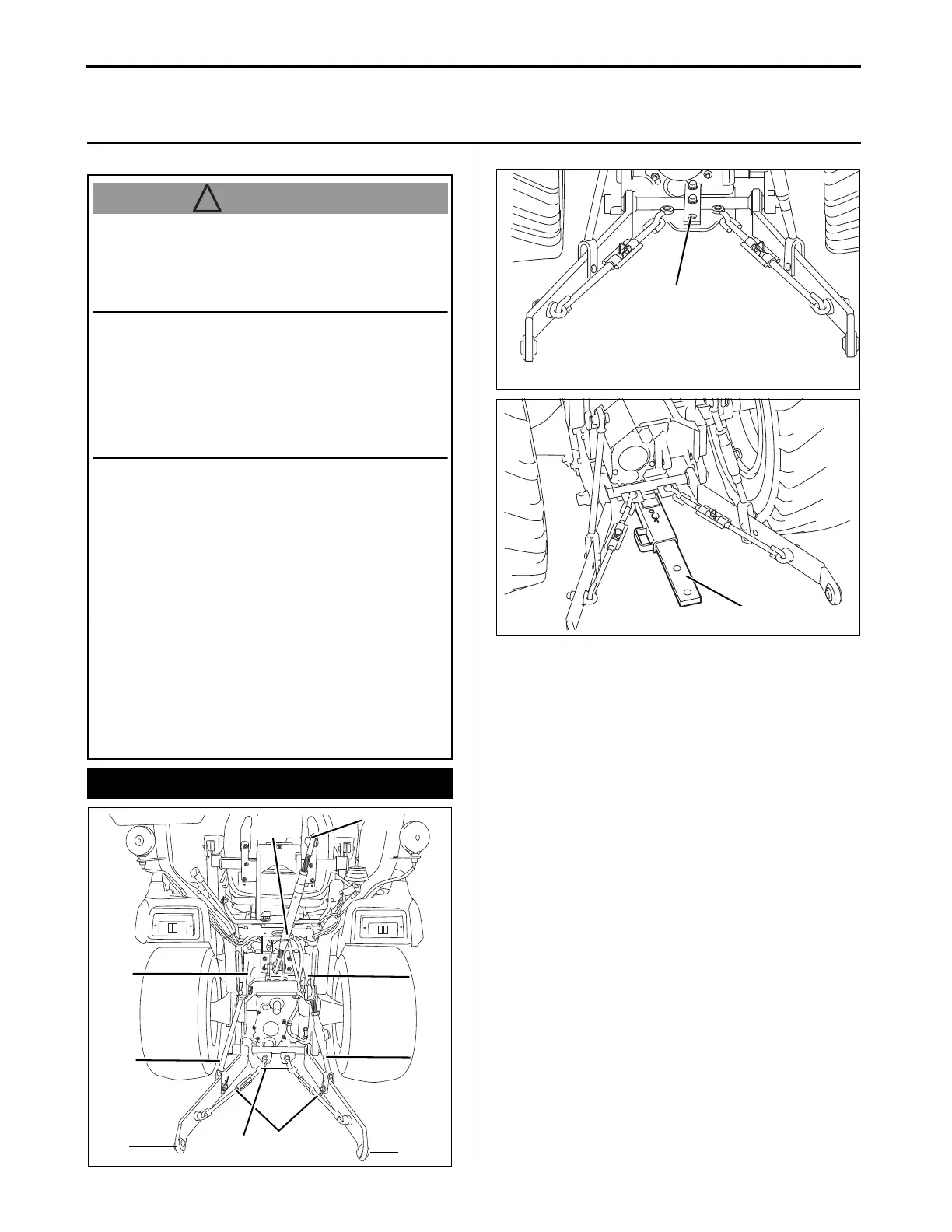

10. 3-POINT HITCH AND DRAWBAR
SA221/324/424 Operation Manual
10. 3-POINT HITCH AND DRAWBAR
(A) Top link hook
(B) Top link
(C) Left arm, Right arm
(D) Lift Link right
(E) Check chain (adjustable)
(F) Lower links
(G) Lift Link (non-adjustable) (left)
(H) Hitch Hole (SA221)
(I) Drawbar (SA324/424)
● When there is a 3-point hitch-mounted
implement:
• always install an appropriate weight to the
front of the tractor
● During transportation:
• place the 3-point hitch control lever in the
raised position
• lock the 3-point hitch control lever with the
position stop knob for the 3-point hitch
control lever
● Do not fully close the hydraulic flow control/
stop knob in order to keep any implements in
the raised position while the tractor is
traveling.
• completely closing the hydraulic flow
control/stop knob can damage the hydraulic
lift circuit
● Only use implements that are designed for
use with the 3-point hitch.
● Always use approved implements with the 3-
point hitch.
● Contact YOUR LOCAL YANMAR TRACTOR
DEALER for technical assistance.
1. 3-Point Hitch
! WARNING
(G)
(E)
(F)
(F)
(C)
(A)
(D)
(C)
(B)
(H, I)
(H)
(I)
