5. NAMES AND FUNCTIONS OF COMPONENTS
SA221/324/424 Operation Manual

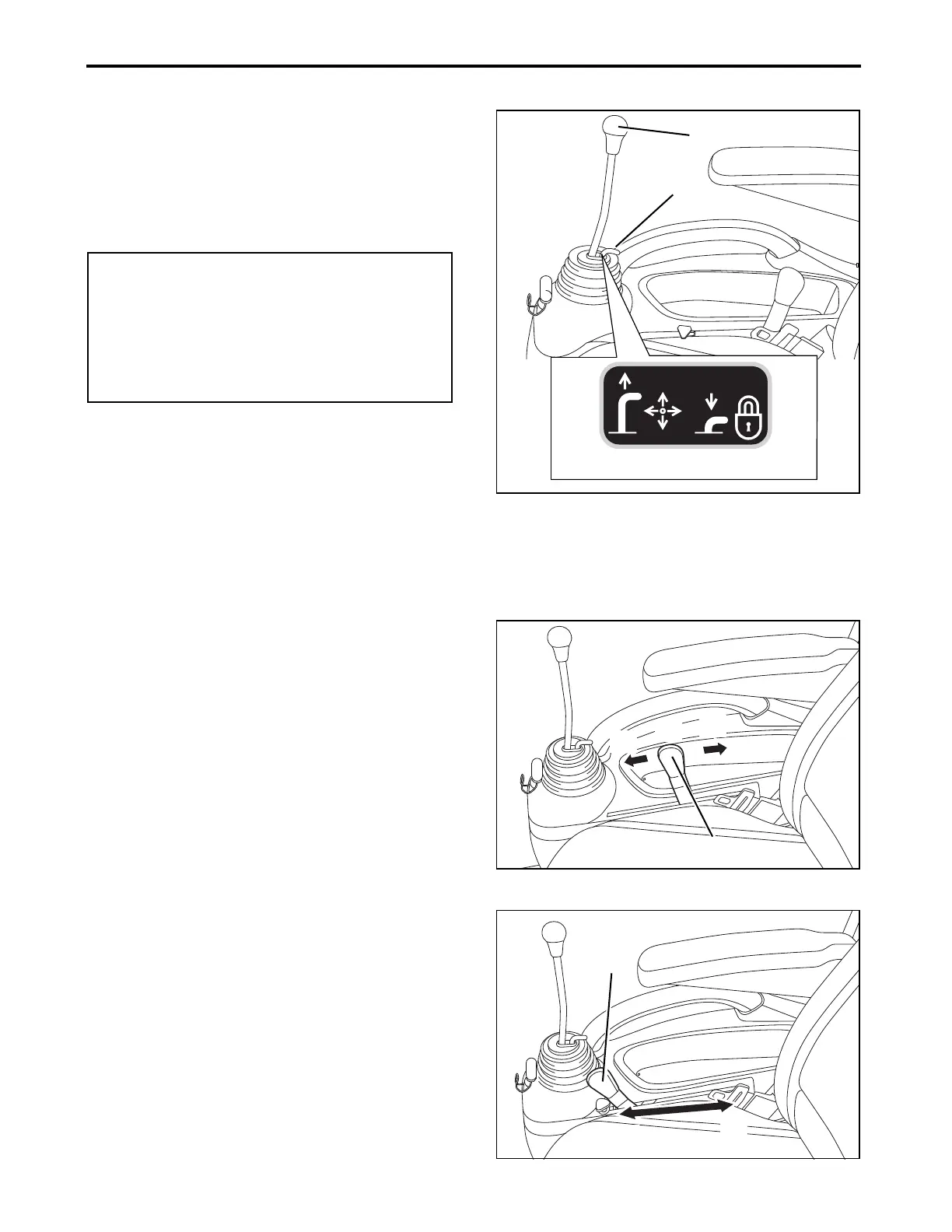

(6) Implement control lock lever
Lock the implement control lever to the N (neutral)
position.
(A) Implement control lever
(B) Implement control lever lock
(a) To unlock the implement control lever:
Pull up the implement control lever lock.
(b) To lock the implement control lever:
Push down the implement control lever lock when
the implement control lever is in the N (neutral)
position.
(7) 3-point hitch control lever
Control the height of the lower links.
(A) 3-point hitch control lever
(a) Move the 3-point hitch control lever forward to
lower the implement.
(b) Move the 3-point hitch control lever backward to
raise the implement.
(c) Neutral (SA221)
<SA221>
<SA324/424>
IMPORTANT
●Avoid operating the implement control lever when
the implement control lever is locked.
●To confirm that the implement control lever has
been locked with the implement control lever lock:
• move the implement control lever with a light
force to ensure that the lever is securely locked.
(A)
(B)
(b)
(a)
(A)
(c)
(a)
(b)
(A)
(a)
(b)
