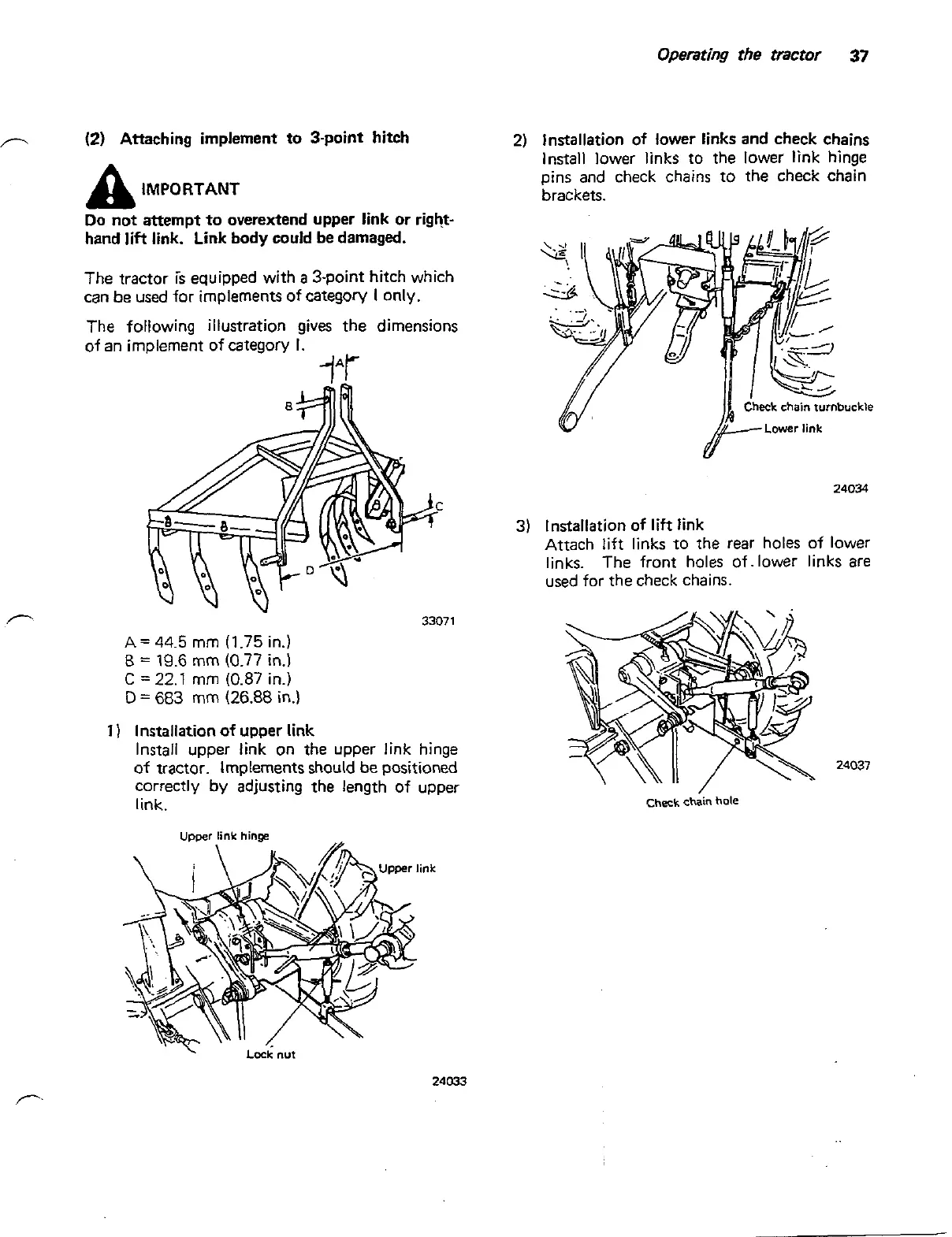

Operating the tractor
37
(2)
Attaching implement to 3-point hitch
A
IMPORTANT
Do not attempt to overextend upper link or right-
hand lift link. Link body could be damaged.
The tractor is equipped with
a
3-point hitch which
can be used for implements of
categoq
I
only.
The following illustration gives the dimensions
of an implement of category
I.
A
=
44.5
mm
(1.75
in.)
8
=
19.6
rnrn (0.77 in.)
C
=
22.1
mm (0.87 in.)
D
=
683
rnrn
(26.88
in.)
1
)
Installation of upper link
Install upper link on the upper link hinge
of tractor. Implements should be positioned
correctly by adjusting the length of upper
link.
Upper
link
hinge
..
2)
lnstallation of lower links and check chains
Install lower links to the lower link hinge
pins and check chains to the check chain
brackets.
3)
Installation
of
lift link
Attach lift links to the rear holes of lower
links. The front holes of. lower links are
used for the check chains.
check
chain
hole
\
nut
