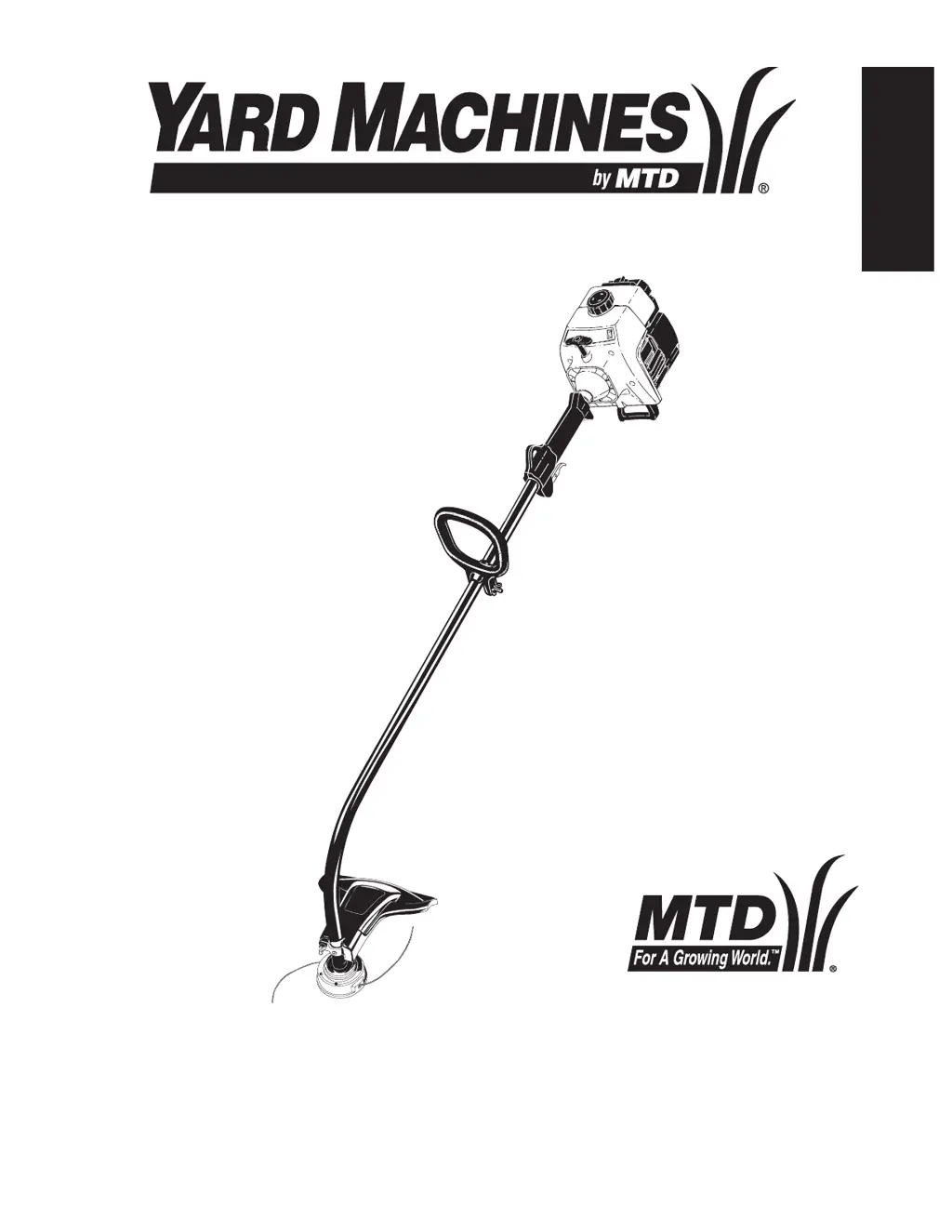

Operator’s Manual
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
PRINTED IN U.S.A.
PART NO. 769-00313 (12/02)
English
Curved Shaft,
2-Cycle Trimmer
Model
2800M

Table of Contents

Questions and Answers

  • B
    brenda87Aug 16, 2025
    How to fix Yard Machines 2800M when cutting attachment will not advance line?
    • A
      Alison Ponce MDAug 16, 2025
      If the cutting attachment on your Yard Machines Trimmer won't advance the line, there are several things to check: * First, stop the engine and clean the cutting attachment, as it might be bound with grass. * If the cutting attachment is out of line, refill it with a new line. * A bound inner reel may require you to replace it. * Also, a dirty cutting head may be the problem, so clean the inner reel and outer spool. * If the line is welded, disassemble, remove the welded section, and rewind it. * If the line was twisted when refilled, disassemble and rewind the line. * Finally, if not enough line is exposed, push the bump knob and pull out line until 4 inches (102 mm) of line is outside of the cutting attachment.
  • E
    Emily CainAug 19, 2025
    Why does my Yard Machines Trimmer engine lack power or stalls when cutting?
    • D
      Donna RamosAug 20, 2025
      If your Yard Machines Trimmer engine lacks power or stalls when cutting, it could be due to: * Old or improperly mixed fuel. Drain the gas tank and add fresh fuel mixture. * A fouled spark plug. Replace or clean the spark plug. * A plugged spark arrestor. Clean or replace the spark arrestor. * Improper carburetor adjustment. It is recommended to take your trimmer to an authorized service dealer for an adjustment.
  • B
    Billy HamiltonAug 22, 2025
    What to do if Yard Machines Trimmer engine will not idle?
    • A
      Andrew WaltonAug 22, 2025
      If your Yard Machines Trimmer engine will not idle, check these potential issues: * The air filter may be plugged; replace or clean it. * The fuel may be old or improperly mixed; drain the gas tank and add a fresh fuel mixture. * The carburetor may need adjustment; refer to the Carburetor Adjustments section for instructions.
  • M
    Maureen TorresAug 26, 2025
    What causes Yard Machines Trimmer cutting line advances uncontrollably?
    • M
      Mrs. Susan ContrerasAug 26, 2025
      If the cutting line advances uncontrollably on your Yard Machines Trimmer, it might be due to oil, cleaner, or lubricant in the cutting head. Clean and thoroughly dry the cutting head to resolve this issue.
  • K
    Kristin MackAug 28, 2025
    Why Yard Machines 2800M engine will not start?
    • J
      jonesbrookeAug 28, 2025
      If your Yard Machines Trimmer engine won't start, several issues could be the cause. First, make sure the On/Off control is in the ON position. Also, check if the fuel tank is empty and fill it with properly-mixed fuel if needed. Ensure you've pressed the primer bulb fully and slowly 10 times. If the engine is flooded, use the starting procedure with the choke lever in the RUN position. Old or improperly mixed fuel can also be a culprit, so drain the gas tank and add fresh fuel mixture. A fouled spark plug or a plugged spark arrestor might also be the reason; in that case, replace or clean the spark plug or clean or replace the spark arrestor.
  • C
    Christopher BeckAug 31, 2025
    What to do if Yard Machines 2800M engine lacks power or stalls when cutting?
    • K
      kimberlykramerAug 31, 2025
      If your Yard Machines Trimmer engine lacks power or stalls when cutting, the issue might be due to old or improperly mixed fuel. In this case, drain the gas tank and add a fresh fuel mixture. Another potential cause is improper carburetor adjustment, which requires you to take it to an authorized service dealer for adjustment. Additionally, a fouled spark plug or a plugged spark arrestor could be the problem, so replace or clean the spark plug, or clean or replace the spark arrestor.
  • C
    Crystal MasonSep 3, 2025
    Why Yard Machines 2800M engine will not accelerate?
    • G
      ginaguerreroSep 3, 2025
      If your Yard Machines Trimmer engine won't accelerate, consider these possible causes: old or improperly mixed fuel, which means you should drain the gas tank and add fresh fuel mixture. It could also be due to improper carburetor adjustment, which requires you to take the trimmer to an authorized service dealer for adjustment. Check if the cutting attachment is bound with grass and stop the engine to clean it. A dirty air filter or a plugged spark arrestor might also be the reason, so clean or replace the air filter or the spark arrestor.
  • C
    codomSep 6, 2025
    Why Yard Machines Trimmer engine will not idle?
    • M
      Michael GreenSep 6, 2025
      If your Yard Machines Trimmer engine won't idle, it could be due to a plugged air filter, in which case you should replace or clean the air filter. Another cause might be old or improperly mixed fuel; drain the gas tank and add fresh fuel mixture. Finally, improper carburetor adjustment can also cause this issue and you should adjust it according to the Carburetor Adjustment section.
  • A
    Andrea ThomasSep 9, 2025
    What to do if Yard Machines Trimmer cutting line advances wildly?
    • J
      Julia HerreraSep 10, 2025
      If the cutting line on your Yard Machines Trimmer advances wildly, it's likely due to oil in the cutting head. Clean the cutting head attachment to resolve this issue.
  • M
    melissa27Sep 12, 2025
    Why Yard Machines Trimmer cutting attachment will not advance?
    • A
      Amy BeanSep 12, 2025
      If the cutting attachment on your Yard Machines Trimmer will not advance, consider the following: * Stop the engine and clean the cutting attachment if it is bound with grass. * Refill with new line if the cutting attachment line is out of line. * Replace the inner reel if it is bound up. * Clean the inner reel and outer spool if the cutting head is dirty. * Disassemble, remove the welded section, and rewind if the line is welded. * Disassemble and rewind the line if the line is twisted when refilled. * Push the bump knob and pull out line until 4 inches (102 mm) of line is outside of the cutting attachment if not enough line is exposed.

Summary

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

SECTION 1 a: RULES FOR SAFE OPERATION

Rules for safe operation and precautions before using the trimmer, including adult guidance.

Safety Warnings for Gas Trimmers

Precautions for handling flammable gasoline and preventing ignition when fueling the trimmer.

While Operating

Guidelines for safe operation, including ventilation, protective gear, and proper handling.

Other Safety Warnings

Safety advice for storing, transporting, and cleaning the trimmer, plus general precautions.

SECTION 1 b: SAFETY & INTERNATIONAL SYMBOLS

SECTION 2: KNOW YOUR UNIT

SECTION 3: ASSEMBLY INSTRUCTIONS

Installing and Adjusting the D-handle

Instructions for attaching and positioning the D-handle for optimal grip and control.

Installing the Cutting Attachment Shield

Guide on how to correctly install the protective cutting attachment shield.

SECTION 4: OIL AND FUEL INFORMATION

Oil and Fuel Mixing Instructions

Procedure for mixing unleaded gasoline with 2-cycle oil at a 40:1 ratio.

Using Blended Fuels

Precautions and recommendations for using blended fuels containing ethanol or methanol.

Using Fuel Additives

Guidance on using fuel additives and the recommended 2-cycle oil.

SECTION 5: STARTING;STOPPING INSTRUCTIONS

Starting Instructions

Step-by-step procedure for starting the trimmer, including primer bulb and choke usage.

Stopping Instructions

Simple procedure for safely shutting down the trimmer engine.

SECTION 6: OPERATING INSTRUCTIONS

Holding the Trimmer

Correct posture and hand placement for operating the trimmer safely and efficiently.

Adjusting Trimming Line Length

Method for extending the trimmer line using the bump head mechanism.

Tips for Best Trimming Results

Techniques and advice for optimal grass cutting and trimming performance.

Decorative Trimming

Technique for performing decorative trimming around trees, fences, and posts.

SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

Maintenance Schedule

Recommended maintenance tasks and their frequencies for optimal unit upkeep.

Line Installation

Instructions for winding and installing trimming line onto the spool for various types.

Air Filter Maintenance

Procedures for cleaning and maintaining the air filter for optimal engine performance.

Spark Arrestor Maintenance

Steps for inspecting and cleaning the spark arrestor to prevent fire hazards.

Carburetor Adjustment

Guide on adjusting the idle speed screw for smooth engine idling.

Replacing the Spark Plug

Instructions for removing, checking, and replacing the spark plug.

Long Term Storage

Procedure for preparing the trimmer for extended storage to prevent damage.

Transporting

Safety guidelines and steps for transporting the trimmer securely.

Accessories;Replacement Parts

List of available replacement parts and accessories for the trimmer.

SECTION 8: TROUBLESHOOTING GUIDE

Troubleshooting Common Issues

Guide to diagnosing and resolving common problems like engine not starting or stalling.

SECTION 9: SPECIFICATIONS

Technical Specifications Overview

Detailed specifications including engine type, RPM, dimensions, and weight.

EPA Emission Control Warranty Statement

Your Warranty Rights and Obligations

Details on owner responsibilities and MTD's warranty coverage for emission-related parts.

Manufacturers Warranty Coverage

Terms of the warranty, including coverage periods, exclusions, and claim procedures.

MANUFACTURERS LIMITED WARRANTY

HOW TO OBTAIN SERVICE

Instructions on how to get warranty service and locate an authorized dealer.

Warranty Exclusions

Items and conditions not covered by the manufacturer's limited warranty.

How State Law Relates to this Warranty

Explanation of how state laws affect warranty rights and limitations.

Yard Machines 2800M Specifications

General IconGeneral
BrandYard Machines
Model2800M
CategoryTrimmer
LanguageEnglish
