Yardistry AVERY - Step 11: Attach Gable Ends

33 support@yardistrystructures.com
Avery Inst 7 - Attach Gable Ends
Avery Inst 7 - Attach Gable Ends

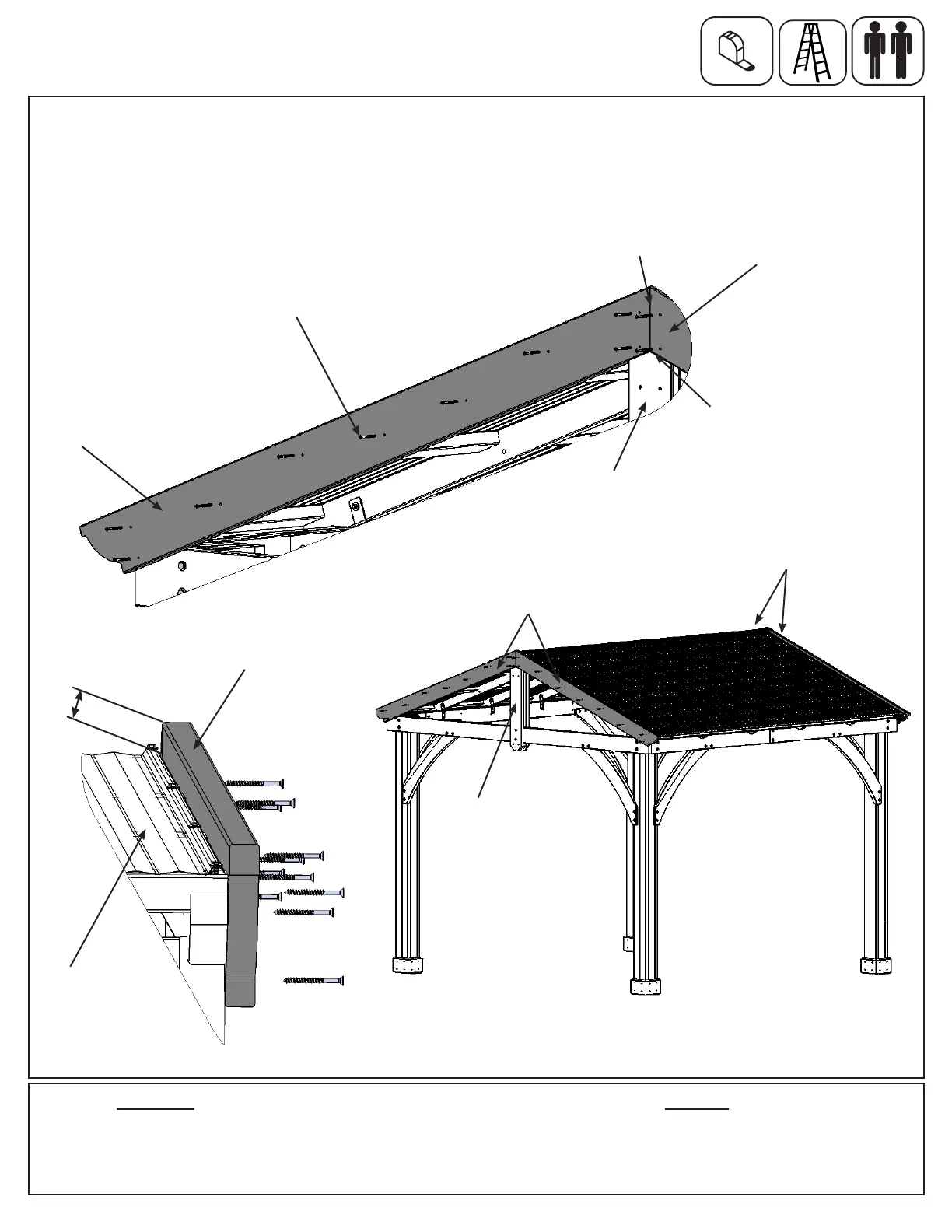

A: On one side of the assembly place two (415) Gable Ends against the outside (412) Rafters so the peaks
meet in the centre and they are tight and ush to the top and edge of (409) End Gable Centre Front. Top of (415)
Gable End to top of Roof Panel should measure 7/8” all along the each (415) Gable End. Attach with nine #8 x
1-3/4” Wood Screws per (415) Gable End. (g. 11.1, 11.2 and 11.3)
B: Repeat for the other side of the assembly.
Fig. 11.1
Flush
and Tight
Hardware
36 x #8 x 1-3/4” Wood Screw
Step 11: Attach Gable Ends
Fig. 11.2
Wood Parts
4 x (415) Gable End 25.4 x 139.7 x 1946.3 mm (1 x 5-1/2 x 76-5/8”)
(415)
Gable End
#8 x 1-3/4” Wood Screws
(9 per Gable End)
(415)
Gable End
(415)
Gable End
(415)
Gable End
Tight
(409) End
Gable Centre
Front
(409) End
Gable Centre
Front
7/8”
(415)
Gable End
Roof Panel
