Yardistry AVERY - Step 12: Attach Gable Gussets

34 support@yardistrystructures.com
Avery Inst 8 - Attach Gable Gussets
Avery Inst 8 - Attach Gable Gussets
Hardware
8 x #8 x 1-3/4” Wood Screw
4 x #8 x 2-1/2” Wood Screw
4 x #10 x 4” Wood Screw

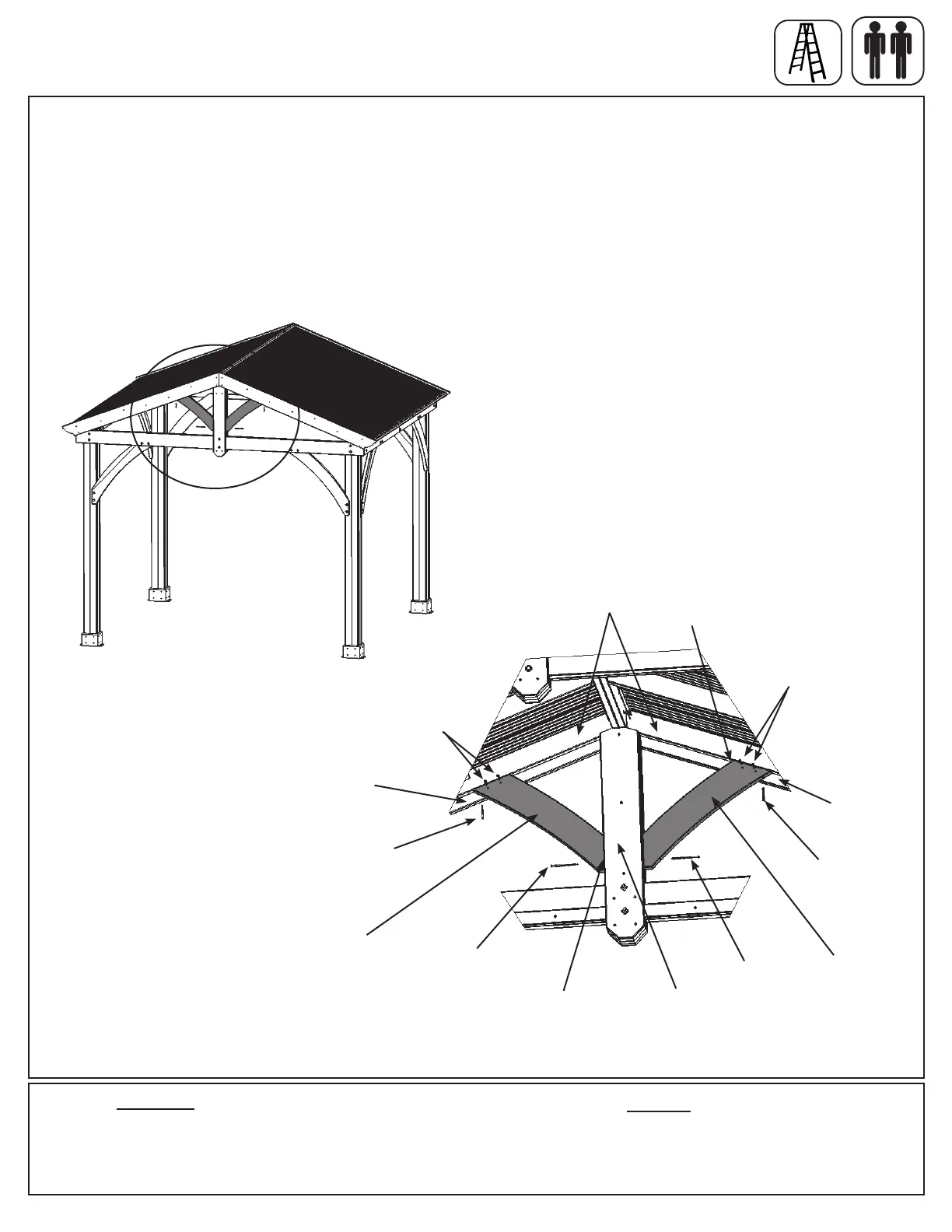

A: From inside the assembly place one (414) Gable Gusset on each side of (406) Gable Centre Back so it is
resting on (415) Gable End, ush to inside face of (406) Gable Centre Back and tight and ush to (412) Rafter.
(g. 12.1 and 12.2)
B: Attach each (414) Gable Gusset to (415) Gable End with two #8 x 1-3/4” Wood Screws per gusset and to
(406) Gable Centre Back with one #10 x 4” Wood Screw per gusset. (g. 12.1 and 12.2)
C: Attach each (414) Gable Gusset to (412) Rafter with one #8 x 2-1/2” Wood Screw per gusset from the edge of
the gusset into the rafter. (g. 12.1 and 12.2)
#10 x 4”
Wood Screw
Fig. 12.1
Fig. 12.2
#8 x1-3/4”
Wood
Screw
#8 x1-3/4”
Wood Screw
Step 12: Attach Gable Gussets
Wood Parts
4 x (414) Gable Gusset 31.8 x 133.4 x 580.1 mm (1-1/4 x 5-1/4 x 22-27/32”)
#10 x 4”
Wood Screw
#8 x2-1/2”
Wood Screw
#8 x2-1/2”
Wood
Screw
Flush
and Tight
(415)
Gable
End
(415)
Gable
End
(406) End Gable
Centre Back
(412)
Rafter
(414)
Gable
Gusset
(414)
Gable
Gusset
Flush
Inside View
