Yardistry CAROLINA - Part Identification

8 support@yardistrystructures.com
19.1 x 133.4 x 190.5mm (3/4 x 5-1/4 x 7-1/2")
16pc. (422) Plinth
Y50131-422
(1-3/8 x 7-1/2 x 39-15/16")
4pc. (705) Gusset Right 34.9 x 190.5 x 1015mm
Y70131-705

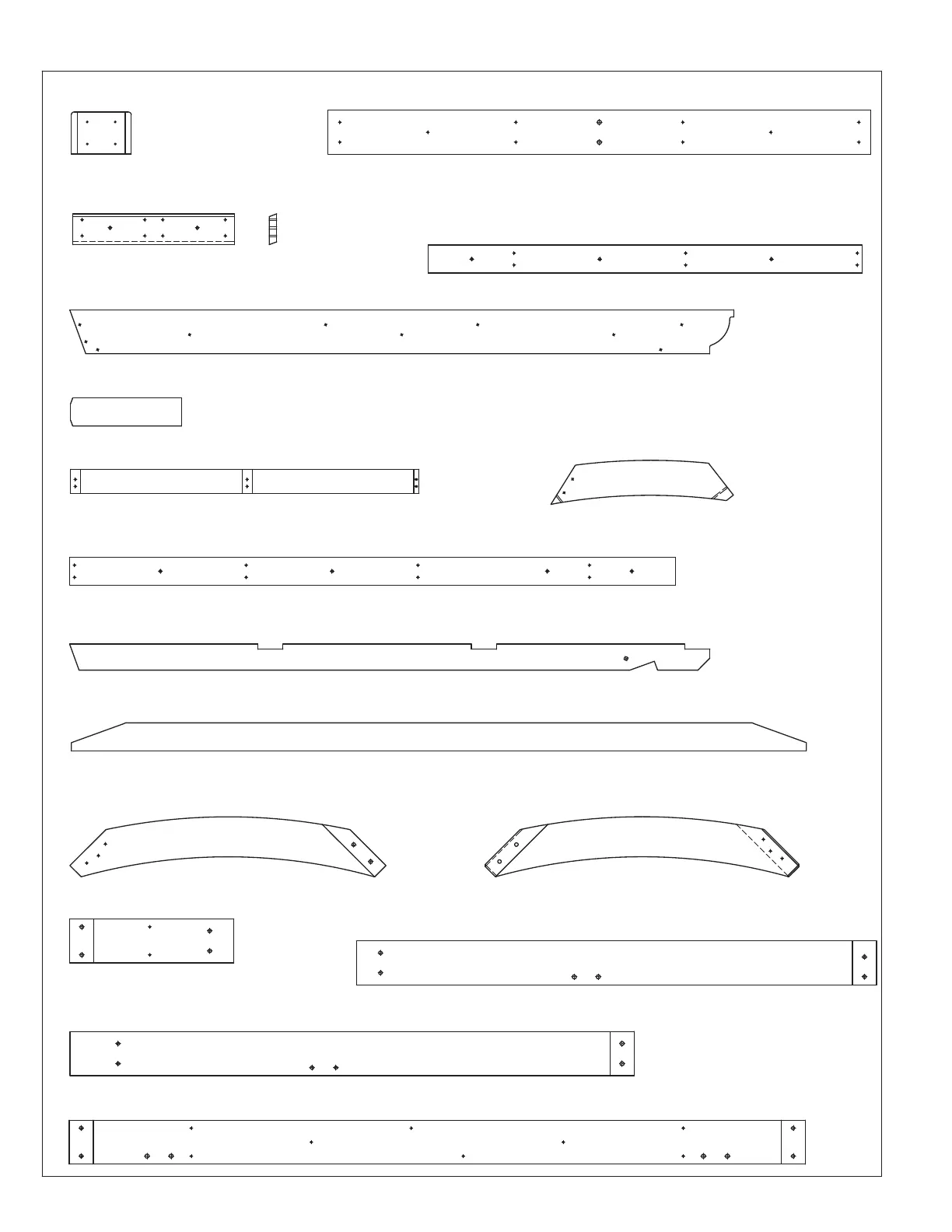

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
(1-3/8 x 7-1/2 x 39-15/16")
4pc. (706) Gusset Left 34.9 x 190.5 x 1015mm
Y70131-706
5pc. (416) Tie 31.8 x 88.9 x 2333.6mm (1-1/4 x 3-1/2 x 91-7/8")
Y50131-416
5pc. (417) Tie Brace 31.8 x 88.9 x 352.6mm (1-1/4 x 3-1/2 x 13-7/8")
Y50131-417
(1-1/4 x 5-1/4 x 22-27/32")
4pc. (414) Gable Gusset 31.8 x 133.4 x 580.1mm
Y50131-414
4pc. (474) Gable Beam 38.1 x 139.7 x 1790.7mm (1½ x 5½ x 70½")
Y50131-474
4pc. (475) Outside Beam 38.1 x 139.7 x 1651mm (1½ x 5½ x 65")
(Y50131-475)
2pc. (472) Inside Centre Beam 92” 38.1 x 139.7 x 2336.8mm (1½ x 5½ x 92")
Y50131-472
4pc. (473) Inside End Beam 38.1 x 139.7 x 520.7mm (1½ x 5½ x 20½")
Y50131-473
14pc. (468) Rafter 31.8 x 82.6 x 2033mm (1¼ x 3¼ x 80-3/64")
Y50131-468
2pc. (467) Rafter Top 25.4 x 88.9 x 1923.6mm (1 x 3½ x -75-47/64")
Y50131-467
Y50131-466
6pc. (466) Short Strap 31.8 x 76.2 x 1106.4mm (1¼ x 3 x 43-9/16")
2pc. (476) Gusset Support 25.4 x 139.7 x 1724mm (1 x 5½ x 67-7/8")
Y50131-476
4pc. (470) Rafter Brace 25.4 x 97.6 x 513.2mm (1 x 3-27/32 x 20-13/64)
Y50131-470
2pc. (469) Rafter Top Short 25.4 x 88.9 x 1378.3mm (1 x 3½ x 54-17/64mm)
Y50131-469
4pc. (471) Gable End 25.4 x 139.7 x 2108.3mm (1 x 5½ x 83")
Y50131-471
